Avigilon 2.0C-H6A-D1 - LED, Ethernet and Audio Switch View; Bottom View

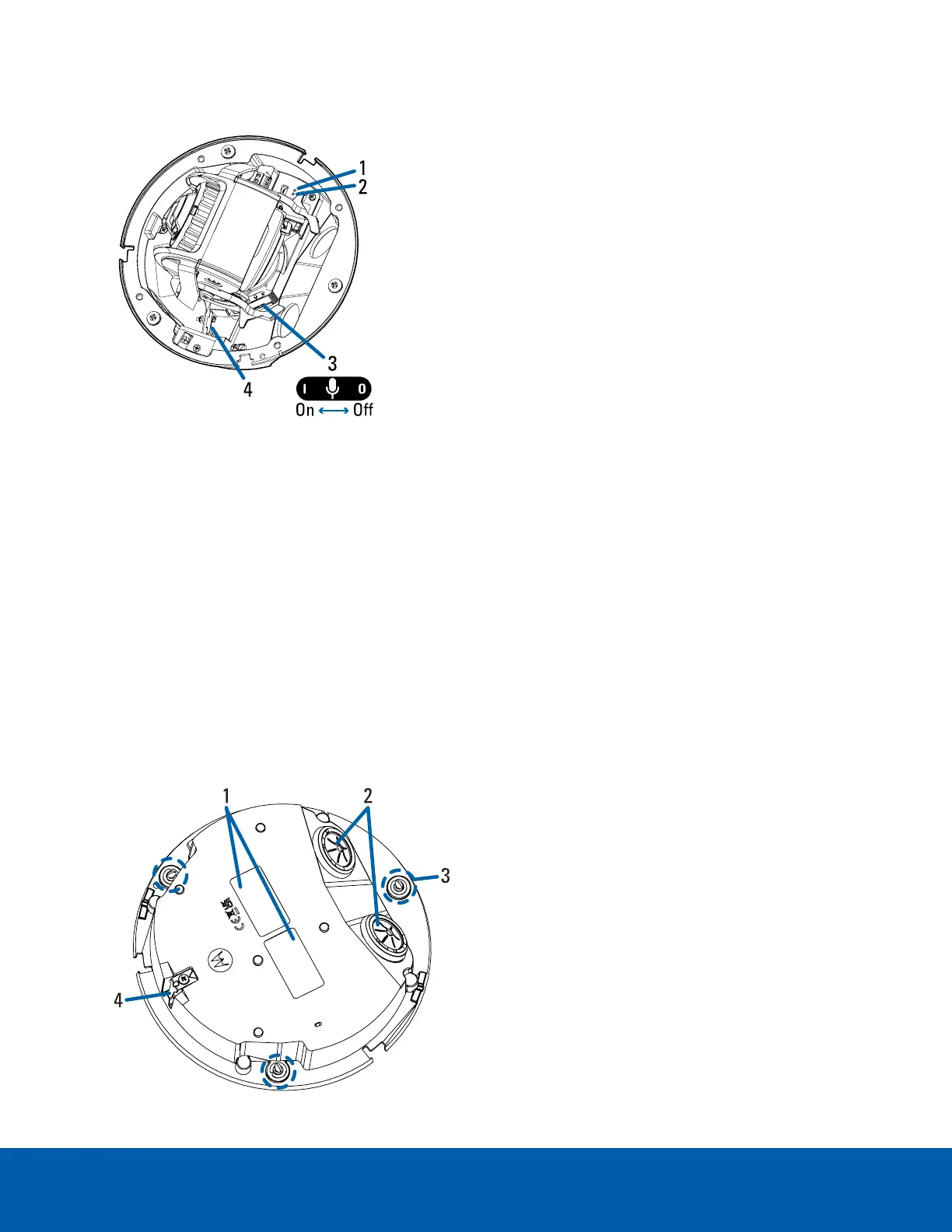

LED, Ethernet and Audio Switch View
1.
Link LED indicator
Amber LED indicates if there is an active connection in the Ethernet port.
2.
Connection status LED indicator
Green LED provides information about device operation. For more information, see
Connection Status
LED Indicator on page48.
3.
Microphone switch
Switch to enable or disable the built-in microphone. For more information, see
(Optional) Enabling the
Microphone on page43. Not present on H6X camera models.
4.
Ethernet port
Accepts an Ethernet connection to a network. Server communication and image data transmission
occurs over this connection. Also receives power when it is connected to a network that provides
Power over Ethernet.
Bottom View
LED, Ethernet and Audio Switch View 3
