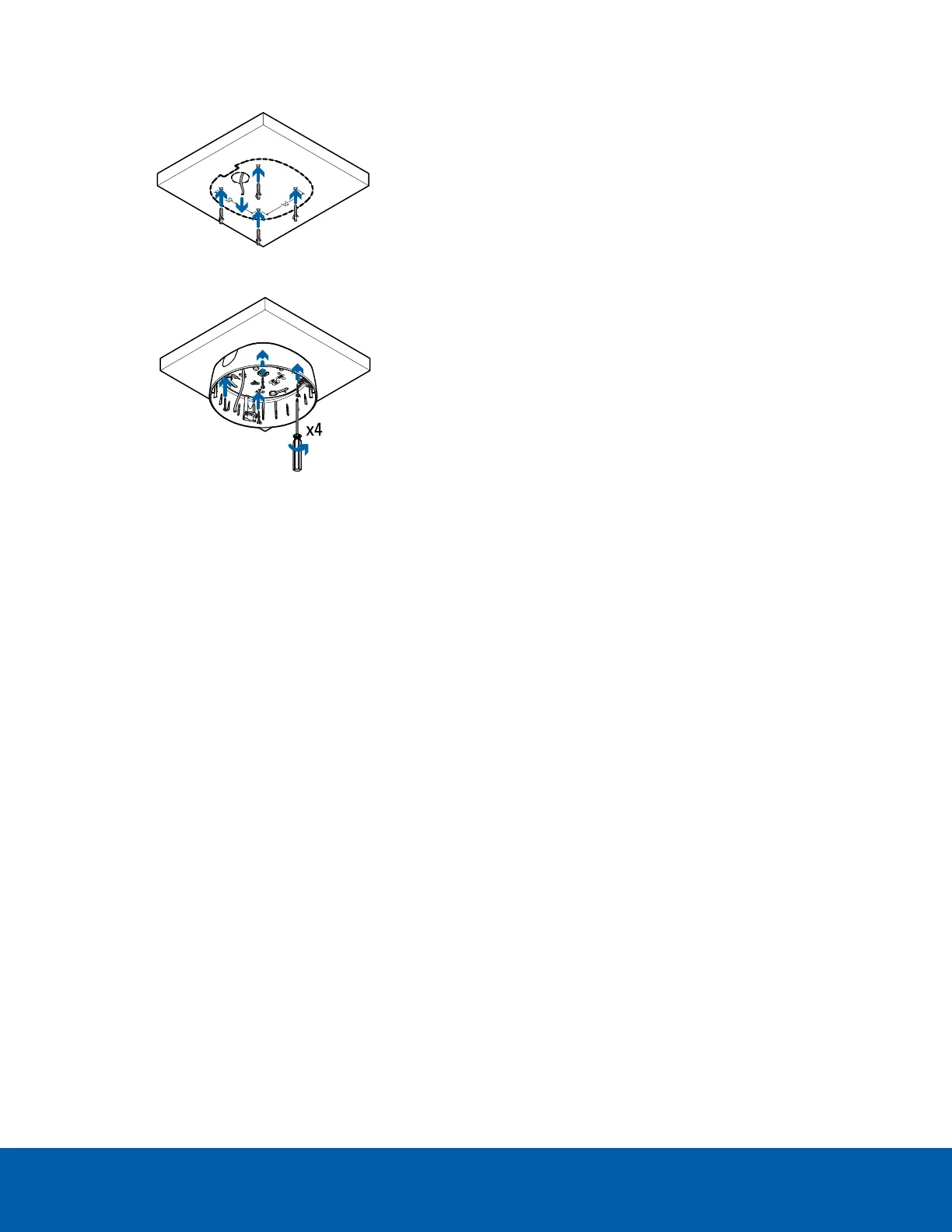

3. Insert the wall anchors into the mounting holes.
4. Use four screws to secure the adapter to the mounting surface.
Installing the Surface Adapter Using the Side Cable Entry Hole
Perform the following steps if you will be mounting to a surface with the required cables coming out of an
external conduit pipe. Use this procedure if the mounting surface cannot be easily cut, or when cables must
be brought along the outside of the mounting surface.
Installing the Surface Adapter Using the Side Cable Entry Hole 14
