Installing the Pendant Wall Mount
When installing the wall mount, the cables for the camera can be accessed through either a hole in the wall or
from a bottom conduit entry into the wall arm. If your installation requires a bottom conduit to access the
required cables, refer to Accessing Cables through the Bottom Conduit on page31.

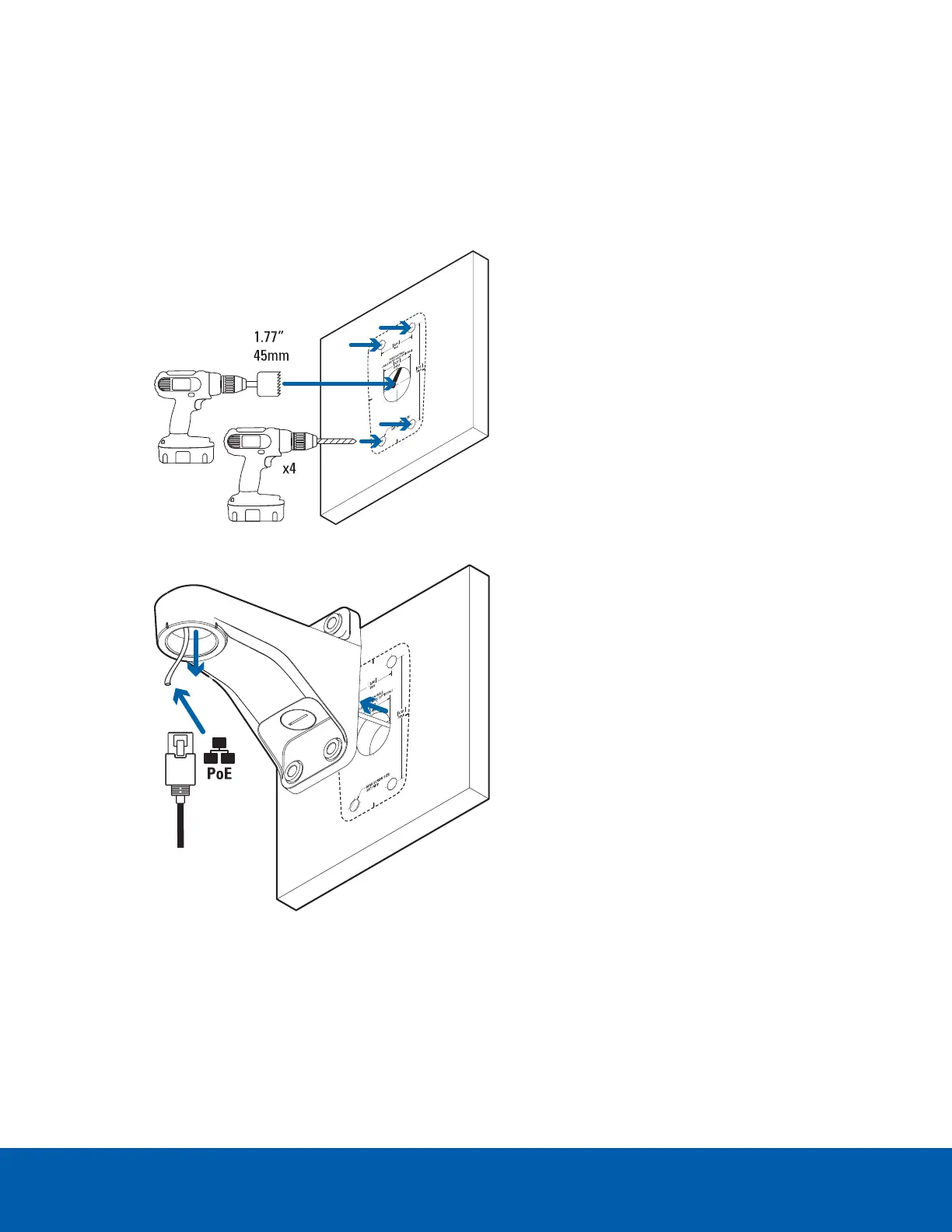

1. Use the mounting template to drill four mounting holes, and one cable entry hole, into the mounting
surface.
2. Pull the required cables through the cable entry hole and thread the cables through the wall arm.
3. Secure the wall arm to the mounting surface using the provided washers and mounting screws.
Installing the Pendant Wall Mount 29
