Avigilon 2.0C-H6A-D1 User Manual

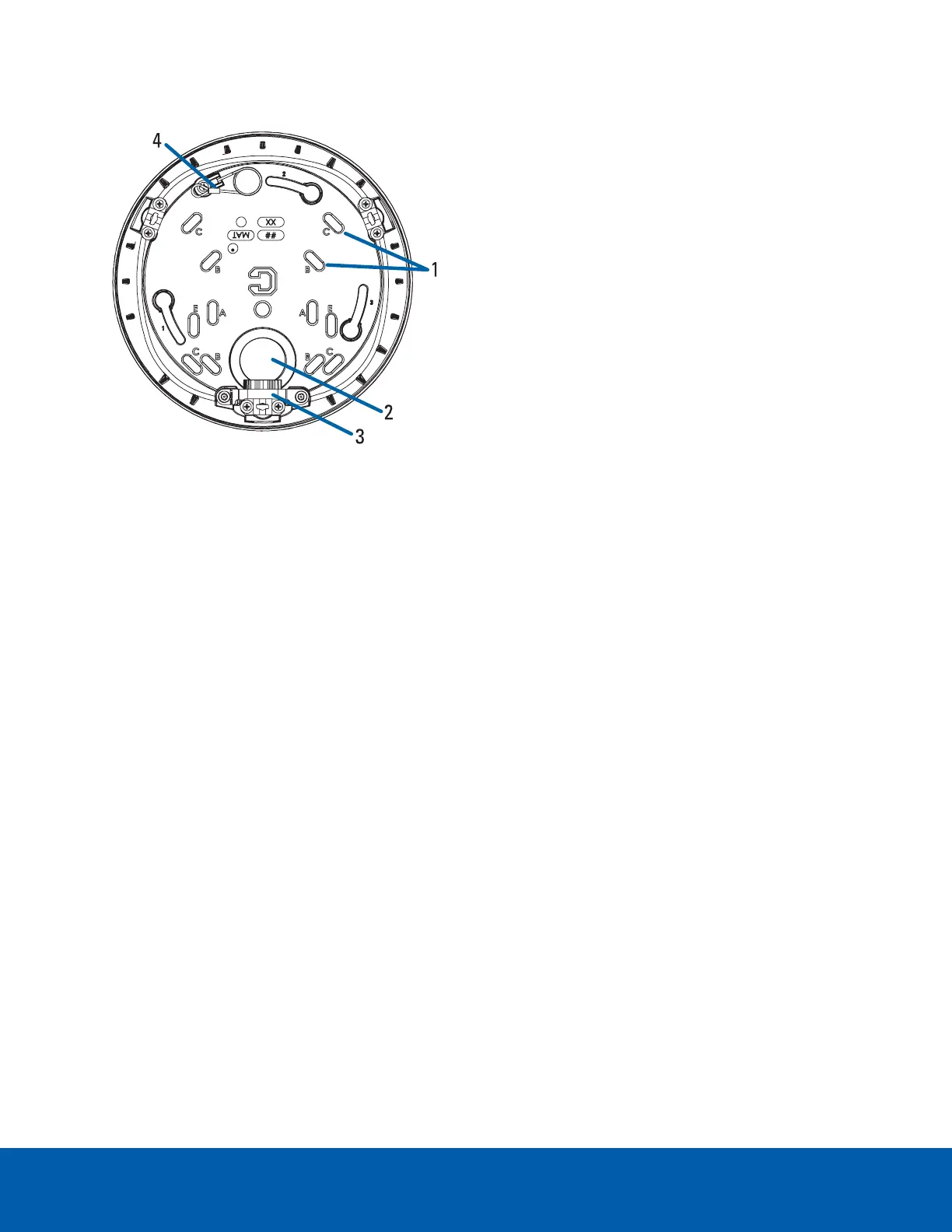

Adapter View
1.
Electrical box mounting holes
Holes for mounting the wall plate to an electrical box. The wall plate supports five configurations:
A. UK standard single gang box
B. Octagon gang box
C. 4" gang box
D. Pendant mount adapter
E. US standard single gang box
2.
Rear cable entry hole
An entry hole for the cables required for camera operation.
3.
Side cable entry hole
A side entry hole for the cables required for camera operation.
4.
Lanyard
Attaches the camera to the module.
Adapter View 5
