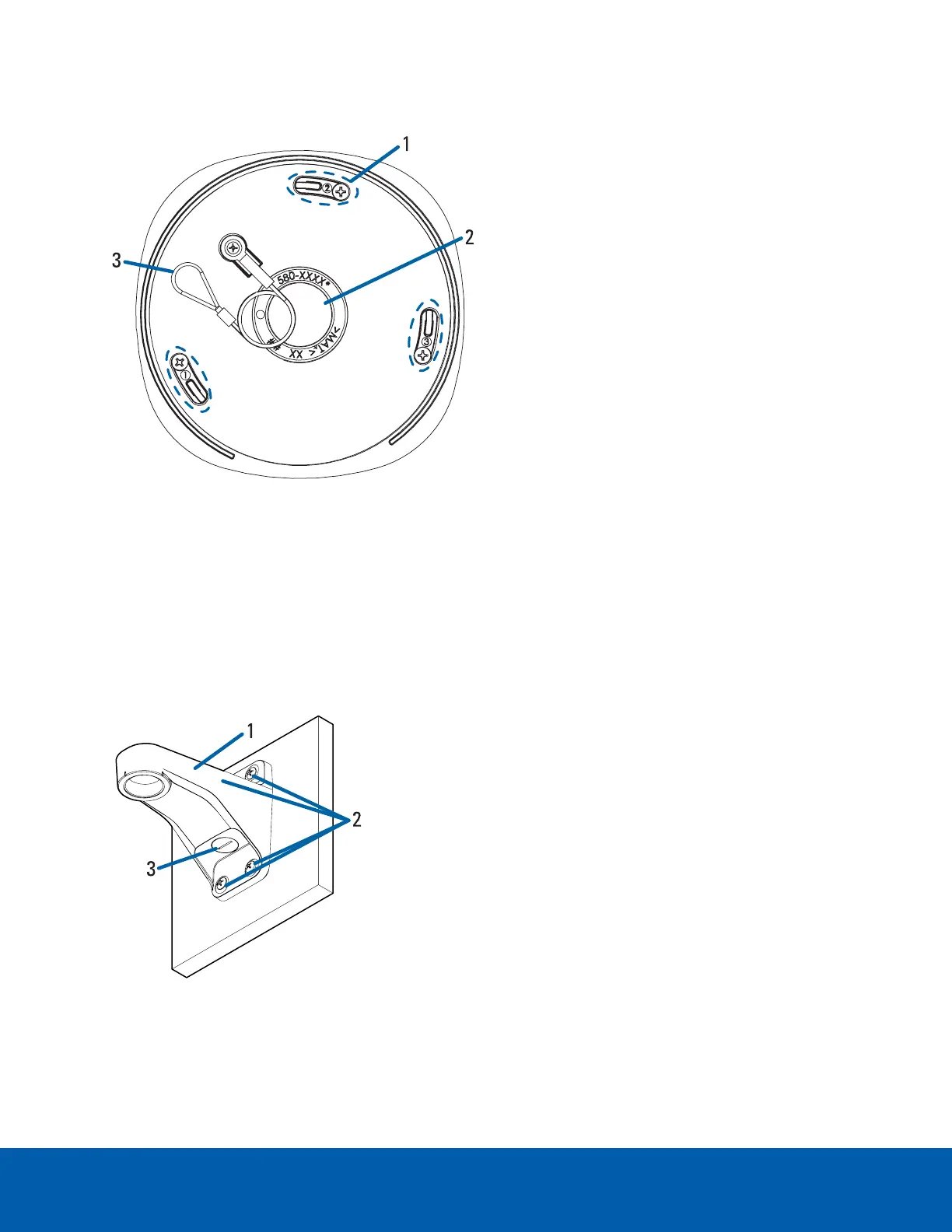

Adapter View
1.
Camera mounting screws
Screws for securing the camera to the pendant mount adapter.
2.
Cable entry hole
An entry hole for the cables required for camera operation.
3.
Lanyard
Connects to a lanyard hook on the surface mount adapter.
Wall Arm View
Adapter View 8
