Surface Mount Installation
Required Tools and Materials
l
Small slotted screwdriver with 5/64” or 2 mm blade width — for connecting power when not using
Power over Ethernet.
l
No. 2 Phillips screwdriver — for attaching camera to an electrical box or mounting surface
l
Silicone sealant
Camera Package Contents
Ensure the package contains the following:
l
Avigilon H6A Indoor or Outdoor Dome Camera
l
Mounting template sticker
l
Cable entry grommets
l
RJ-45 grommet piercing cap
l
4 screws and anchors for solid walls
Installation Steps
Complete the following sections to install the device.
Installing the Surface Adapter Using the Bottom Cable Entry Hole
Perform the following steps if the required cables will be coming out of the mounting surface. Use this
procedure on surfaces that can easily be cut, such as aluminum, and when the cables should be kept out of
sight.

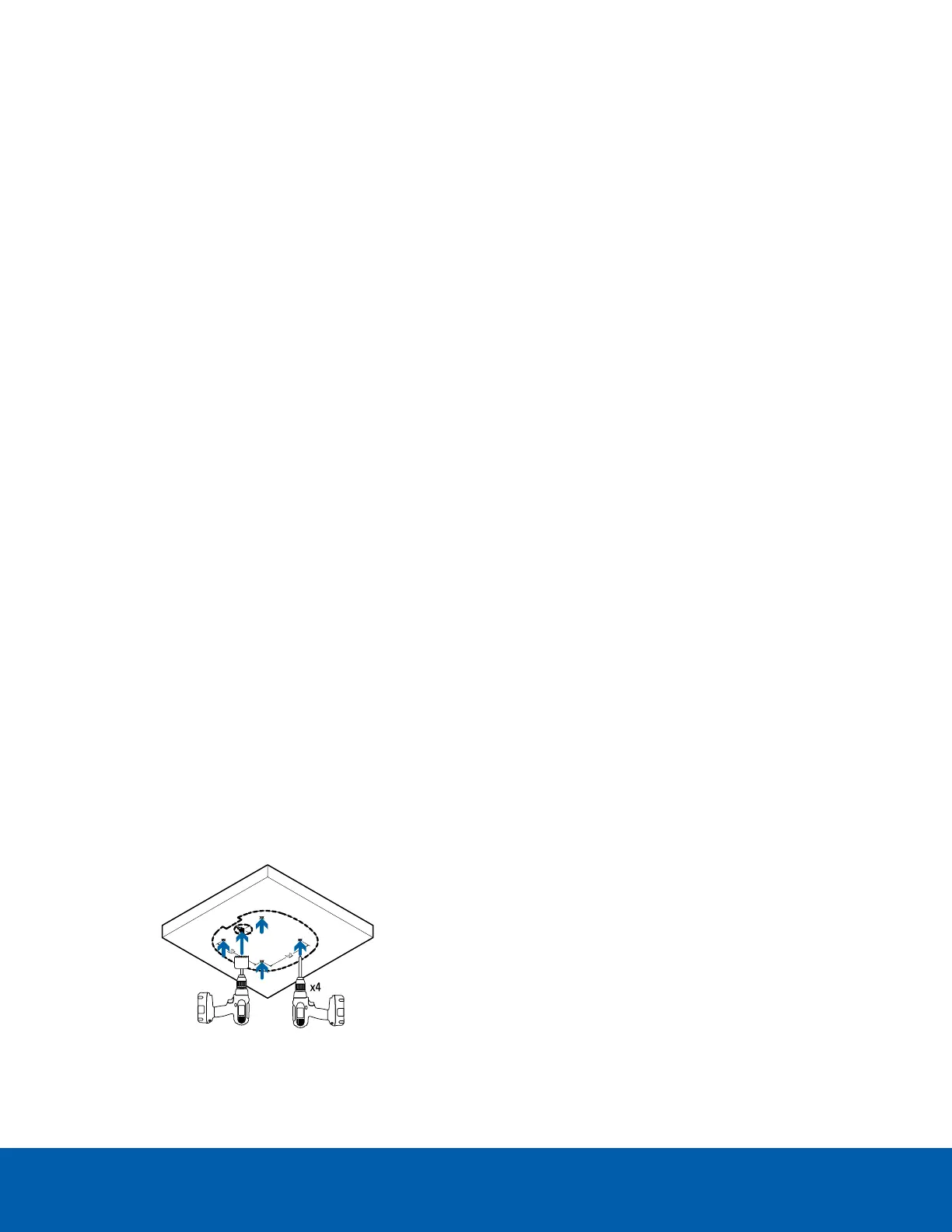

1. Use the mounting template to drill the mounting holes and one cable entry hole into the mounting
surface.
2. Pull the cables through the cable entry hole in the mounting surface.
Surface Mount Installation 13
