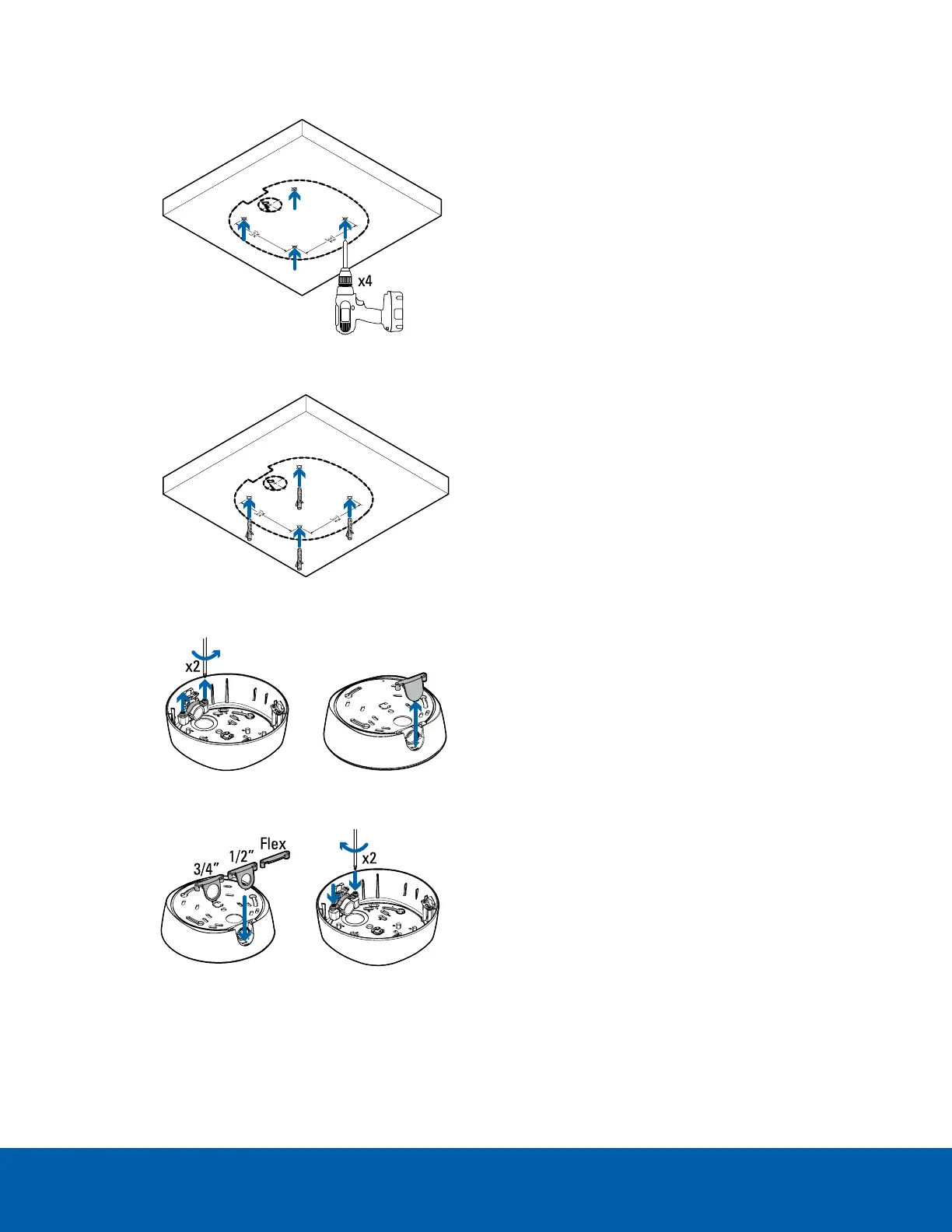

1. Use the mounting template to drill four mounting holes and position the conduit pipe correctly.
2. Insert the wall anchors into the mounting holes.
3. Use a screwdriver to loosen the side cover on the surface adapter, and remove the cover.
4. Choose the correct size cover for the conduit pipe, and screw into place.
5. Pull the required cables through the conduit.
6. Drive four screws into the mounting holes on the surface adapter.
7. Insert the conduit pipe into the side conduit entry.
Installing the Surface Adapter Using the Side Cable Entry Hole 15
