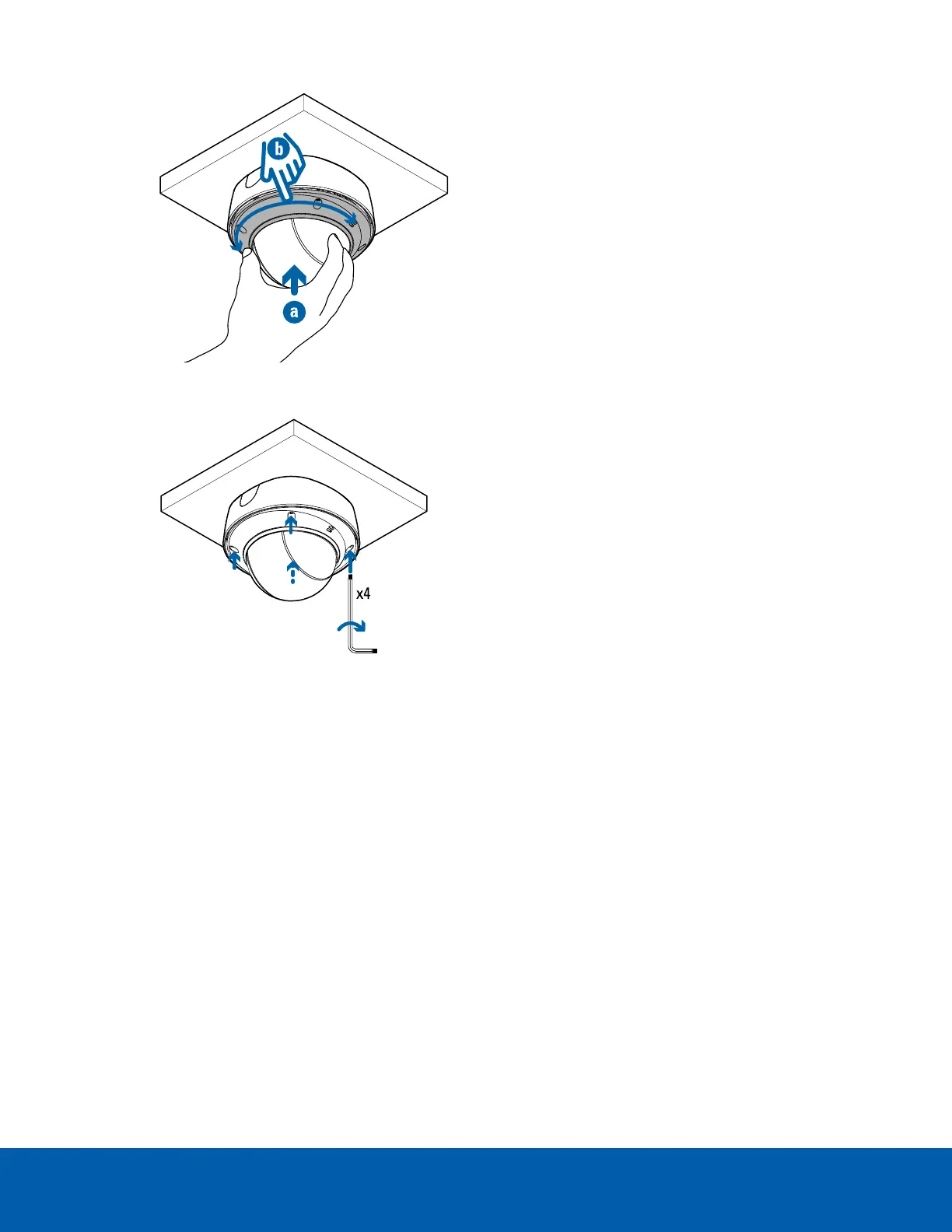

8. Attach the dome cover to the base by tightening the screws with the star-shaped driver.

9. Remove the protective cover on the outside of the dome bubble.

Installing the Dome Cover for an IR Dome Camera 20
