Avigilon H4A Series User Manual

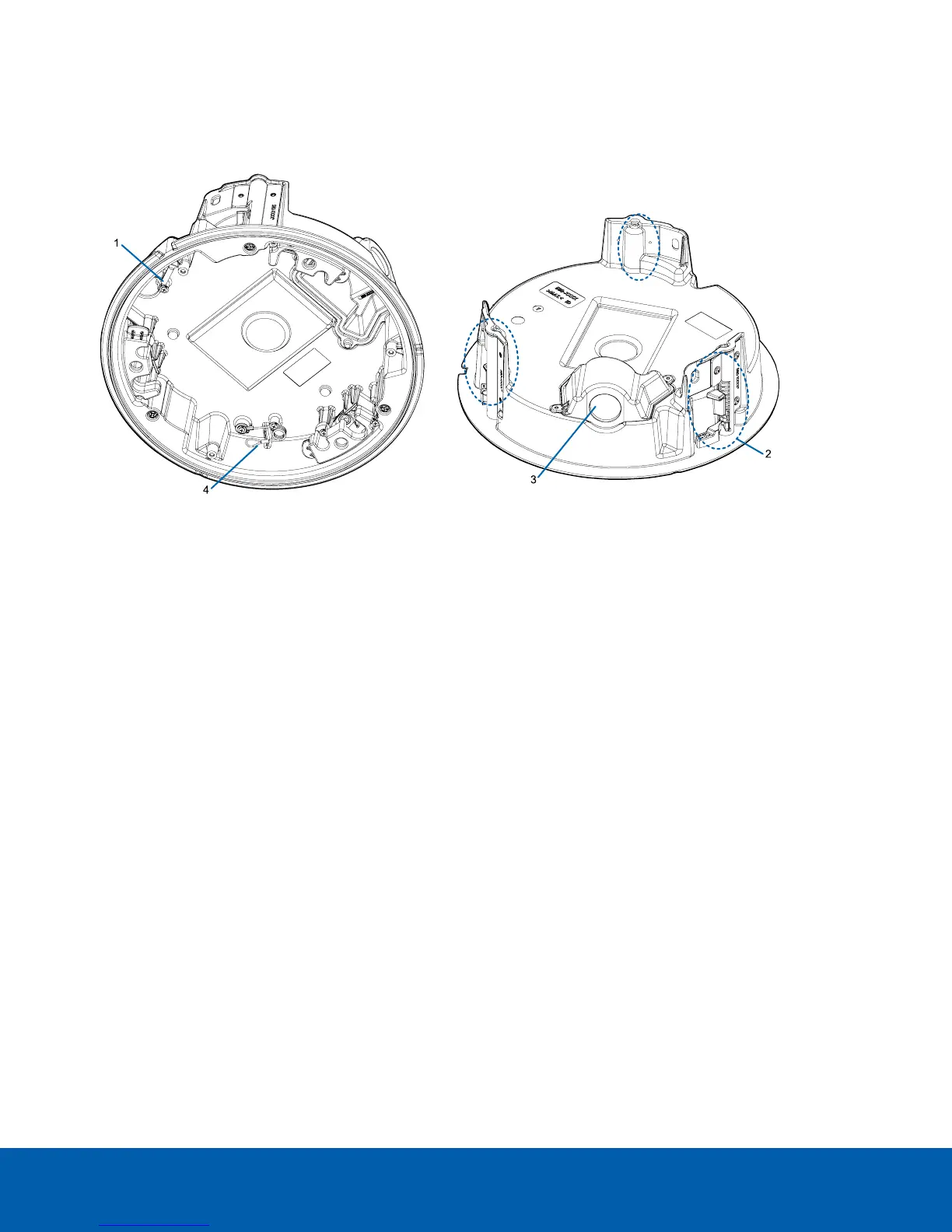

In-Ceiling Mount Adapter
1. Lanyard to camera
Connects to the lanyard anchor on the camera base.
2.
Clamps
Spring loaded locking mechanisms that secure the camera to the mounting surface.
3. Cable entry hole and conduit cable entry cover
An entry hole for the cables required for camera operation.
4. Lanyard to dome cover
Connects to the lanyard anchor on the dome cover.
In-Ceiling Mount Adapter 11

Avigilon H4A Series Specifications

General

Impact Rating	IK10
Day/Night	Yes
Video Compression	H.264
Ingress Protection	IP66
IR Distance	Up to 30m (98ft)
Wide Dynamic Range (WDR)	Yes, up to 120dB
Frame Rate	Up to 30fps
Power	PoE (IEEE 802.3af)
Minimum Illumination	0.05 lux (color)
Audio Support	Yes
