Installing the Pendant Mounting Adapter

Use the following procedure to mount the pendant adapter (H4AMH-AD-PEND1) into a pendant wall mount

(IRPTZ-MNT-WALL1) or NPT mount (IRPTZ-MNT-NPTA1).

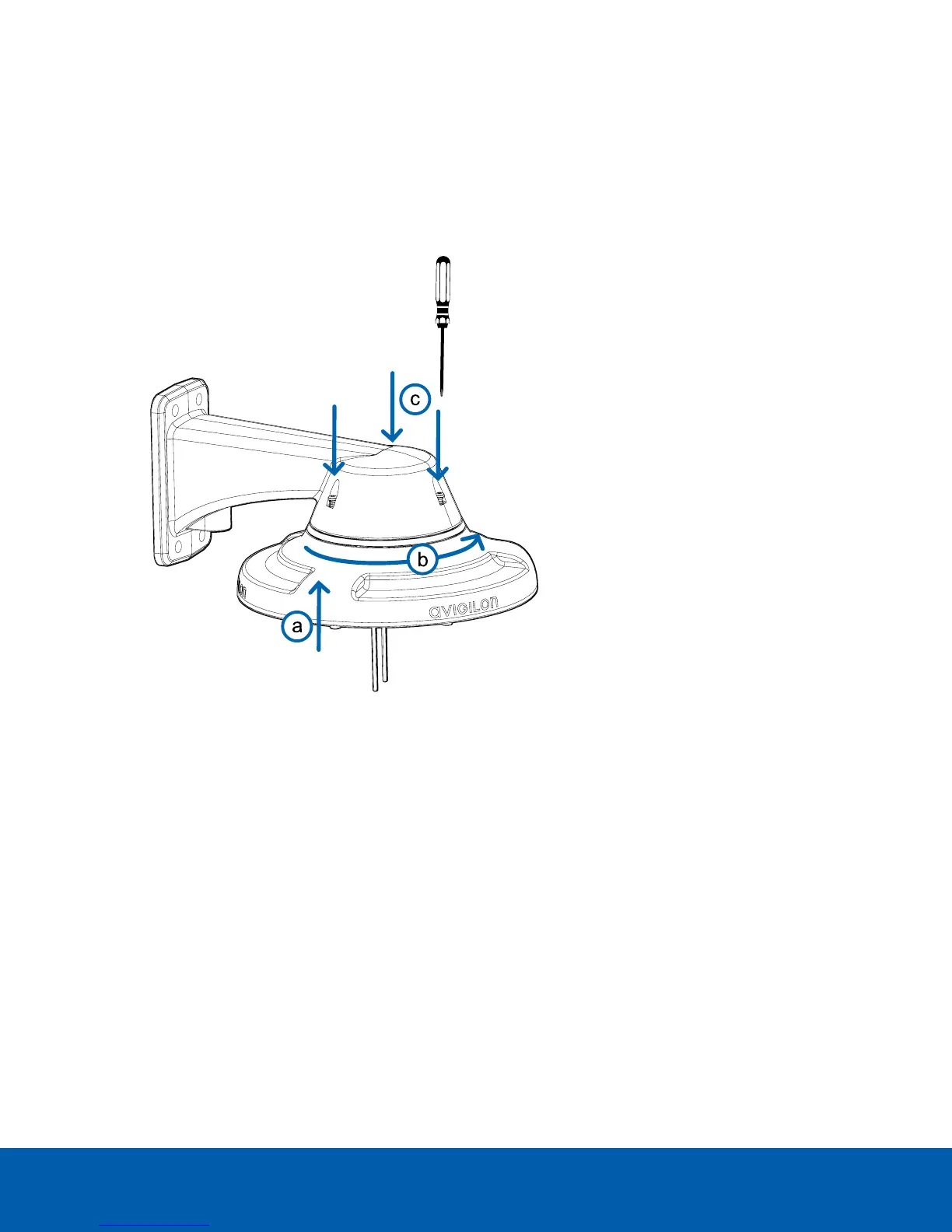

1. Connect the pendant adapter to the mount. In one smooth motion, raise the adapter into the mount (a)

and then turn clockwise to lock the adapter in place (b).

2. Use a screwdriver to tighten the 3 setscrews at the top of the mount to secure the pendant adapter to the

mount (c).

Installing the Pendant Mounting Adapter 20
