Avigilon H4A Series User Manual

Accessing the Live VideoStream
Live video stream can be viewed using one of the following methods:
l The mobile web interface using the USB Wifi Adapter. For more information, see (Optional) Using the USB
Wi-Fi Adapter on page54.
l Web browser interface: http://< camera IP address>/.
l Network Video Management software application (for example, the AvigilonControl Center software).
NOTE: The default device username is administrator with no password.
NOTE: You will be unable to connect an H4 Multisensor camera to ACC software version 6.12 or older if any of
the H4 Multisensor heads have their Format set to H.265 on the Compression and Image Rate page of the
camera's web interface. To connect an H4 Multisensor camera to an ACC system, be sure to set the Format to
H.264 or to upgrade the ACC software to v6.12.2 or later.

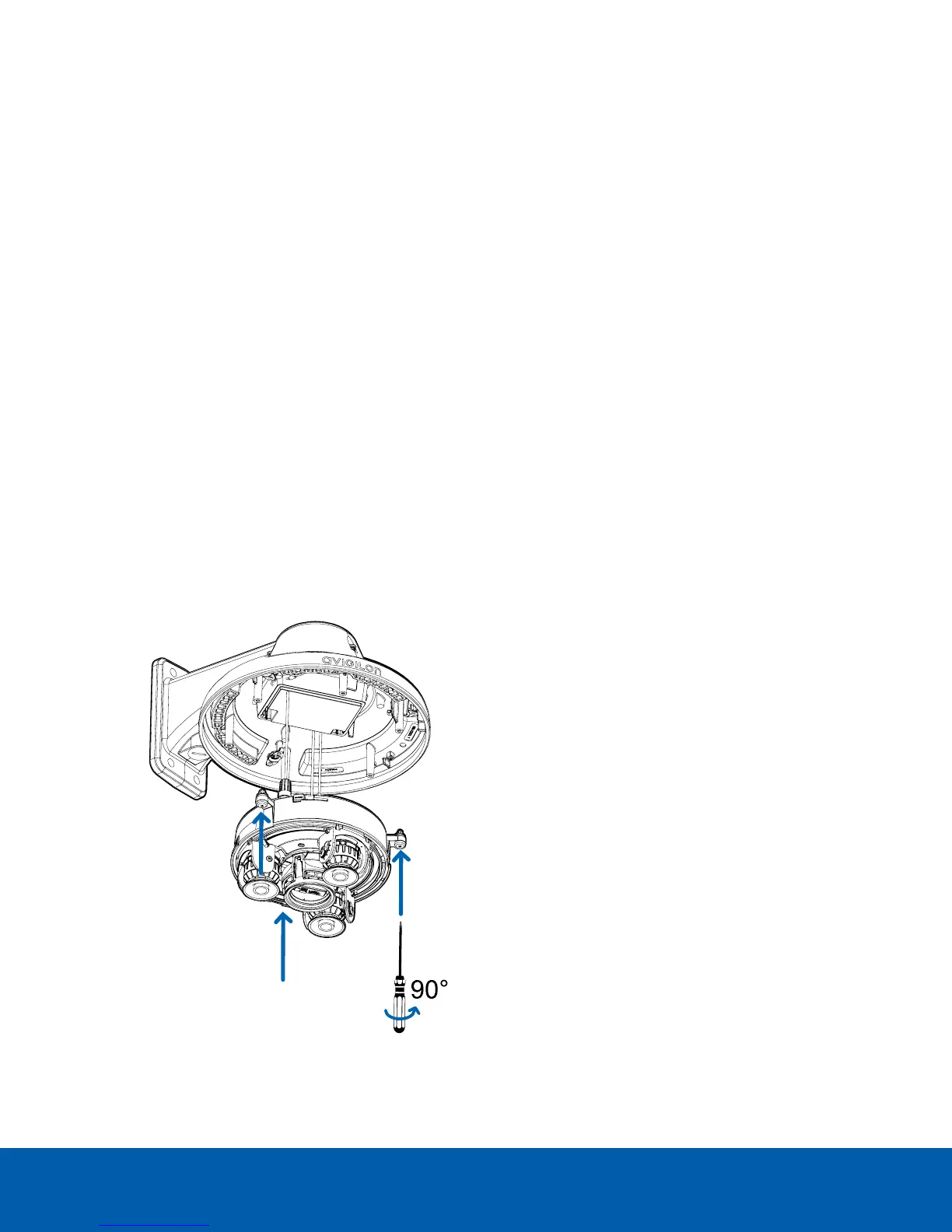

Installing the H4 Multisensor Camera Base to a Pendant Mount
After the cable connections have been made, mount the H4 Multisensor camera base into the pendant mount
adapter.
1. (Recommended) Attach a safety lanyard from the pendant mount adapter to the lanyard anchor on the
camera base to prevent the camera from falling. See Connecting Cables on page21.
2. Push the camera base into the pendant adapter so that the 3 setscrews in the camera base align with the
screw holes in the pendant adapter.
3. Use a screwdriver to turn the 3 setscrews clockwise by 90° and secure the camera to the pendant mount
adapter.
Accessing the Live VideoStream 26

Avigilon H4A Series Specifications

General

Impact Rating	IK10
Day/Night	Yes
Video Compression	H.264
Ingress Protection	IP66
IR Distance	Up to 30m (98ft)
Wide Dynamic Range (WDR)	Yes, up to 120dB
Frame Rate	Up to 30fps
Power	PoE (IEEE 802.3af)
Minimum Illumination	0.05 lux (color)
Audio Support	Yes
