Avigilon H4A Series User Manual

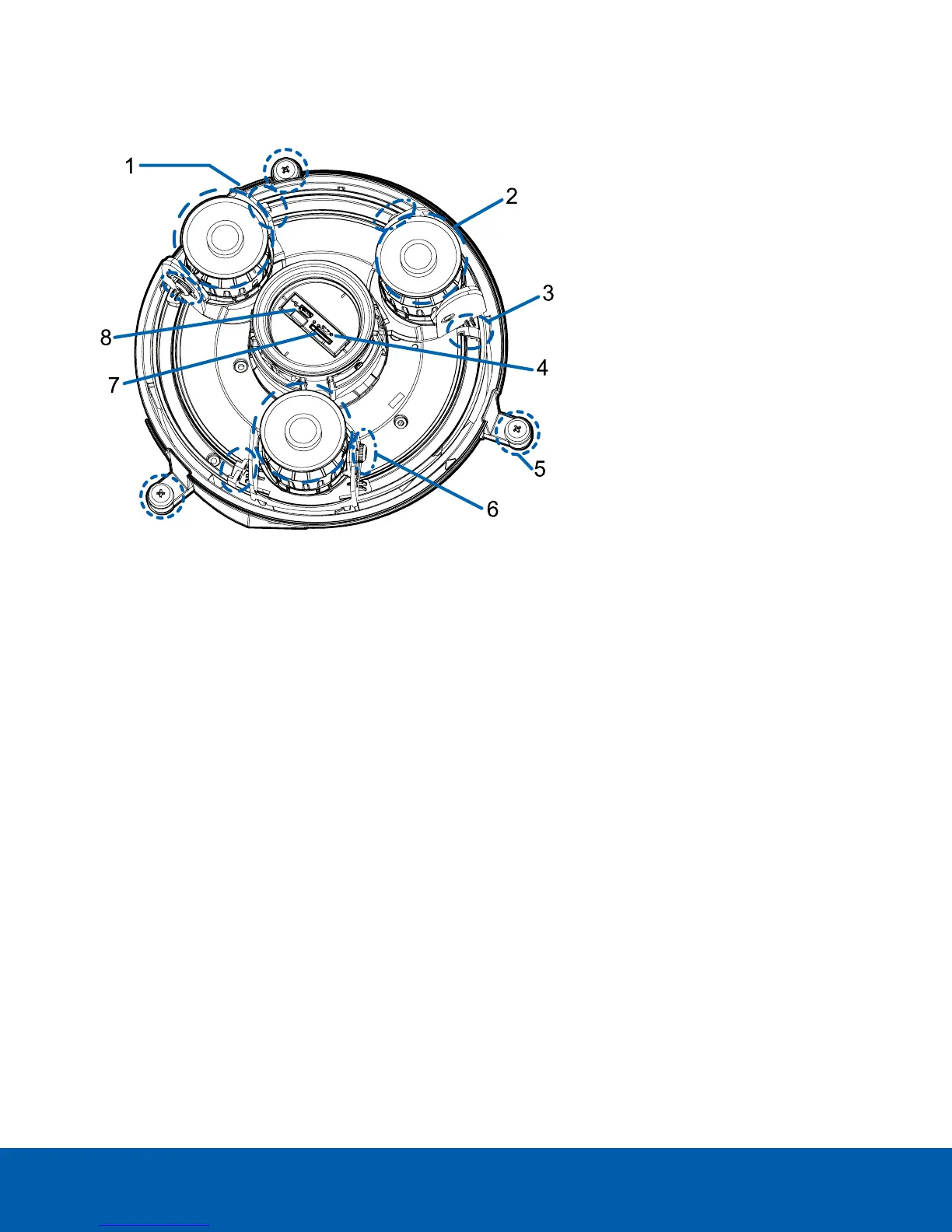

Camera Top View
1.
Serial number tag
Device information, product serial number and part number label.
2.
Camera heads
The multiple camera heads that can be moved, aimed and focused to monitor different scenes.
NOTE: There may be three or four camera heads depending on your camera model.
3.
Pan lock latch
Provides a locking mechanism for the image pan adjustment.
4. Firmware revert button
Resets the H4 Multisensor camera. For more information, see Resetting to Factory Default Settings on
page63.
5.
Camera mounting screws
Captive screws to fix the camera to the mounting adapter.
6.
Tilt lock thumb screw
Provides a locking mechanism for the image tilt adjustment.
7.
microSD card slot
Accepts a microSD card for onboard storage.
8.
Micro USB port
Accepts a micro USB to USB adapter. Only required when using the Avigilon USB Wi-Fi Adapter.
Camera Top View 8

Avigilon H4A Series Specifications

General

Impact Rating	IK10
Day/Night	Yes
Video Compression	H.264
Ingress Protection	IP66
IR Distance	Up to 30m (98ft)
Wide Dynamic Range (WDR)	Yes, up to 120dB
Frame Rate	Up to 30fps
Power	PoE (IEEE 802.3af)
Minimum Illumination	0.05 lux (color)
Audio Support	Yes
