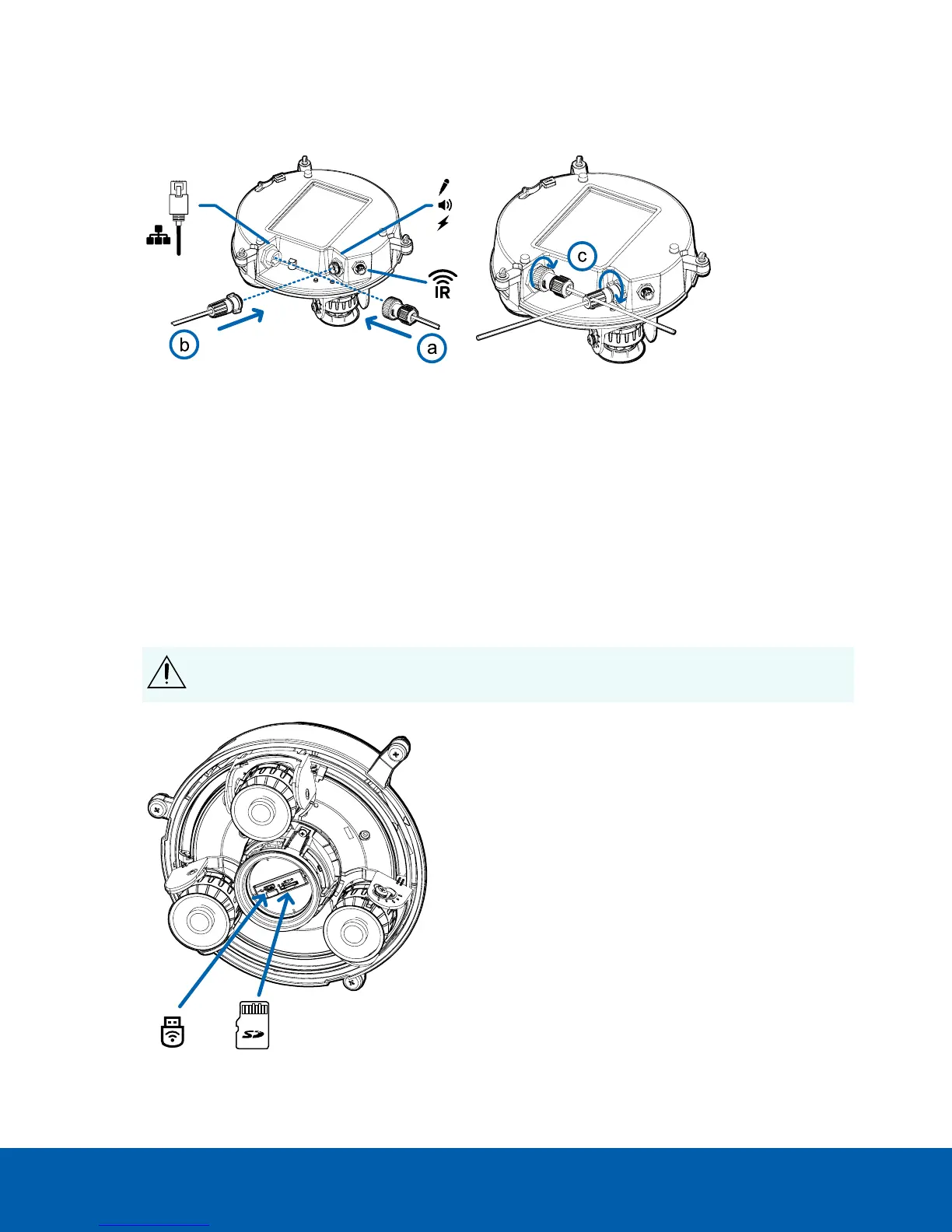

6. Connect the network cable to the Ethernet port (a) and the external power/audio/digital I/O cable to its
connector (b). Secure the connections by turning them clockwise (c).
The Link LED will turn on once a network link has been established.
7. Check that the Connection Status LED indicator indicates the correct state. For more information, see
Connection Status LED Indicator on page62.
(Optional) Configuring microSD Card Storage
To use the camera's SD card storage feature, you must insert a microSD card into the card slot.
It is recommended that the microSD card have a write speed of class 10 or better. If the microSD card does not
meet the recommended write speed, the recording performance may suffer and result in the loss of frames or
footage.
1. Insert a microSD card into the camera.
CAUTION — Do not force the microSD card into the camera or you may damage the card and the
camera.
2. Access the camera’s web interface to enable the onboard storage feature. For more information, see the
Avigilon High Definition H.264 Camera Web Interface User Guide.
(Optional) Configuring microSD Card Storage 24

Avigilon H4A Series Specifications

General

Impact Rating	IK10
Day/Night	Yes
Video Compression	H.264
Ingress Protection	IP66
IR Distance	Up to 30m (98ft)
Wide Dynamic Range (WDR)	Yes, up to 120dB
Frame Rate	Up to 30fps
Power	PoE (IEEE 802.3af)
Minimum Illumination	0.05 lux (color)
Audio Support	Yes
