Avigilon H4A Series User Manual

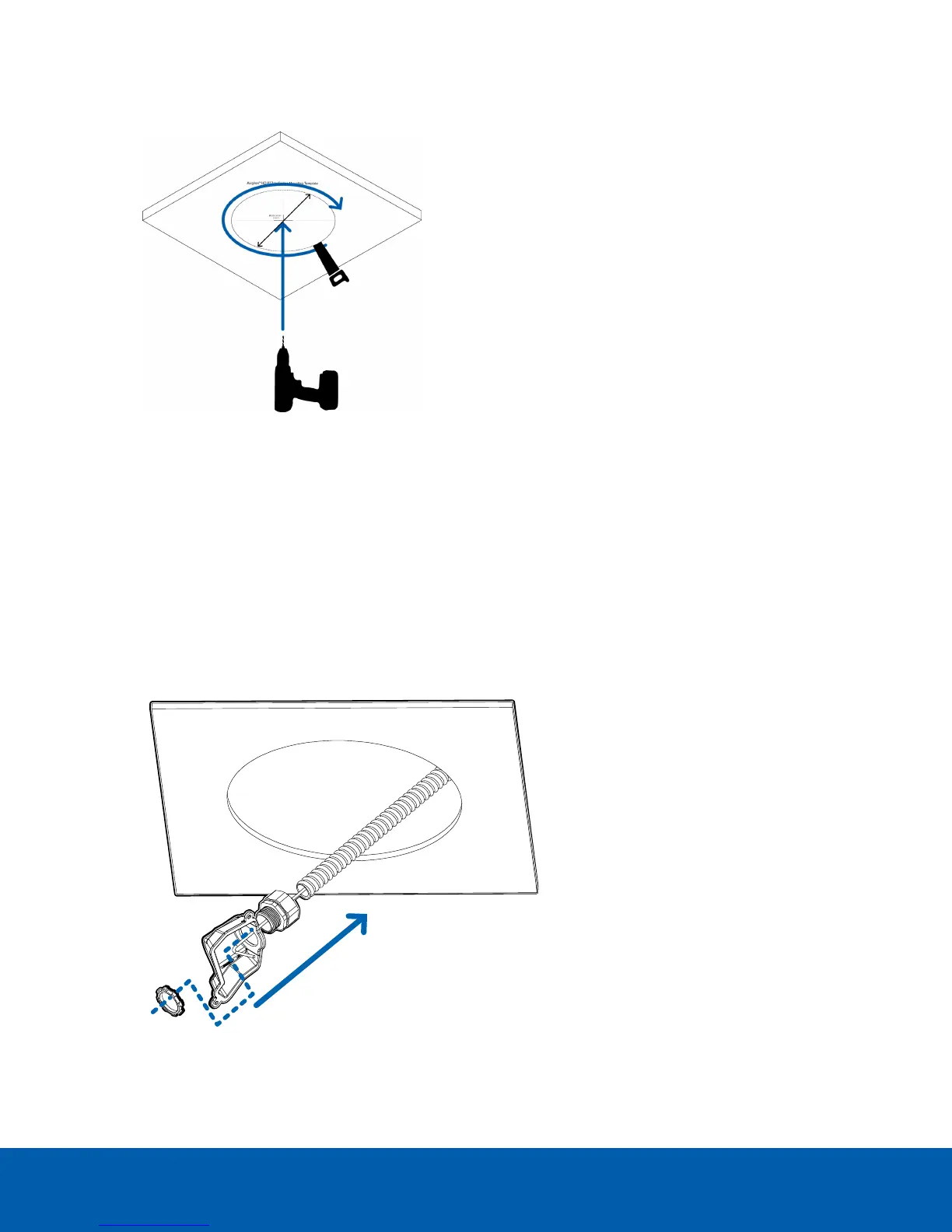

1. Use the mounting template to cut a hole in the mounting surface.
2. Remove the mounting template and pull the required cables through the mounting hole. If you are using a
conduit pipe to route the cables, see (Optional) Attaching the Conduit Cable Entry Cover for Plenum
Installations below.
(Optional) Attaching the Conduit Cable Entry Cover for Plenum Installations
If you are installing the H4 Multisensor camera into a plenum space, use a conduit pipe and the cable entry cover
to route the cables through the in-ceiling adapter.
1. Route the required cables through a conduit pipe at the installation location.
2. Attach a conduit connector to the cable entry cover. Install the conduit and its fitting as instructed by the
manufacturer. Make sure the conduit is securely fastened to the cable entry cover.
(Optional) Attaching the Conduit Cable Entry Cover for Plenum Installations 48

Avigilon H4A Series Specifications

General

Impact Rating	IK10
Day/Night	Yes
Video Compression	H.264
Ingress Protection	IP66
IR Distance	Up to 30m (98ft)
Wide Dynamic Range (WDR)	Yes, up to 120dB
Frame Rate	Up to 30fps
Power	PoE (IEEE 802.3af)
Minimum Illumination	0.05 lux (color)
Audio Support	Yes
