Avigilon H4A Series User Manual

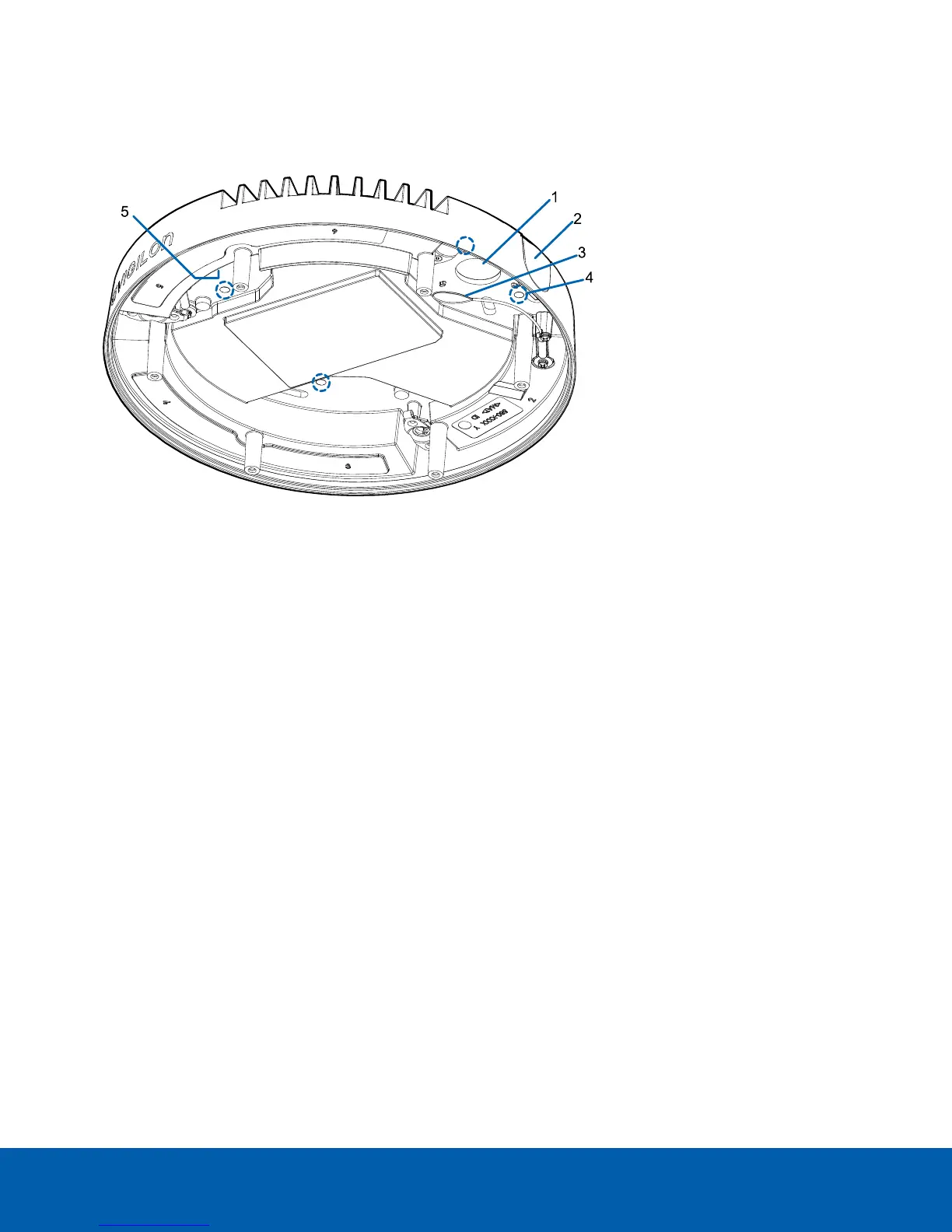

Surface Mount Adapter
1. Cable entry hole (rear)
An entry hole for the cables required for camera operation.
2. Cable entry hole (side)
An entry hole for the cables required for camera operation.
3. Lanyard to dome cover
Connects to the lanyard anchor on the dome cover.
4.
Mounting holes
Mounting points for the mount adapter.
5. Lanyard to camera
Connects to the lanyard anchor on the camera base.
Surface Mount Adapter 9

Avigilon H4A Series Specifications

General

Impact Rating	IK10
Day/Night	Yes
Video Compression	H.264
Ingress Protection	IP66
IR Distance	Up to 30m (98ft)
Wide Dynamic Range (WDR)	Yes, up to 120dB
Frame Rate	Up to 30fps
Power	PoE (IEEE 802.3af)
Minimum Illumination	0.05 lux (color)
Audio Support	Yes
