Avigilon H4A Series User Manual

Aiming the H4 Multisensor Camera
Reference the camera's live stream as you aim the camera.

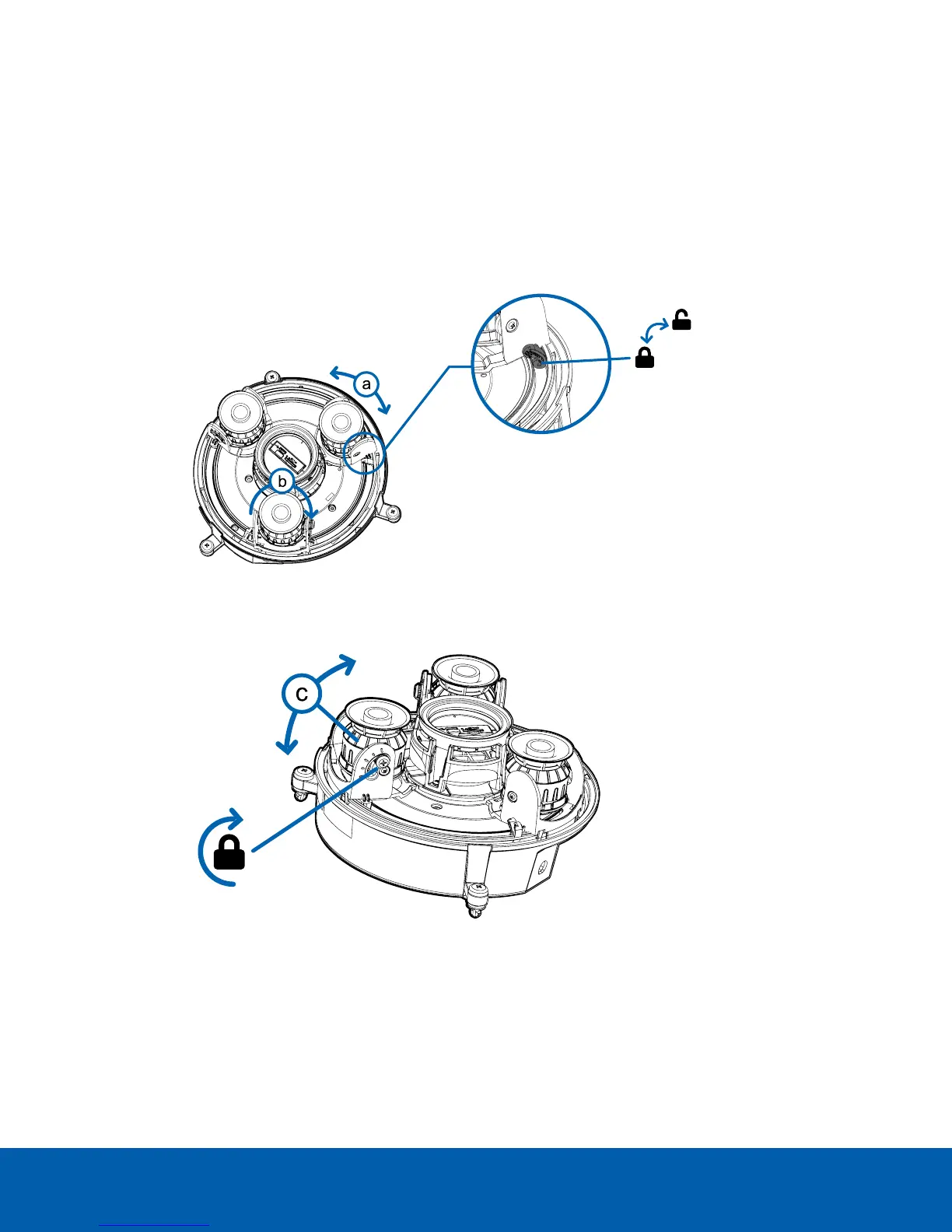

1. To aim the camera, adjust each of the available camera heads as required:
a. Unlock the rail release tab to move the camera head from side to side. Lock the rail release tab
when the camera head is in the desired position.
b. Rotate the azimuth control ring to set the image in the correct rotation.
c. Loosen the tilt lock screws to tilt each camera head up and down. Tighten the tilt lock screws
when the camera is tilted in the correct angle.
2. In the camera web browser interface, adjust the camera’s Image and Display settings to achieve the
desired image parameters and position.
(Optional) Installing the IR Illuminator Ring
NOTE: The optional IR illuminator ring (H4AMH-AD-IRIL1) is compatible with the pendant and surface mount
installations of the H4 Multisensor camera. The IR illuminator ring must be mounted in an outdoor dome cover
(H4AMH-DO-COVR1 or H4AMH-DO-COVR1-SMOKE).
Aiming the H4 Multisensor Camera 42

Avigilon H4A Series Specifications

General

Impact Rating	IK10
Day/Night	Yes
Video Compression	H.264
Ingress Protection	IP66
IR Distance	Up to 30m (98ft)
Wide Dynamic Range (WDR)	Yes, up to 120dB
Frame Rate	Up to 30fps
Power	PoE (IEEE 802.3af)
Minimum Illumination	0.05 lux (color)
Audio Support	Yes
