Avigilon H4A Series User Manual

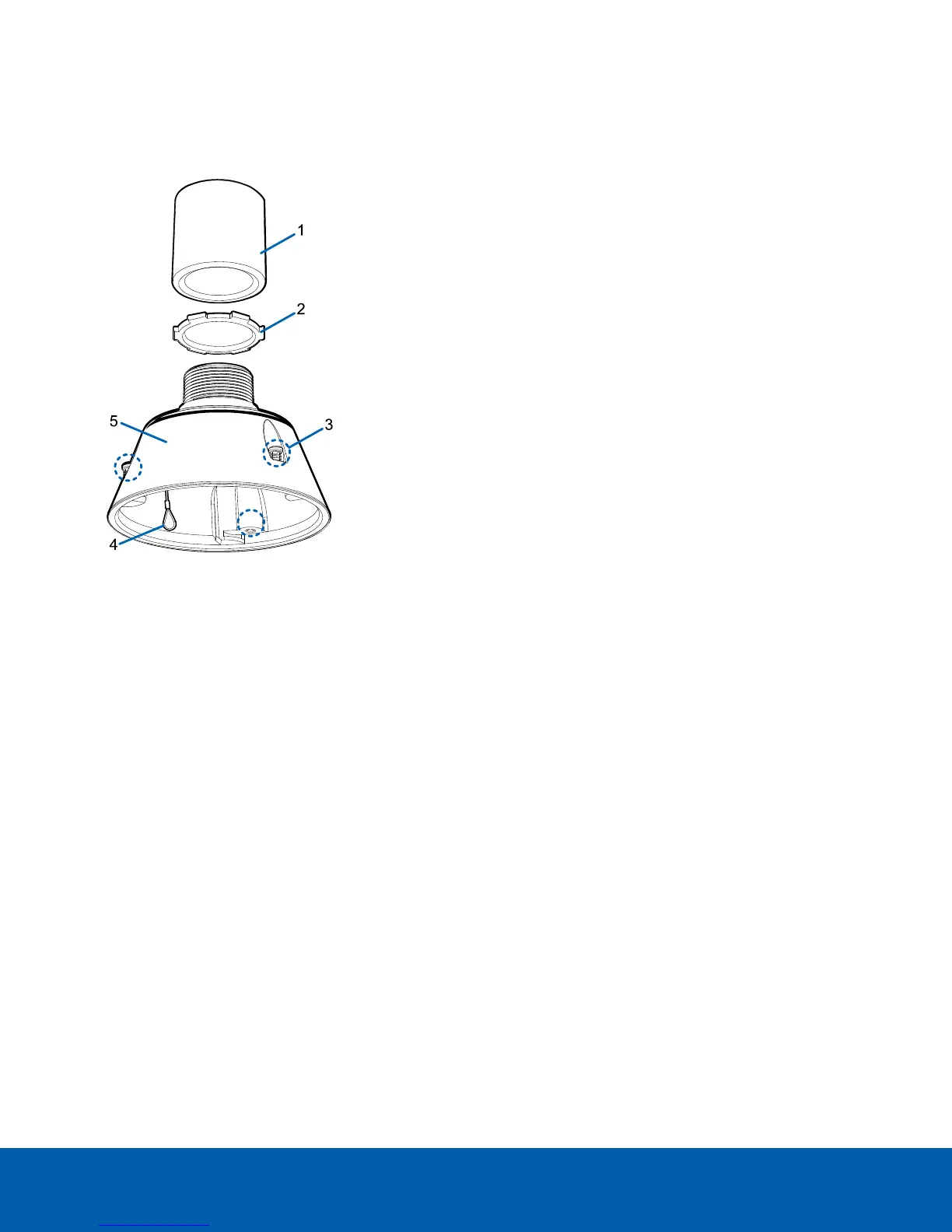

Pendant NPT Mount
1.
NPT pipe
NPT pipe used for a pendant mount with the NPT adapter (IRPTZ-MNT-NPTA1).
NOTE: The NPT pipe is not an included accessory supplied by Avigilon and should be sourced
separately.
2.
Lock nut
Locking nut for securing the pendant NPT mount on the NPT pipe.
3.
Tamper resistant screws
Star-shaped captive screws to fix the mounting adapter to the pendant NPT mount.
NOTE: There are 3 captive screws on the NPT mount. Only 2 screws are shown in the figure above.
4.
Lanyard
Connects to the lanyard anchor on the mounting adapter.
5.
NPT adapter
Used to mount the dome camera to NPT pipes.
Pendant NPT Mount 14

Avigilon H4A Series Specifications

General

Impact Rating	IK10
Day/Night	Yes
Video Compression	H.264
Ingress Protection	IP66
IR Distance	Up to 30m (98ft)
Wide Dynamic Range (WDR)	Yes, up to 120dB
Frame Rate	Up to 30fps
Power	PoE (IEEE 802.3af)
Minimum Illumination	0.05 lux (color)
Audio Support	Yes
