Avigilon H4A Series User Manual

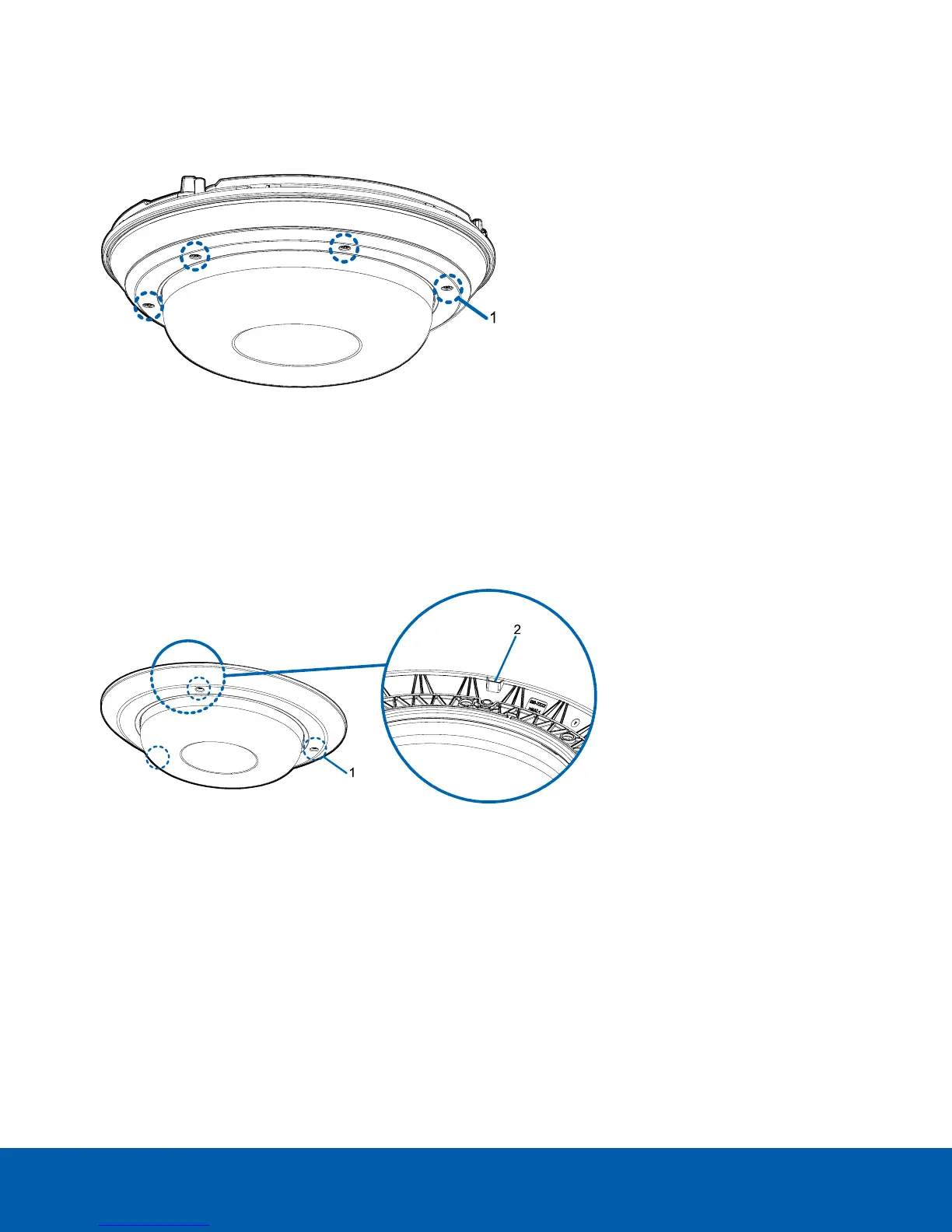

Outdoor Dome Cover
1.
Tamper resistant screws
Star-shaped captive screws to fix the dome cover to the base.
NOTE: There are 6 captive screws on the dome cover. Only 4 screws are shown in the figure above.
In-Ceiling Dome Cover
1.
Tamper resistant screws
Star-shaped captive screws to fix the dome cover to the base.
2.
Dome cover notch
Notch used to align the dome cover with the mounting adapter clip notch when installing the dome
cover.
Outdoor Dome Cover 12

Avigilon H4A Series Specifications

General

Impact Rating	IK10
Day/Night	Yes
Video Compression	H.264
Ingress Protection	IP66
IR Distance	Up to 30m (98ft)
Wide Dynamic Range (WDR)	Yes, up to 120dB
Frame Rate	Up to 30fps
Power	PoE (IEEE 802.3af)
Minimum Illumination	0.05 lux (color)
Audio Support	Yes
