Avigilon H4A Series User Manual

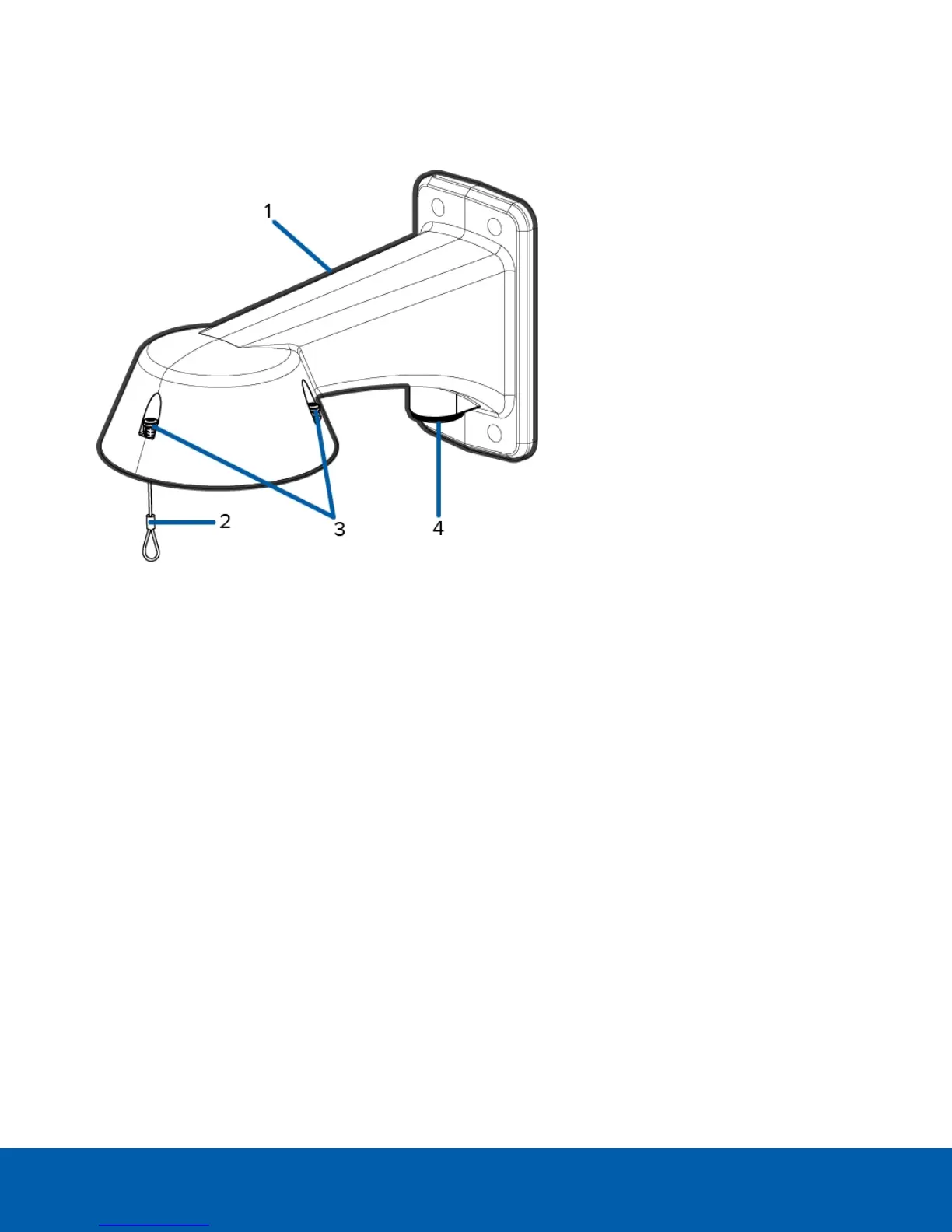

Pendant Wall Mount
1.
Pendant wall mount
Camera mount for walls and other mounting surfaces.
2.
Lanyard
Connects to the lanyard anchor on the mounting adapter.
3.
Tamper resistant screws
Star-shaped captive screws to fix the mounting adapter to the pendant wall mount.
NOTE: There are 3 captive screws on the pendant mount. Only 2 screws are shown in the figure above.
4.
NPT pipe entry hole
A 3/4” NPT threaded hole for NPT pipe conduits.
Pendant Wall Mount 13

Avigilon H4A Series Specifications

General

Impact Rating	IK10
Day/Night	Yes
Video Compression	H.264
Ingress Protection	IP66
IR Distance	Up to 30m (98ft)
Wide Dynamic Range (WDR)	Yes, up to 120dB
Frame Rate	Up to 30fps
Power	PoE (IEEE 802.3af)
Minimum Illumination	0.05 lux (color)
Audio Support	Yes
