Avigilon H4A Series User Manual

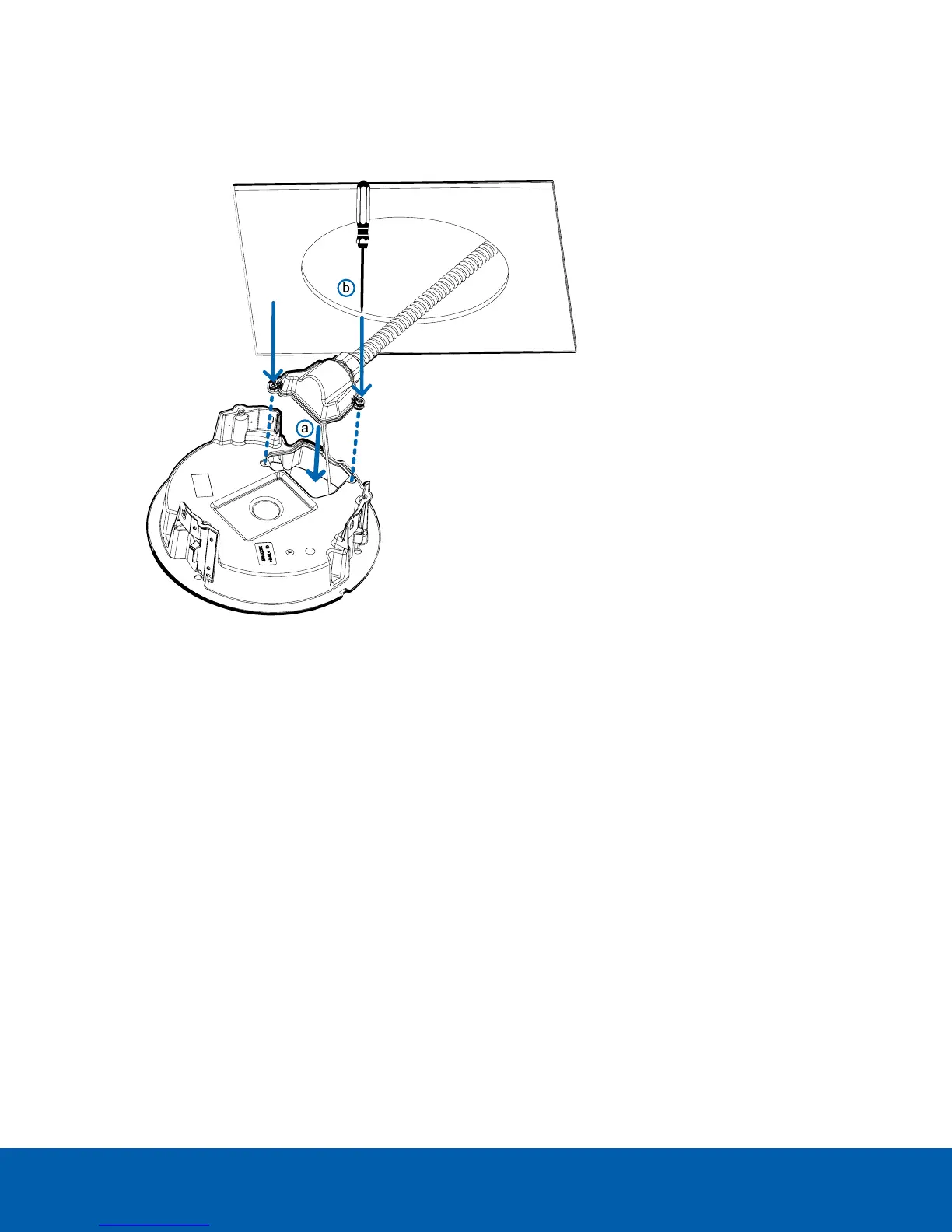

3. Pull the required cables through the conduit and cable entry cover, then through the cable entry hole in
the in-ceiling adapter (a). Fasten the cable entry cover over the cable entry hole in the in-ceiling adapter
using the provided setscrews (b).
Installing the In-Ceiling Mounting Adapter
Use the following procedure to mount the in-ceiling adapter into a plenum space or the metal ceiling panel
(H4AMH-DC-CPNL1).
Installing the In-Ceiling Mounting Adapter 49

Avigilon H4A Series Specifications

General

Impact Rating	IK10
Day/Night	Yes
Video Compression	H.264
Ingress Protection	IP66
IR Distance	Up to 30m (98ft)
Wide Dynamic Range (WDR)	Yes, up to 120dB
Frame Rate	Up to 30fps
Power	PoE (IEEE 802.3af)
Minimum Illumination	0.05 lux (color)
Audio Support	Yes
