AVM FRITZ!Box 7360 User Manual

Connecting an IP Telephone
41
7.4 Connecting an IP Telephone
With your FRITZ!Box 7360 you can also use IP telephones to
make calls over the Internet and the fixed-line telephone net-
work. Connect an IP telephone by plugging it into a network
port on the FRITZ!Box or wirelessly via WLAN.
Connecting an IP Telephone to the LAN Port of the FRITZ!Box
IP telephones with a LAN port can be connected to the
FRITZ!Box with a network cable.

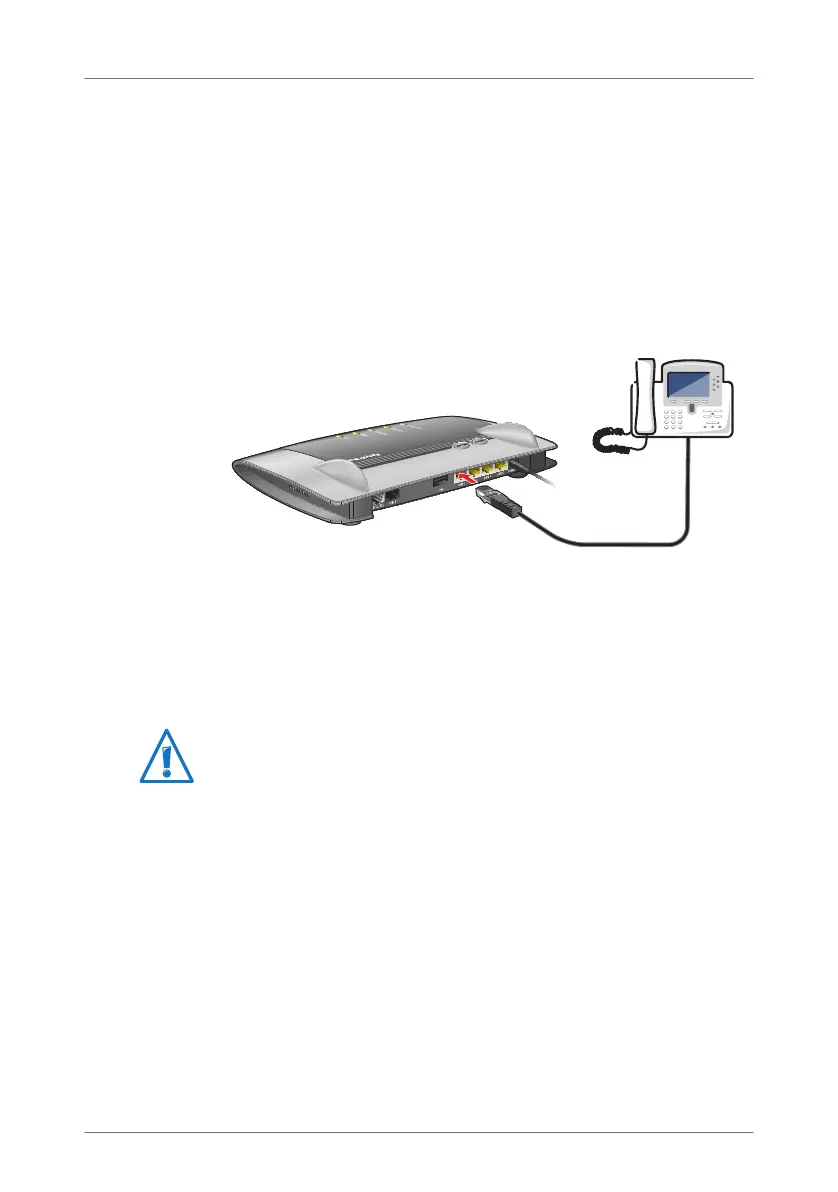

Connecting an IP telephone to the network port of the FRITZ!Box
1. Connect a network cable to the IP telephone.
2. Connect the free end of the network cable to a LAN port
on the FRITZ!Box.
The IP telephone is now connected with the FRITZ!Box.
INFO
WLAN
Festnetz
Internet
Power
/
DSL
Info
WLAN
Power
/
D SL
Fixed Line
Internet
You cannot make calls with the IP telephone yet. The IP tele-
phone still has to be configured in the FRITZ!Box (see
page 45).
FRITZ!Box_7360-en.fm Seite 41 Mittwoch, 15. Februar 2012 5:21 17

AVM FRITZ!Box 7360 Specifications

General

Plug and Play	Yes
Internal memory	512 MB
RJ-11 ports quantity	2
Ethernet LAN (RJ-45) ports	4
Bandwidth	2.4 GHz
Rack mounting	No
Ports quantity	The number of ports or external interfaces to which other equipment can be connected.
Frequency range	2.4 - 2.4835 GHz
Power supply type	DC/11W
Dimensions (WxDxH)	226 x 159 x 47 mm
USB connector type	USB Type-A
WLAN data transfer rates supported	300 Mbit/s
Cables included	LAN (RJ-45), Phone (RJ-11)
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Firewall security	IPv6
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2
Power supply	11 W
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (typical)	8 W
Product color	Red

Weight and Dimensions

Depth	159 mm
Width	226 mm
Height	47 mm
Weight	- g
