AVM FRITZ!Box 7360 User Manual

12
Buttons
1.3 Buttons
The FRITZ!Box has two buttons on the upper side of the hous-
ing.

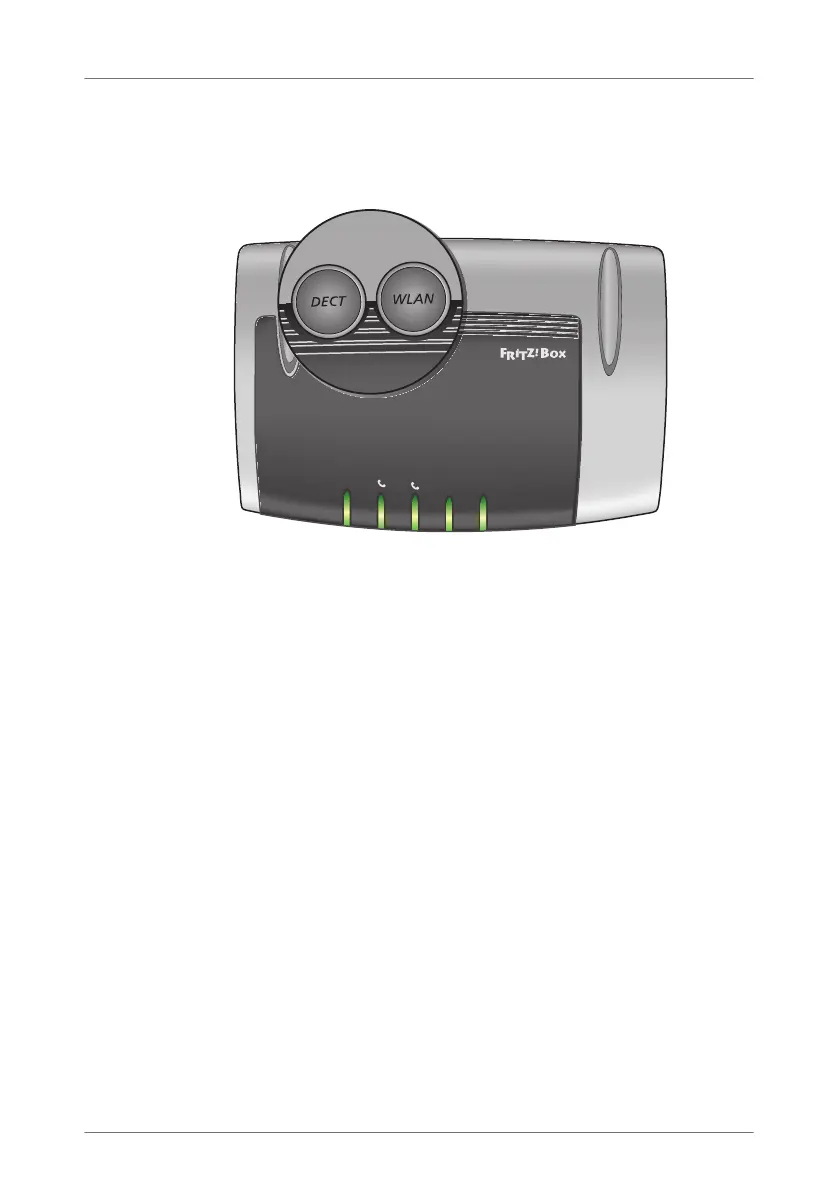

FRITZ!Box buttons
WLAN Button
With the WLAN button you can turn the WLAN function on and
off and connect wireless devices with the FRITZ!Box by WPS.
WPS is an easy way to establish secure wireless connections
(see page 26).
DECT Button
With the DECT button you can register cordless telephones on
the FRITZ!Box (see page 38) and page misplaced cordless
handsets (see page 91).
1.4 LEDs
Five LEDs are built into the top of the FRITZ!Box 7360, which
flash or light up to display various connection statuses and
events.
Fixed LineFixed Line
InternetInternet
PowePower / DSLDSL
WLANWLAN
INFOINFO
FRITZ!Box_7360-en.fm Seite 12 Mittwoch, 15. Februar 2012 5:21 17

AVM FRITZ!Box 7360 Specifications

General

Plug and Play	Yes
Internal memory	512 MB
RJ-11 ports quantity	2
Ethernet LAN (RJ-45) ports	4
Bandwidth	2.4 GHz
Rack mounting	No
Ports quantity	The number of ports or external interfaces to which other equipment can be connected.
Frequency range	2.4 - 2.4835 GHz
Power supply type	DC/11W
Dimensions (WxDxH)	226 x 159 x 47 mm
USB connector type	USB Type-A
WLAN data transfer rates supported	300 Mbit/s
Cables included	LAN (RJ-45), Phone (RJ-11)
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Firewall security	IPv6
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2
Power supply	11 W
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (typical)	8 W
Product color	Red

Weight and Dimensions

Depth	159 mm
Width	226 mm
Height	47 mm
Weight	- g
