AvMap G7 Farmnavigator – User Manual

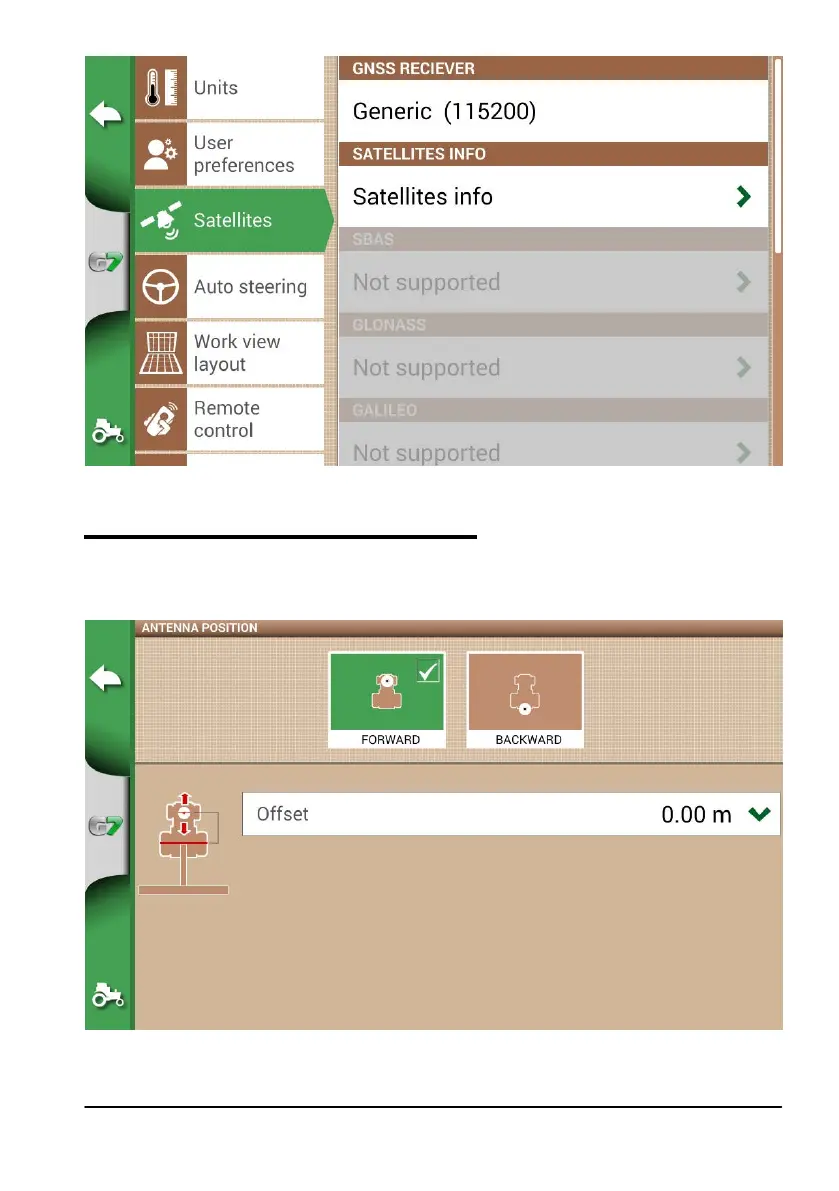

Figure 2.4.c Satellites conguration page
2.4.4 GPS antenna position on the tractor
This parameter refers to the position of the GPS antenna in relation to the posterior axel of the tractor.
1. Enter the distance value accurately and select “FORWARD” if the antenna is located in front of the
axel; select “BACKWARD” if it is located behind the rear axle.
Figure 2.4.d Antenna position in relation to rear axle
