new A-B line;
- Locate the line on your current position, maintaining A-B direction;
- Reuse A-B lines with an implement which has a di󰀨erent width: locate the implement at the
starting point, use the “Magnet” function to move the origin of A-B lines on that point.
To use “Magnet” function:
1. Tap “A-B”;
2. Tap “Magnet”;

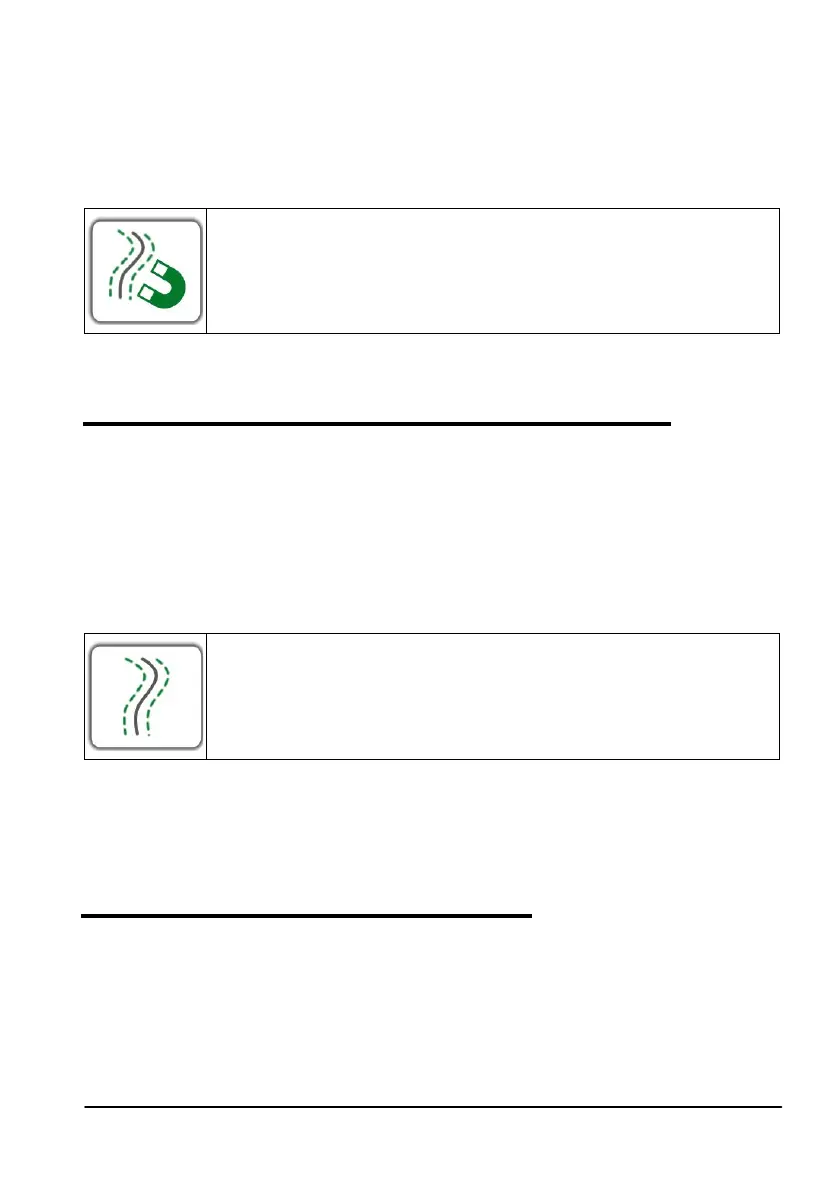

Magnet
Move the A-B lines to the antenna position.
Table 4.7.a “Magnet” function
3. A-B lines will be moved to the exact position of the tractor.
4.8 Move A-B line according a precise value, “Street” function
“Street” function allows you to move A-B line according to a precise metrical distance. The
repositioning of the A-B lines starts from the tractor current position.
This function is essential when you need to:
- Leave a precise distance between one A-B line and the other;
- Create “Streets” in sowing area, usually used for irrigation;
- Split the parcel into precise portions.
In order to use “Streets” function:
1. Tap “A-B”;
2. Tap on “Street” icon;
Streets
Move A-B lines few meters away from the antenna position. The maximum
allowed movement is equal to half the width of the implement.
Table 4.8.a ‘Streets’ Functions
3. Set the metrical distance according to which the row will be moved;
NOTE: the distance will be calculated starting from the antenna position (which corresponds to the
position of the tractor);
4. Conrm to apply the movement.
4.9 Connect an external device to control sections
G7 Farmnavigator allows you to connect third-party external devices to make an automatic control
of the section. This feature can be used with implements such as:
- Weeding barrel
- Spreaders
- Planters
In the appendix, there is a list of supported devices.
The procedure to be performed for the correct conguration is as follows:
