18 HMX Extender System Installer/User Guide

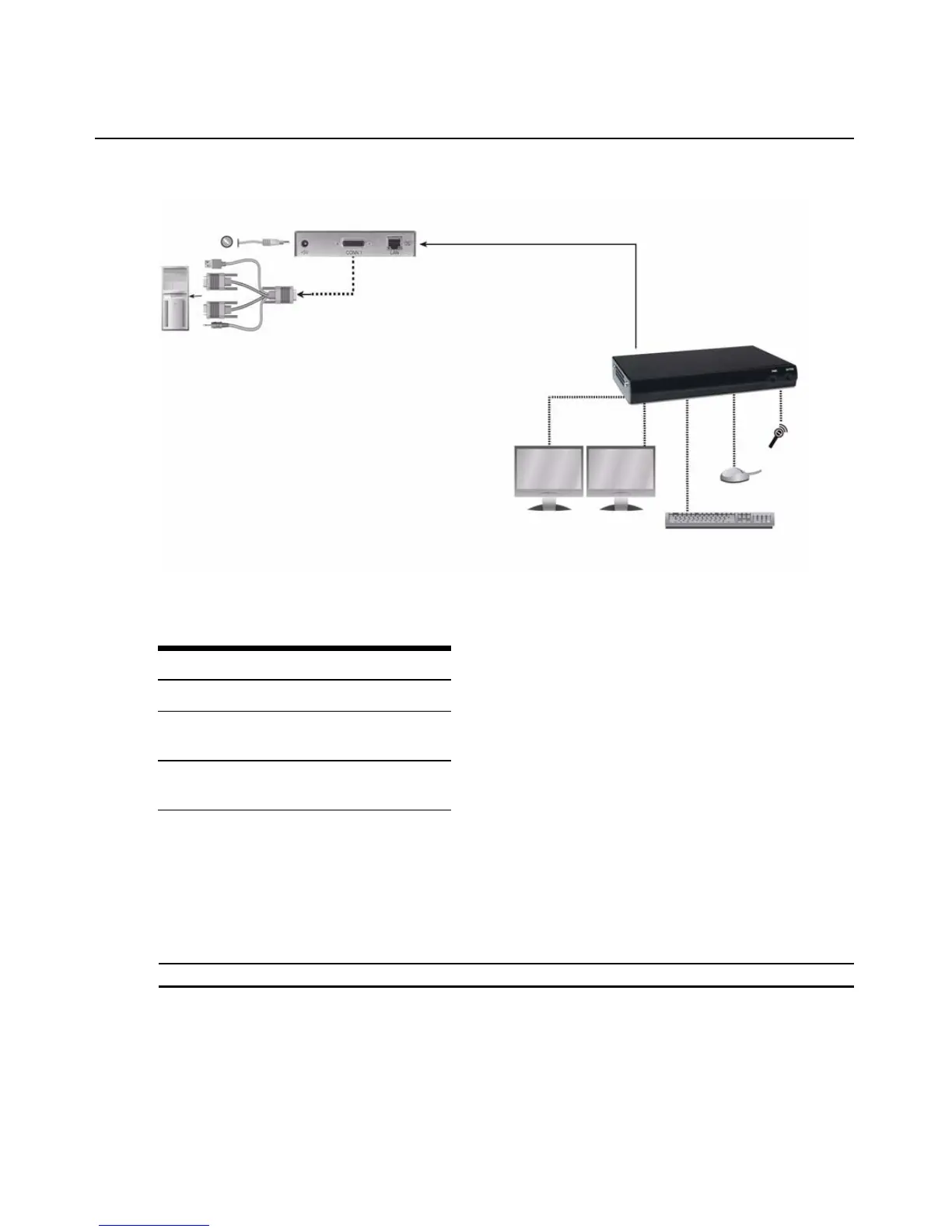

Figure 2.5: Point-to-Point Installation (HMX 2050 User Station)
To connect the HMIQSHDI or HMIQDHDD transmitter:
Before connecting the HMIQSHDI or HMIQDHDD transmitter to the remote workstation, ensure
that the resolution and the refresh rate of the remote workstation are supported by the user station.
Set the screen resolution and refresh rate of the remote workstation. Unsupported settings will
cause blank video at the receiver.
NOTE: Please see Appendix A for information on supported resolutions and refresh rates.
1. Turn off the remote workstation.
2. Connect the USB connector on the transmitter to the corresponding USB port on the
workstation.
Table 2.6: Figure 2.5 Descriptions
Number Description
1 Remote Workstation
2 HMIQDHDD
Transmitter
3 HMX 2050 User
Station
2
1
3

Avocent HMX Specifications

General

Type	KVM extender
Resolution Support	Up to 1920x1200
USB Support	Yes
Distance	Up to 100 meters
Video Interface	DVI
Audio	Yes
Power Supply	External
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
