Chapter 2: Installation 7

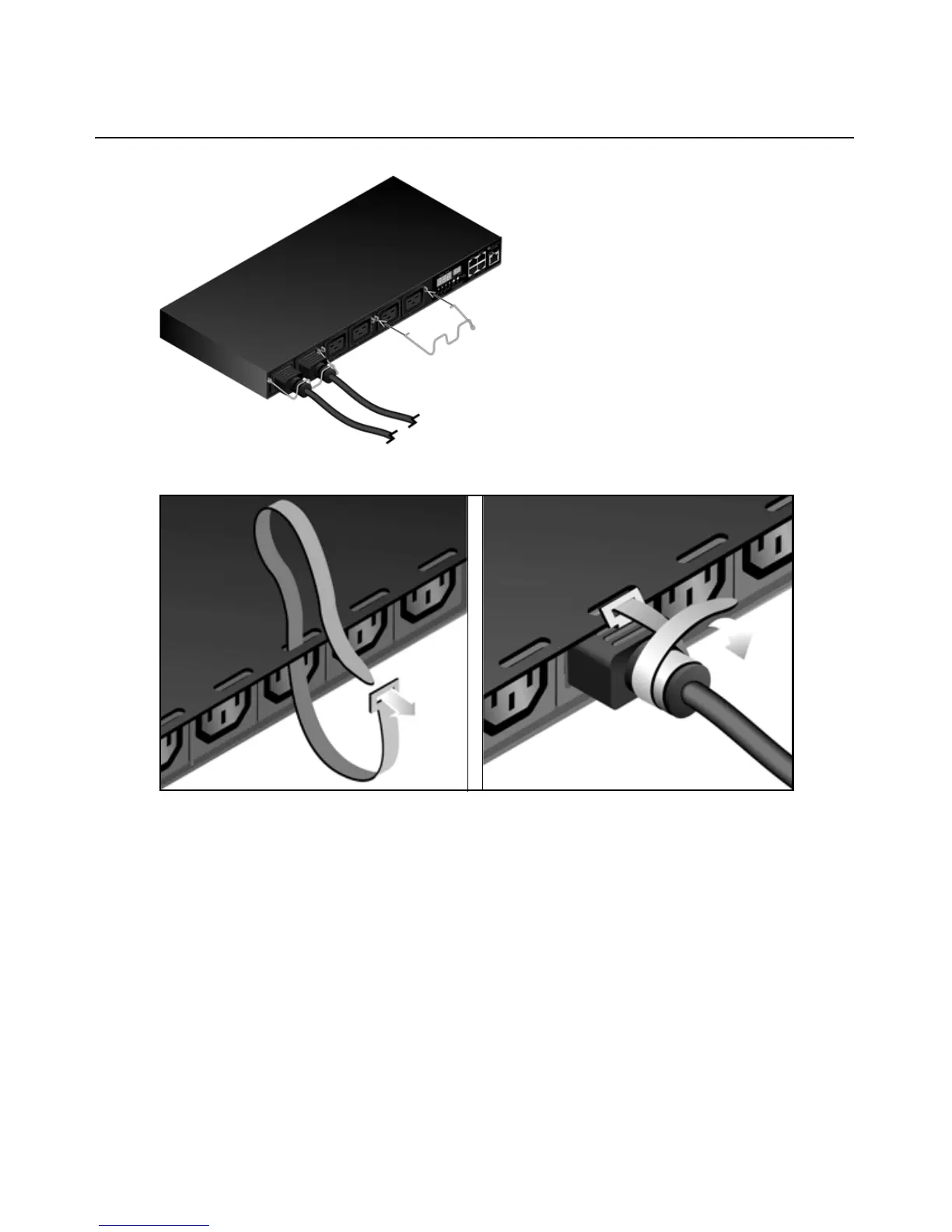

Figure 2.3: Attaching Retention Clips for a 6-port Horizontal PM PDU
Figure 2.4: Attaching VELCRO
®
Retention Strips for a Horizontal PM PDU
Mounting a vertical PM PDU
Rack mounting using the toolless keyed mounting hardware
Locate the two pre-installed round plastic keys on
the far ends of the back of the PM PDU. Line up
each key with the large end of the keyhole-shaped mounting socket on each end of the rack. Insert
the keys and then pull down to lock the PM PDU in place. Use the provided retention clips or
VELCRO strips to secure the power cords to the PM PDU.
Rack mounting using the universal mounting brackets
Locate the four pre-installed machine screws
on the ends of the back of the PM PDU. Remove
these four screws, leaving the the plastic keys installed. Using the same screws you just removed,
attach the L-shaped universal mounting brackets to the PM PDU, making sure they are in the
