Oxygen 5
Pag. 10

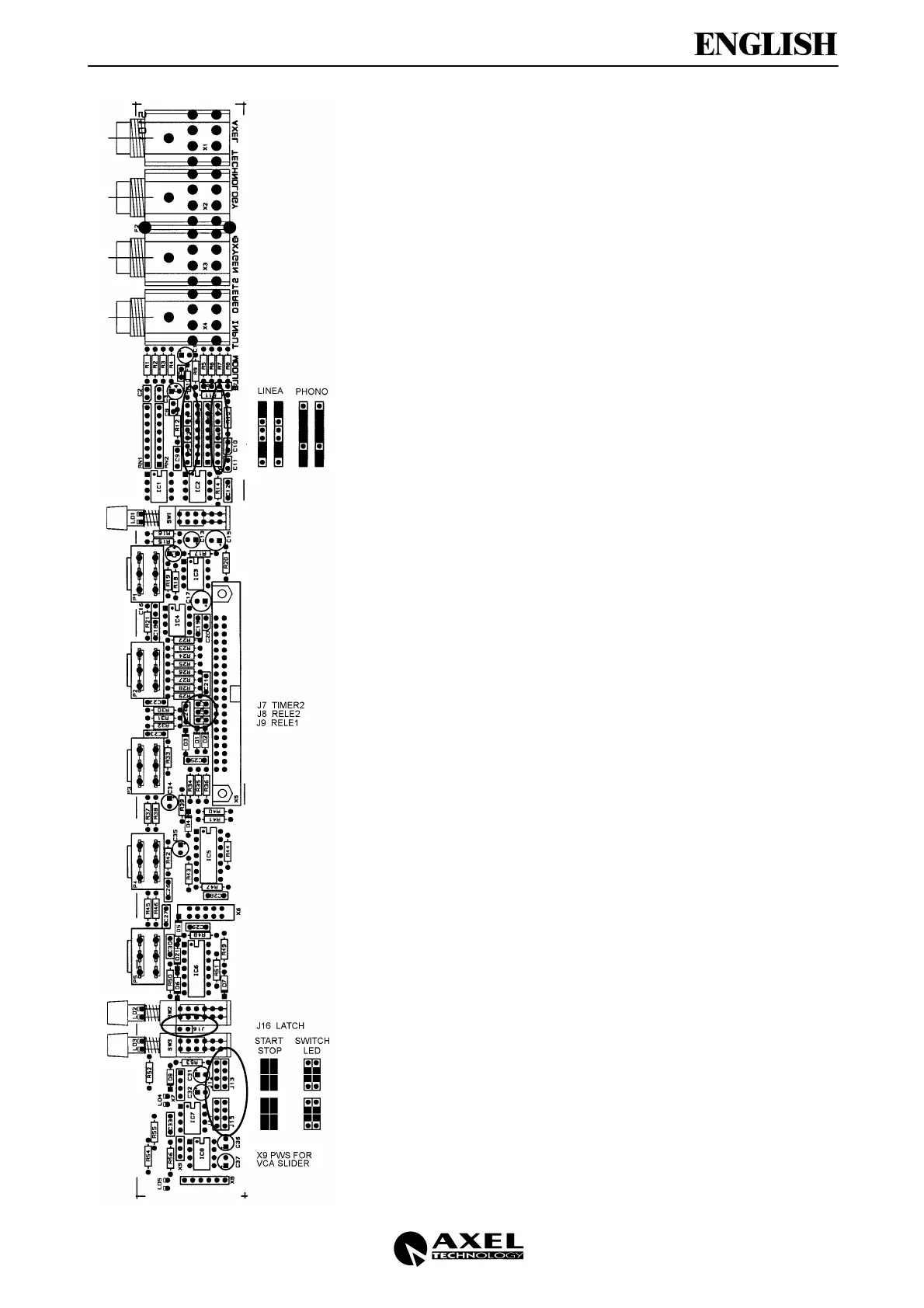

Phono/line input B setting: see J1, J2, J3, J4, J5, J6 on figure
If J12, J13, J14 and J15 (placed at the bottom of the board) are
in the Start/Stop configuration (INDIRECT mode), you can get the
following functions:
if J7 is present, the Start/Stop key starts up also the Timer 2
if J8 is present, the Start/Stop key starts up also the Relais 2
if J9 is present, the Start/Stop key starts up also the Relais 1
if J16 (Latch) is present, the interface features a permanent,
optoisolated Start/Stop command
if J16 (Latch) is not present, the interface features an impulsive,
optoisolated Start/Stop command
If J12, J13, J14 and J15 (placed at the bottom of the board) are
in the SWITCH LED configuration (DIRECT mode), you can drive
the led by an external tension (pin 5 – 6 of interface) and the
Start/Stop button is linked to the 1 – 2 pins. In this case, the functions
related to J7, J8, J9 are disabled.
