7 POWER SUPPLY

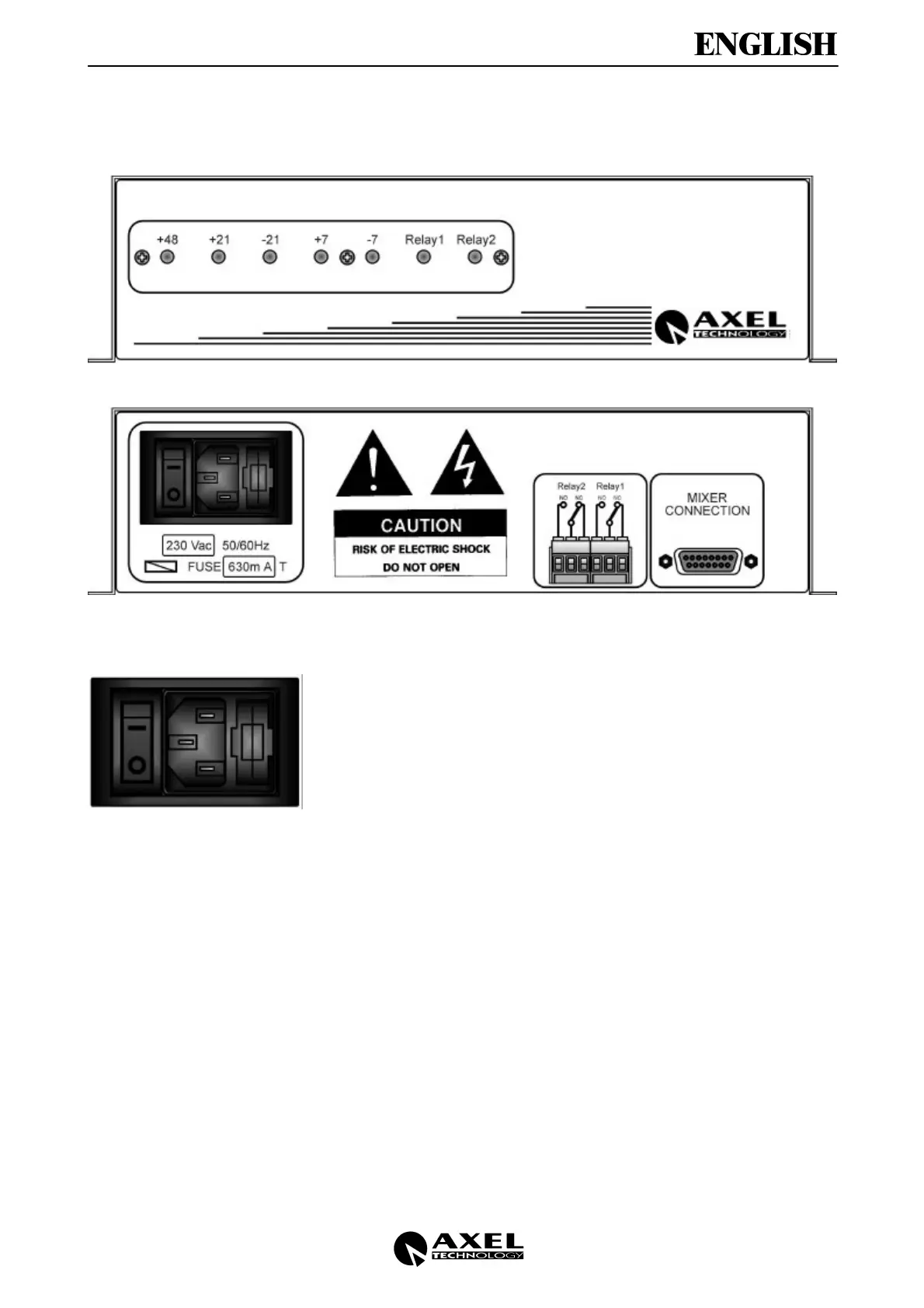

FRONTAL VIEW
REAR VIEW
7.1 AC VOLTAGE (110-220 VAC)
Attention! Before starting the power supply, please check that the line
supply voltage corresponds to that indicated in the rear of power supply.
Power supply is ex-work set for 220 VAC (if not otherwise required).
To change the supply voltage:
• disconnect every cable
• open the power supply cover
• select the required voltage (110 o 220VAC) through the internal switch
close to the line socket
• close up the power supply cover through all the screws
• replace the two 1 A T (slow blow 220 Vac) with two 2 A T (slow blow
110 Vac)
• connect the line cord only
• switch on the power supply
• verify that every led on the front panel switch on (except relais 1 and 2)
• switch off the power supply
• connect the mixer to the power supply
• switch on the power supply
• verify the correct console operation
