Oxygen 5
Pag. 14

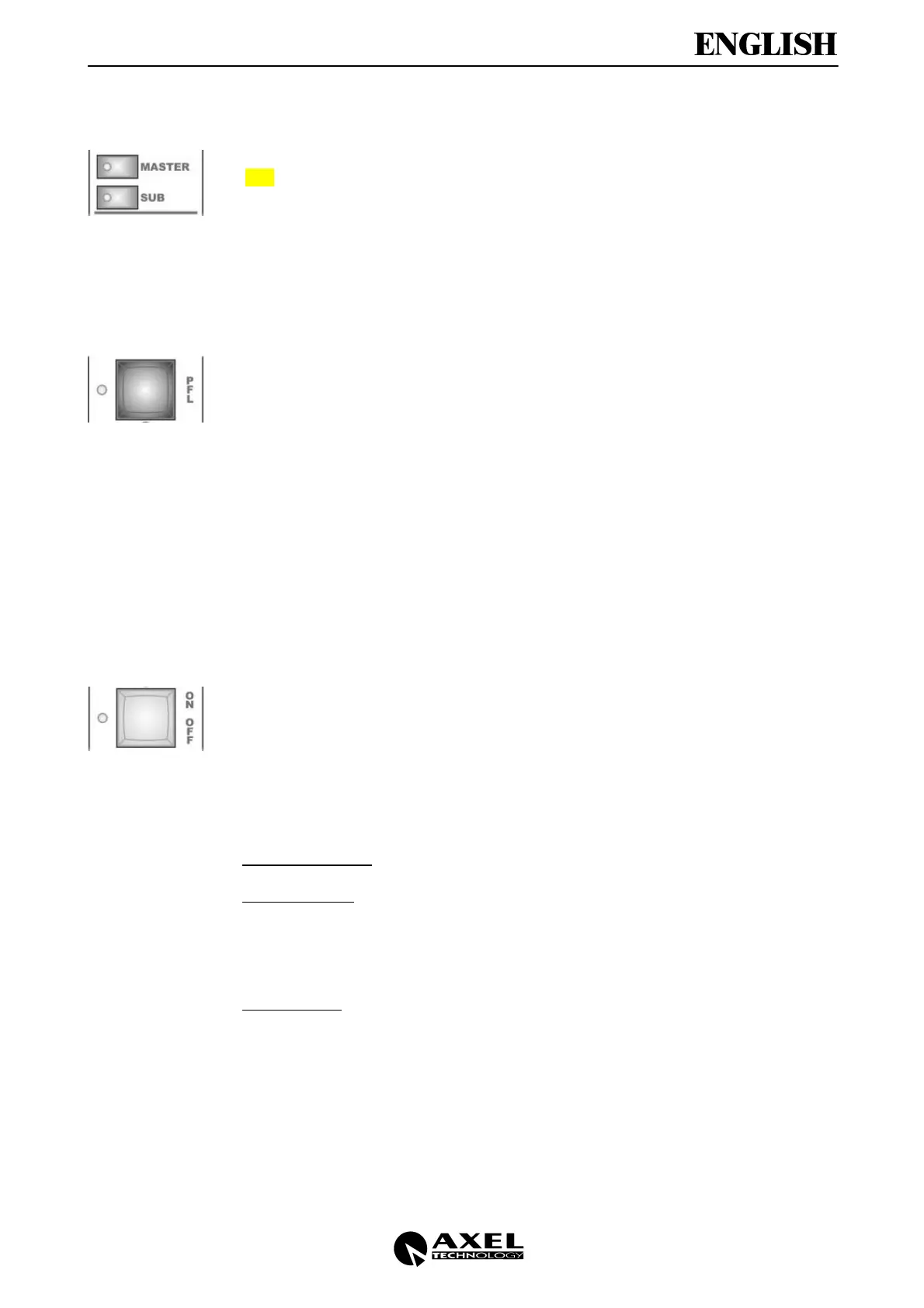

3.11 MASTER AND SUB SWITCHES
MASTER and SUB switches connect the module to the Master and/or Sub outputs.
The leds inside the switches turn on according to the pressed buttons.
By using the Master/Sub assignment, you could, f.i., record an interview to Yr guest in
studio while another musical program is on air. To get this, please assign only to the Sub
output the Mono channels involved in the recording session and to Master output the ones
providing the on air program. See chapter ‘SUB module’ for Sub connections.
NOTE: Master/Sub output are fed only if the module is in the ON state
3.12 PFL BUTTON
It enables the pre-fader listening of the channel. The led light shows that the function is on.
Please note that every time a new selection is called (or when the button PFL RESET on
the Master module is pressed) the previous PFL is reset (i.e. it is not possible to listen to
the sum of different PFL).
PFL function is independent from the On/Off module state.
Press the PFL RESET key on the Master module to disable any PFL.
PFL signal is available on the Master module, in the Control Room and Studio sections,
where the PFL signal has priority on the other selections. For instance, if both PFL and
Master are selected in the CTRL Room listening section, headphones and loudspeakers
reproduce Master signal till a PFL will be called by one or more input modules. Once the
PFL terminates, the sound reproduction will switch automatically on the previous source
(Master).
The PFL Right and Left channels are showed on the VU meters whenever a PFL is active.
3.13 ON/OFF FUNCTION
The On/Off button enables/disables the main module output toward Master and/or Sub
outputs (depending on the selected Master/Sub switches).
If the module is on the ‘Off’ state no signal is broadcast even if the slider is open.
Please note that the On/Off state doesn’t involve the Talk Back communications and the
phone call answering performed by the same microphones connected to the mono
modules.
Through internal jumpers setting (see ‘module configuration’ paragraph at the end of this
chapter), you can choose one of the following On/Off operation modes:
• Independent mode: On/Off button only enables/disables the module.
• Transfer mode: the opening of the slider brings the module into the ON state (the led
near the key turns on) and vice versa. You can also continue to use the ON/OFF
button, that will modify the module operation state (On/Off) according to the state
reached by the slider. E.g. if the slider opening has brought the module into the ON
state, through the key you can get back the OFF state even if the slider is still opened.
• Remote mode: The On/Off state is regardless of the slider position. You can control
the On/Off function either in local mode (through related button) or in remote mode,
through an external device (‘DJ Console’ by Axel Technology) linked to the SUB
module. Thanks to it, the speaker (normally located in studio) is able to remotely
switch the mixer module related to his microphone. Moreover, through a mixer-like
slider he can fade the level of the on-air musical program (for speech interventions
mixed to the songs). A Talk Back function is also provided for communications from
Studio to Control Room.
