Axel Oxygen 5 Operating Manual

Oxygen 5
Pag. 32

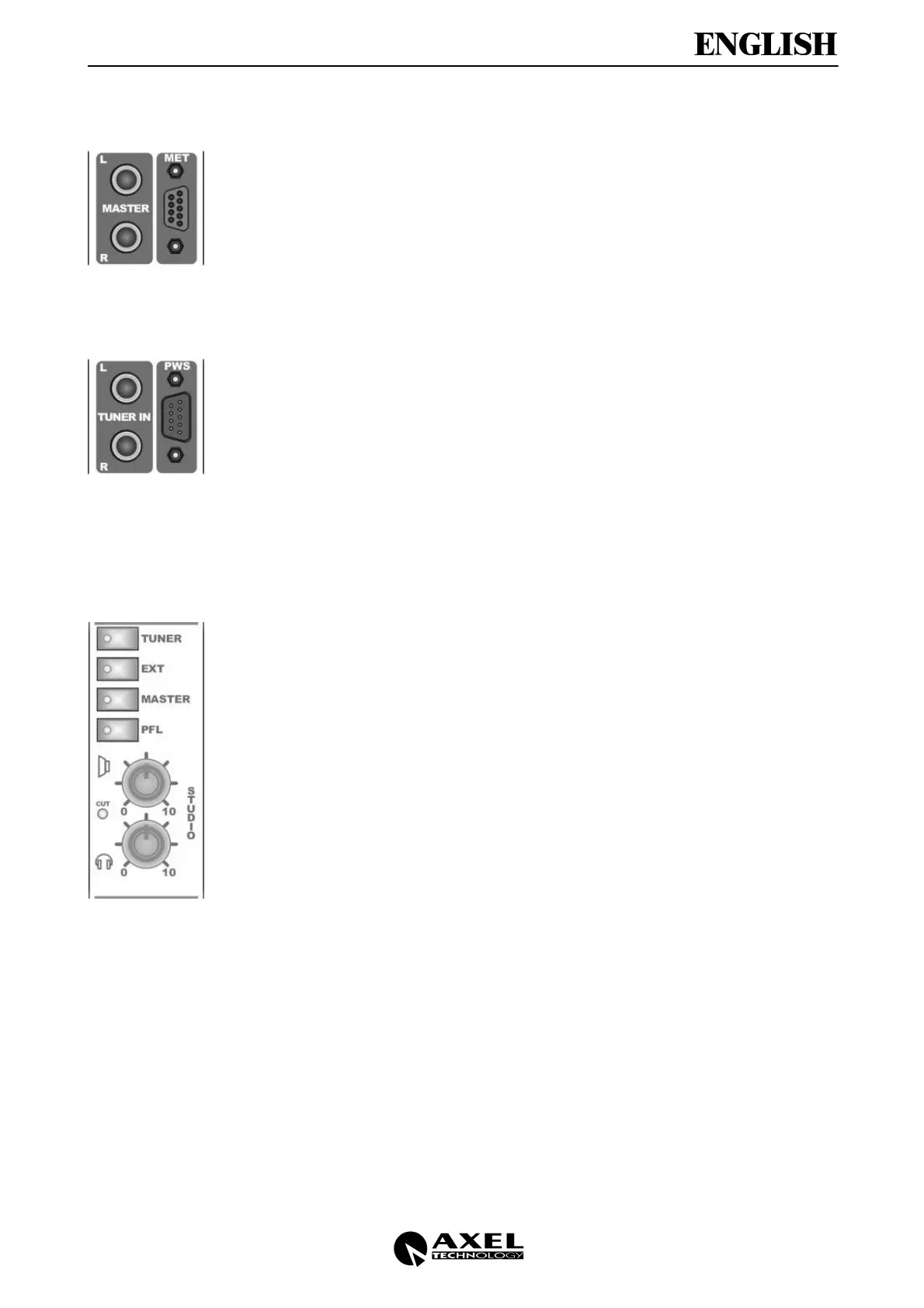

6.1 MASTER OUTPUT
The two output sockets are electronically balanced on female stereo Jack with 0 dB gain.
The pin-out presents standard configuration:
• Sleeve  Ground
• Tip  Signal
• Ring  Return
We suggest to use balanced links.
6.2 TUNER IN
The
TUNER
IN
input is set to Line level, electronically balanced on two female Jack.
TUNER IN allow to connect to the mixer an external radio receiver to monitor the
broadcast signal.
You can adjust the Tuner IN level in the range ±6 dB through the special trimmer.
The pin-out presents standard configuration:
• Sleeve  Ground
• Tip  Signal
• Ring  Return
We suggest to use balanced links. See appenix A fo connection schemes.
6.3 STUDIO SECTION
The STUDIO section allows the listening (on the studio loudspeakers and headphones) of
the source selected by the four buttons TUNER, EXT, MASTER and PFL.
If you press simultaneously two or more selections (e.g. Tuner and Master), you can listen
to the sum of the selected sources.
We remember that the EXT signal comes from the Sub module and that the Tuner level
can be regulated through the related trimmer.
The two potentiometers of Studio section allow the independent level controls of the studio
headphones and of the studio loudspeakers.
In particular, the Studio headphones signal has separate output : the stereo jack placed
either in the top or in the bottom of the module. These output are preamplified (so you can
more than one headphone at the same time).
Loudspeaker stereo output is on +15 dB level.
The CUT led switches on every time audio reproduction on the Studio loudspeakers is cut
off. This ‘mute’ function is useful in order to avoid ‘Larsen effect’ when Studio microphones
are on.
We remember that this function is settable by the Mono modules.
Regarding PFl selection, when:
• PFL button and one or more of TUNER, EXT, MASTER buttons are selected at the
same time
• PFL listening is called by a module
the listening referred to the TUNER, EXT, MASTER sources is interrupted and the PFL
signal only is reproduced. It means: if the PFL button in the Studio section is pressed, the
PFL signal has the priority over other sources that could be selected at the same time.
In particular,
The pin-out of Loudspeakers and headphones presents standard configuration:
• Sleeve  Ground
• Tip  Right
• Ring  Left
