Oxygen 5
Pag. 29

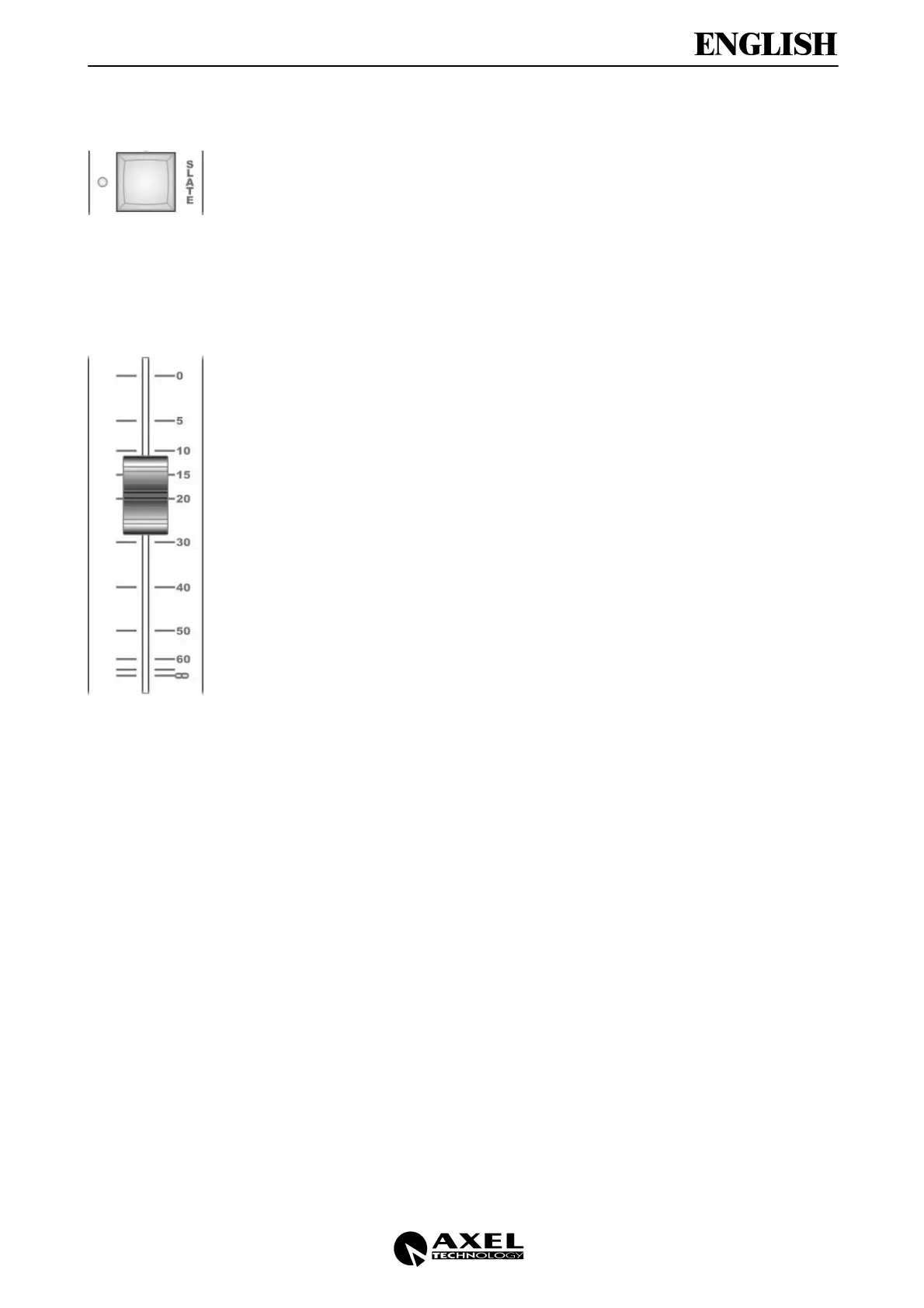

5.15 SLATE BUTTON
Through the SLATE button you can send to the Sub output the signal coming from the
microphone built-in in the Master module or from one of the microphones linked to the
Mono modules (if you set properly the Master e Mono modules).
This function can be especially useful when you need to add ‘voice announcements’ at the
beginning of the recorded programs (signal provided by the Sub output, eventually
repeated by the two Rec Out sockets).
5.16 FADER
The slider is one of the most important device in the mixer. For that reason, Axel
Technology uses only slider by ALPS, one of the best manufactures in the field.
The N type is provided on series. On demand, we can provide the K series and the K/VCA
series too. We highly recommend these as the slider does not act directly on the audio
signal but controls an high quality amplifier (Voltage Controlled Amplifier). That allows
perfect volume control without any noise and ‘skretch’ even after years of usage.
5.17 MODULE CONFIGURATION
On the TELCO module board you find 8 Jumpers allowing different operation modes and functions.
To change a jumper setting, please:
• switch off the console (every intervention on the modules always requires the mixer switching off !)
• remove the module
• disconnect the flat cable (pay attention to the two little hooks placed at the connector edges)
• alter the setting position as showed by the following table
• connect again the flat cable and lock the hooks
• insert the module into the console mainframe
• turn on the console
Please refer to the following figure and to the ‘Factory preset jumper configuration’ chapter at the
end of this manual before altering jumper configurations.
