Oxygen 5
Pag. 18

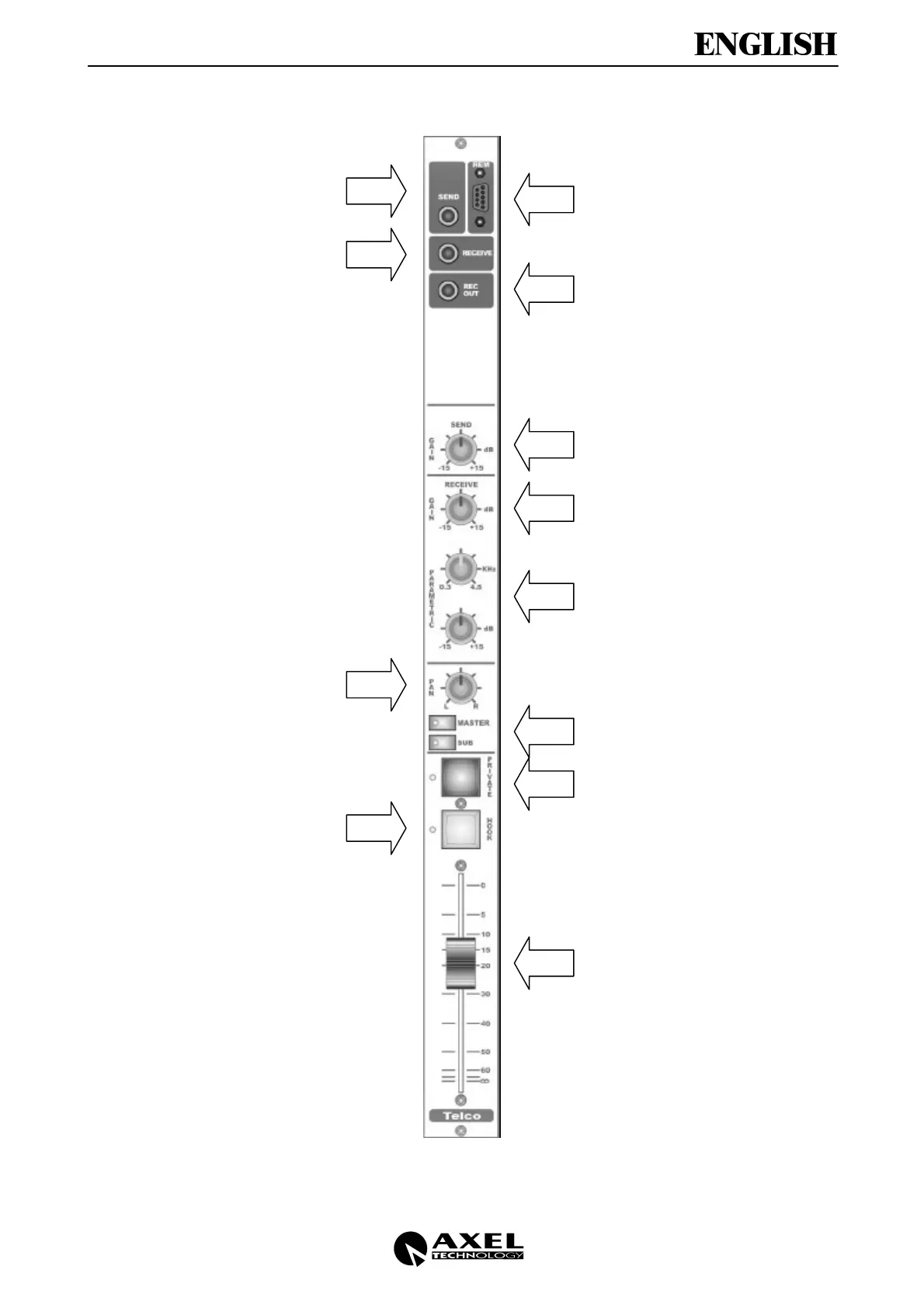

4 TELCO MODULE
SEND Output
RECEIVE Input
PAN Control
HOOK Button
REMOTE interface
REC OUT Output
SEND GAIN Control
RECEIVE GAIN Control
Equalisation Section
MASTER and SUB switches
PRIVATE Button
FADER
