11 FACTORY PRESET MODULE CONFIGURATIONS
• The following images show the factory pre-set, standard jumper setting. Please refer to these images
and to the relates chapters before altering jumper position. Please note: every intervention on the
modules always requires the mixer switching off !

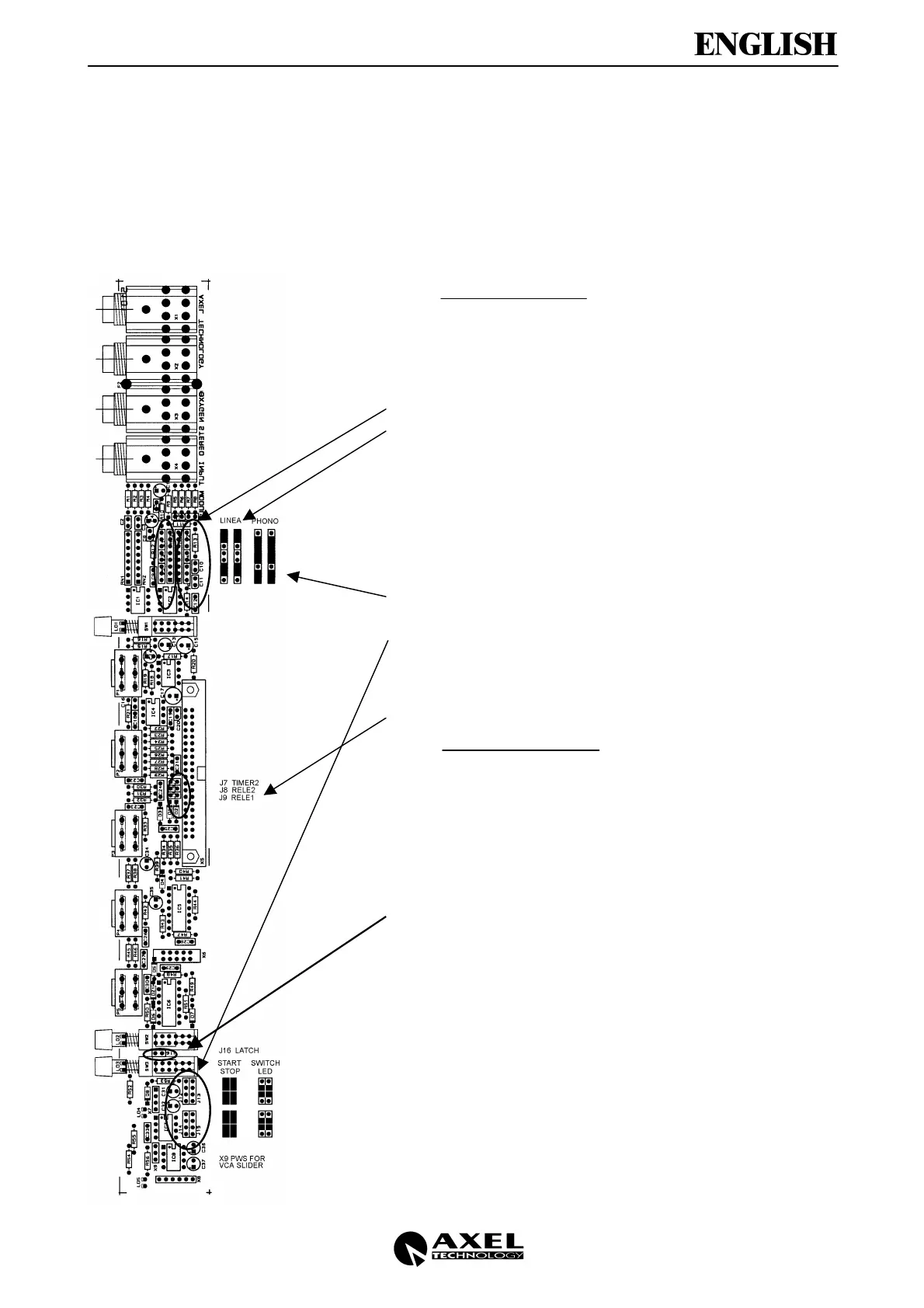

11.1 STEREO MODULE – FACTORY PRESET JUMPER CONFIGURATION
If the customer’s choice is:
• LINE for Input A and LINE for Input B:
jumpers J1, J2, J3, J4, J5, J6 are on LINE configuration
jumpers J12, J13, J14, J 15 are on START/STOP
configuration
• LINE for Input A and PHONO for Input B:
jumpers J1, J2, J3, J4, J5, J6 are on PHONO
configuration
jumpers J12, J13, J14, J 15 are on SWITCH/LED
configuration **
Jumpers J7, J8, J9 are Not Present
Jumper J16 is Present.
**
Record players need usually a “direct (clean) contact”
start command
