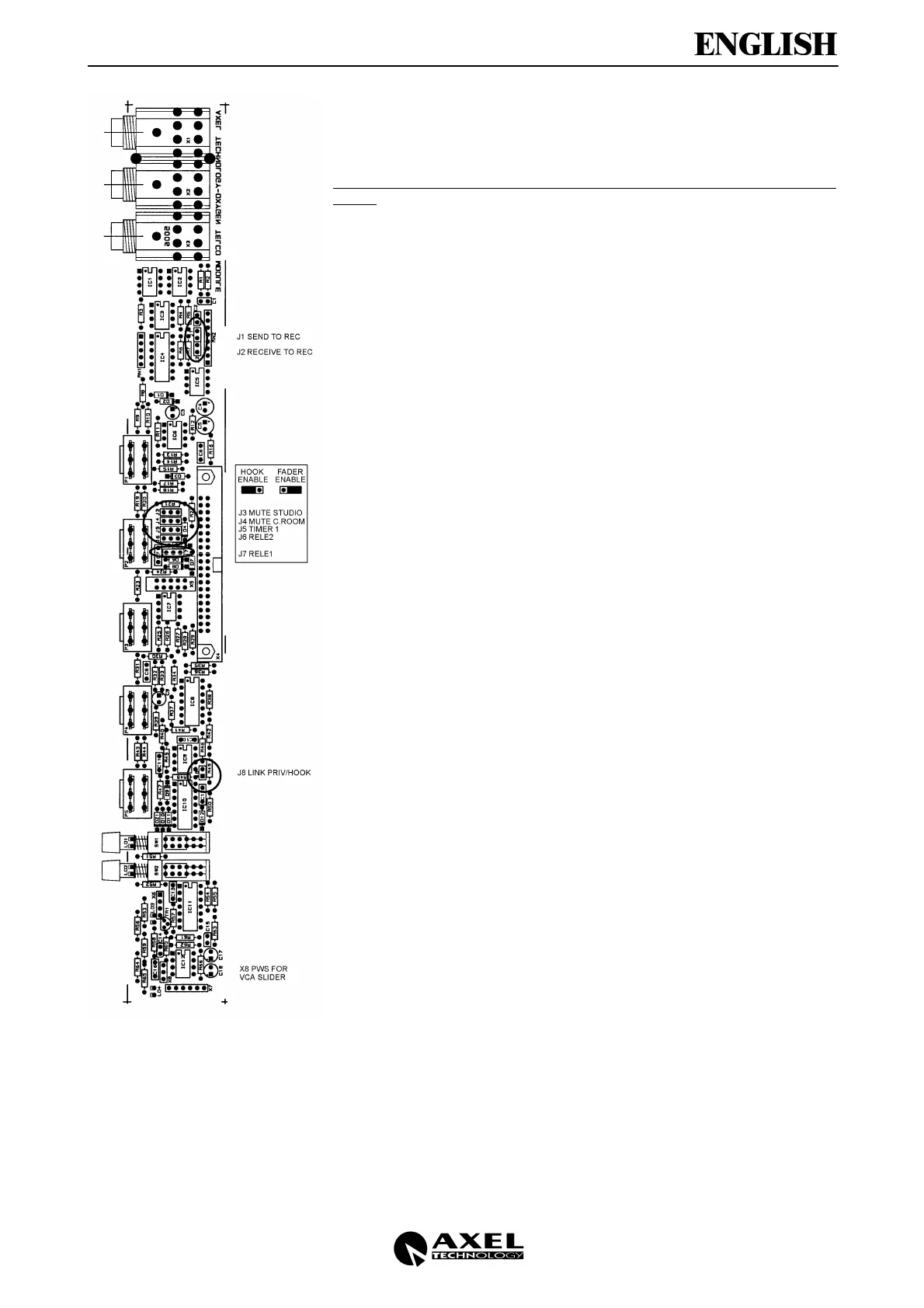

J1 enables the recording of Send signal through the Rec Out socket.
J2 enables the recording of Receive signal through the Rec Out socket.
If J1,J2 are both present, Rec Out output provides the sum of Send/Receive
signals.
If J3 is on ‘Fader Enable’ position, whenever you open the slider the Studio
monitor loudspeakers are cut off.
If J3 is on ‘Hook Enable’ position, whenever you press the Hook button the
Studio monitor loudspeakers are cut off.
If J3 is not present, no function is featured.
If J4 is on ‘Fader Enable’ position, whenever you open the slider the Ctrl Room
monitor loudspeakers are cut off.
If J4 is on ‘Hook Enable’ position, whenever you press the Hook button the Ctrl
Room monitor loudspeakers are cut off.
If J4 is not present, no function is Featured.
If J5 is on ‘Fader Enable’ position, whenever you open the slider the TIMER 1
starts.
If J5 is on ‘Hook Enable’ position, whenever you press the Hook button the
TIMER 1 starts.
If J5 is not present, no function is featured.
If J6 is on ‘Fader Enable’ position, every time you open the slider the RELAY 2
switches.
If J6 is on ‘Hook Enable’ position, whenever you press the Hook button the
RELAY 2 switches.
If J6 is not present, no function is featured.
If J7 is on ‘Fader Enable’ position, every time you open the slider the RELAY 1
switches.
If J7 is on ‘Hook Enable’ position, whenever you press the Hook button the
RELAIS 1 switches
If J7 is not present, no function is featured.
If J8 is present, whenever you press the Hook button the module get into Private
state too and vice-versa.
If J8 is not present, Hook and Private state are got independently.
