25
AXIS 231D - Configuring the Network Dome Camera

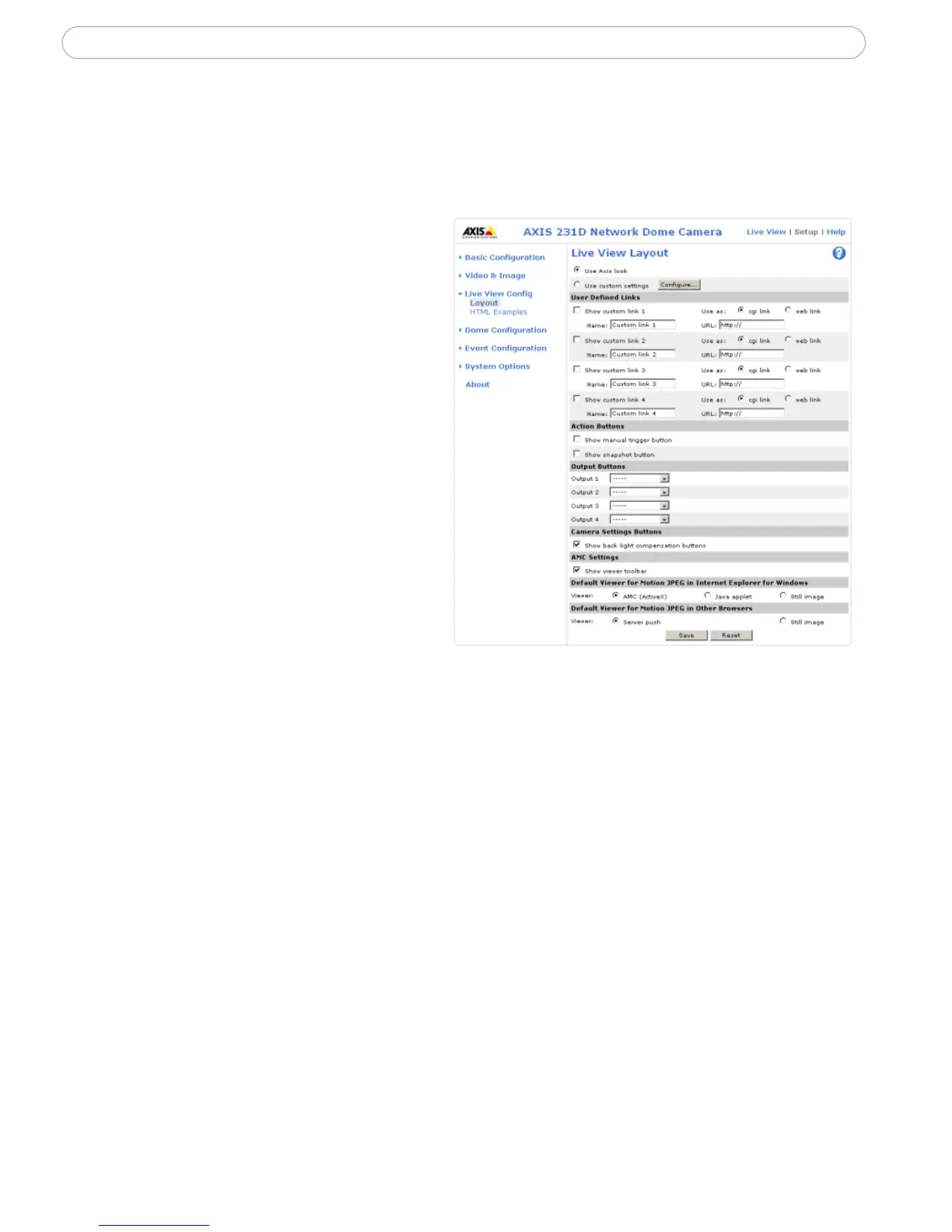

Live View Config - Live View Layout
Select Use Axis look to customize the features on the AXIS 231D Live View page to suit
your requirements.
The following settings can be customized:
• Background color - the color behind
the text and images on the page
• Text color - all text on the page
• Background picture
• Banner - shown at the top of the win-
dow
• Banner link - URL to a web address
• Logo
• Logo link (URL)
• Title - shown above the video stream
• Description - description below the
video stream
• Show setup link - if you uncheck the
Show setup link, the setup tools for the
AXIS 231D will only be accessible by
entering the full path in your browser.
The full path is: http://<ip address>/operator/basic.shtml
Custom Settings
Alternatively, select Use custom settings to use a custom web page and click Configure...
To be made available for selection in the Custom Settings setup dialog, your own web
files, background pictures, colors etc. must first be uploaded to the AXIS 231D. Once
uploaded, the files are shown in the drop-down list.
1. Click the Upload/Remove button.
2. Enter the path to the file, e.g. a file located on your workstation or click Browse.
3. Select the user level for the uploaded file. Setting the user access level means that
you have complete control over which pages can be viewed by which users.
4. Click the Upload button.
All uploaded files are shown in the list in the lower section of the page. To remove a
file, check the box provided next to it and then click the Remove button.
