46 INSTRUKCJA OBSŁUGI
____________________________________________________________________________________________________________________
The THRESHOLDS connection contains three transoptor outputs P1, P2 and P3 of
open collector type, with load capacity 25mA/24V. The connected relays are not
supplied from the balance and require additional 24V power supply unit. The
relays inputs must be protected with diodes, e.g. 1N4148.
The balance producer offers ready electronic PCB MS3K/P, which contains
RM96P relays with input voltage DC24V and output: AC250V, 8A.

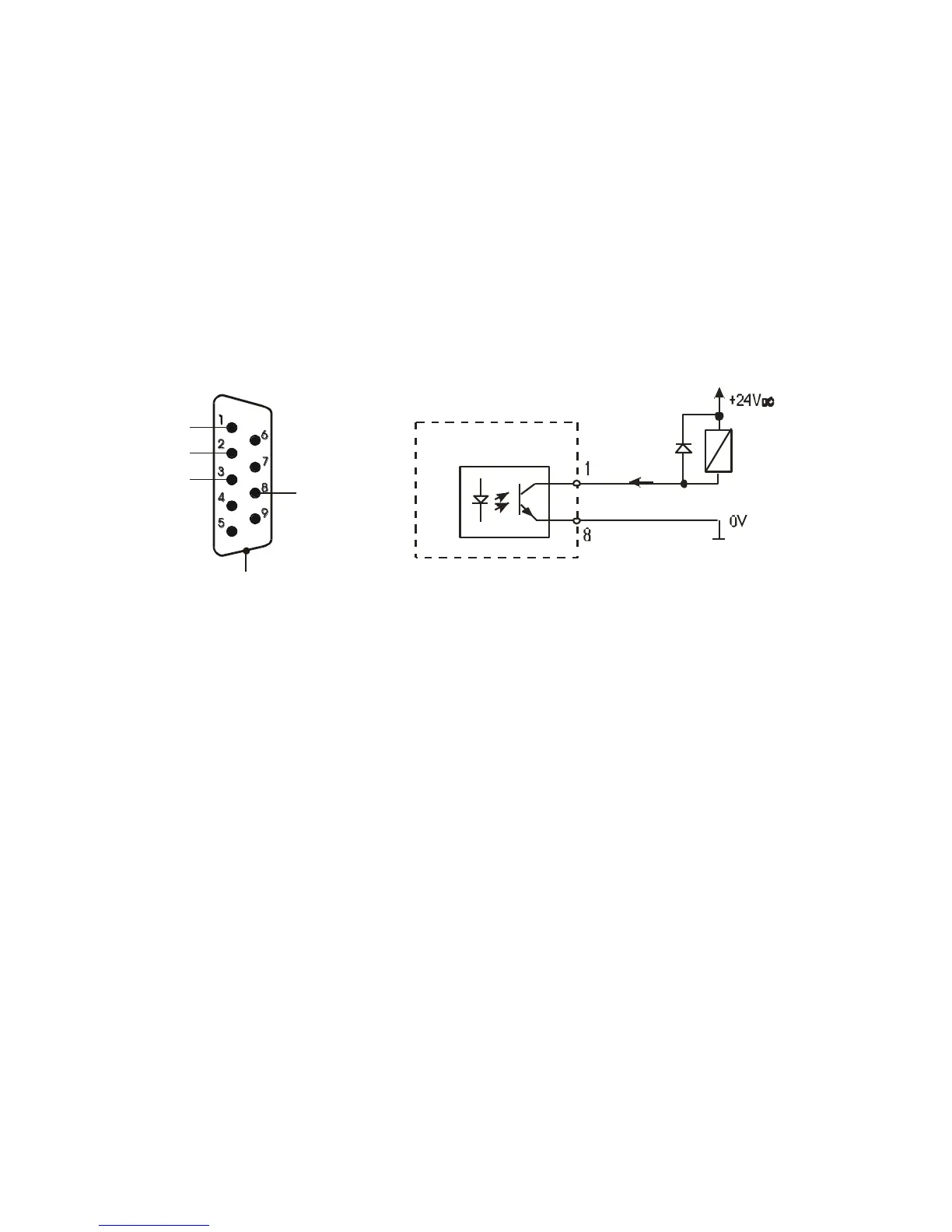

THRESHOLD connection Scheme for connecting the single relay to
THRESHOLDS connection output
