Hardware overview

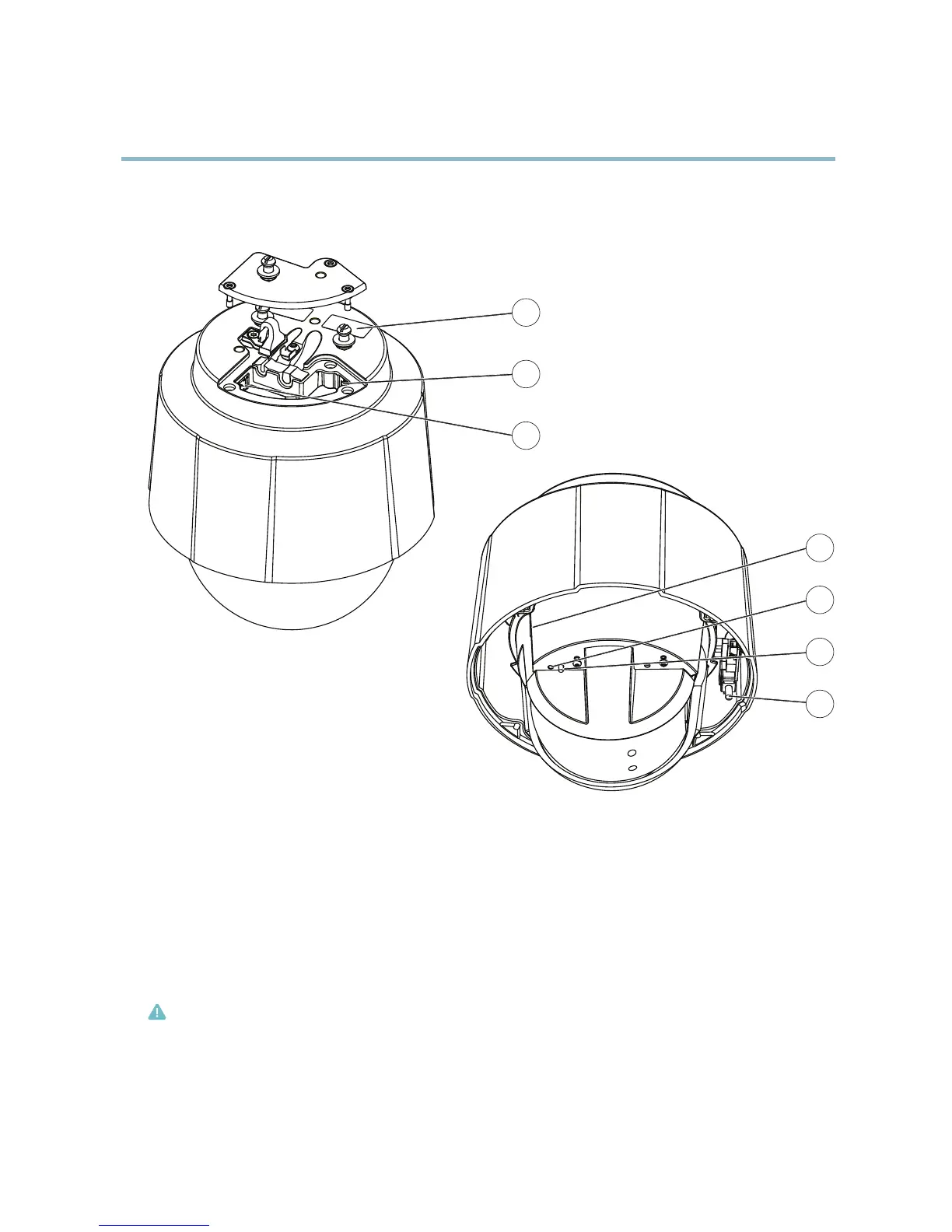

Hardware overview
1
2
3
4
5
6
7
1
Part num ber (P/N) & Serial number (S/N)
2
Network connector (PoE+)
3
Multi-connector
4
SD card slot
5
Status LED indicator
6
Control button
7
Power button
Connectors
Network connector
- RJ-45 Ethernet connector. Supports Power over Ethernet Plus (PoE+) IEEE 802.3at. Use the supplied midspan.
Caution
To protect the product against power surges, a shielded network cable (STP) must be used between the product and the
midspan. Ensure that the midspan is properly grounded.
Control button - The control button is u sed for:
4

Axis Q6032 Specifications

General

Maximum resolution	752 x 480 pixels
Supported video modes	-
Pan range	0 - 360 °
Tilt angle range	0 - 180 °
Minimum illumination	0.008 lx
Sensor type	CCD
Progressive scan	Yes
Optical sensor size	1/4 \
Digital zoom	12 x
Optical zoom	35 x
Zoom capability	420
Focal length range	3.4 - 119 mm
Placement supported	Indoor
Connectivity technology	Wired
Built-in HDD	No
Flash memory	128 MB
Internal memory	256 MB
Compatible memory cards	SD, SDHC
LED type	IR
Form factor	Dome
Mounting type	Ceiling
Product color	White
International Protection (IP) code	IP52
Interface	RJ-45
Ethernet LAN (RJ-45) ports	1
Audio system	2-way
Cabling technology	10/100Base-T(X)
DC output voltage	+12V2
Power source type	PoE
AC input frequency	60 Hz
Power consumption (typical)	30 W

Weight and Dimensions

Width	198 mm
Height	233 mm
Weight	2600 g
