Axon Fleet 3 Installation Guide
Axon Enterprise, Inc. Page 24 of 47

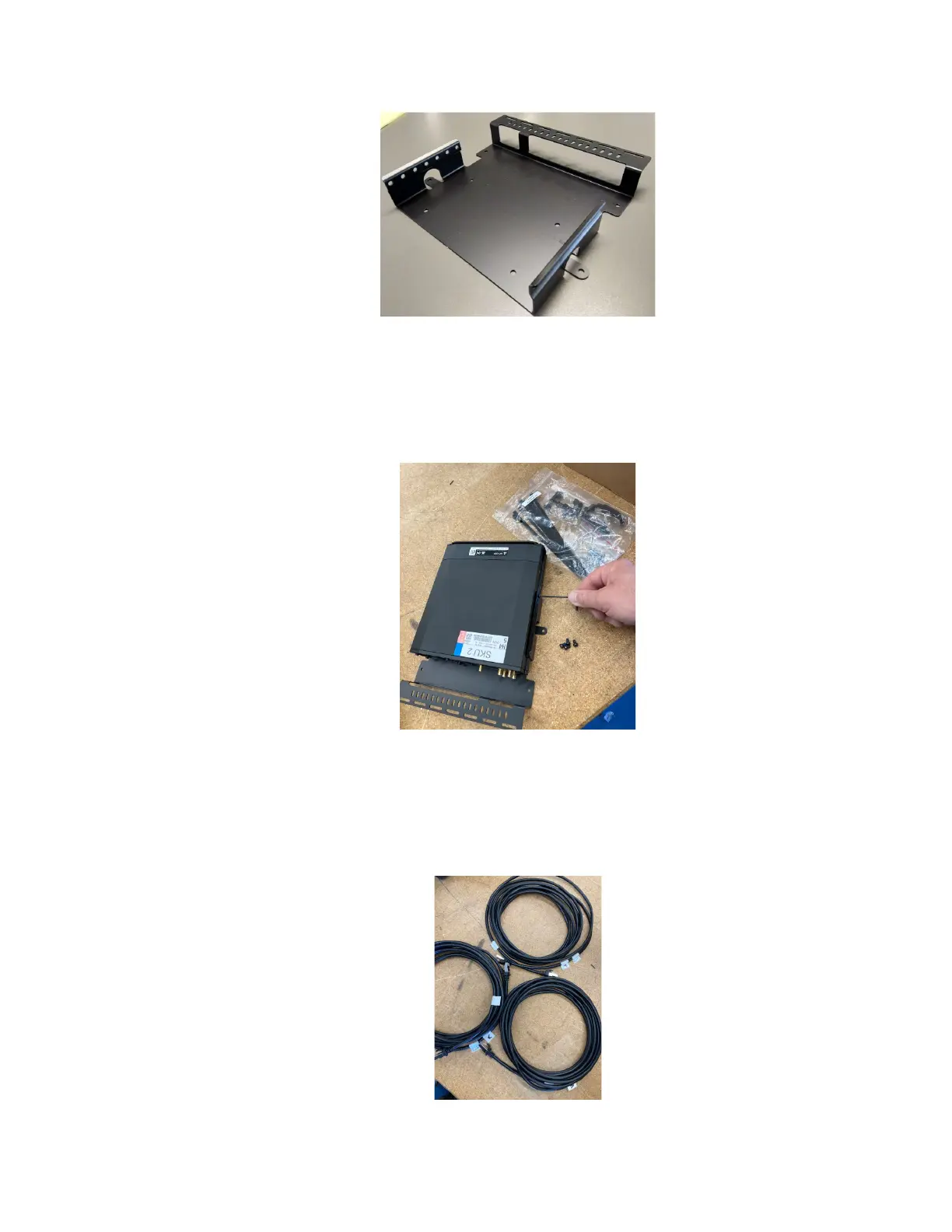

5. To use the Trunk Mount, attach hub to mounting plate using at least 4 of the socket head
screws supplied in the Hub screw kit.
Leave enough space for the cable strain relief as well as the locking plate for the
Ethernet cables.
6. Label the Ethernet cables as appropriate for front camera, rear camera, and WAN
source. There is usually a cable to make the connection between the MDC and router
too.
