Axon Fleet 3 Installation Guide
Axon Enterprise, Inc. Page 34 of 47
Installing the Pigtail Support Brackets

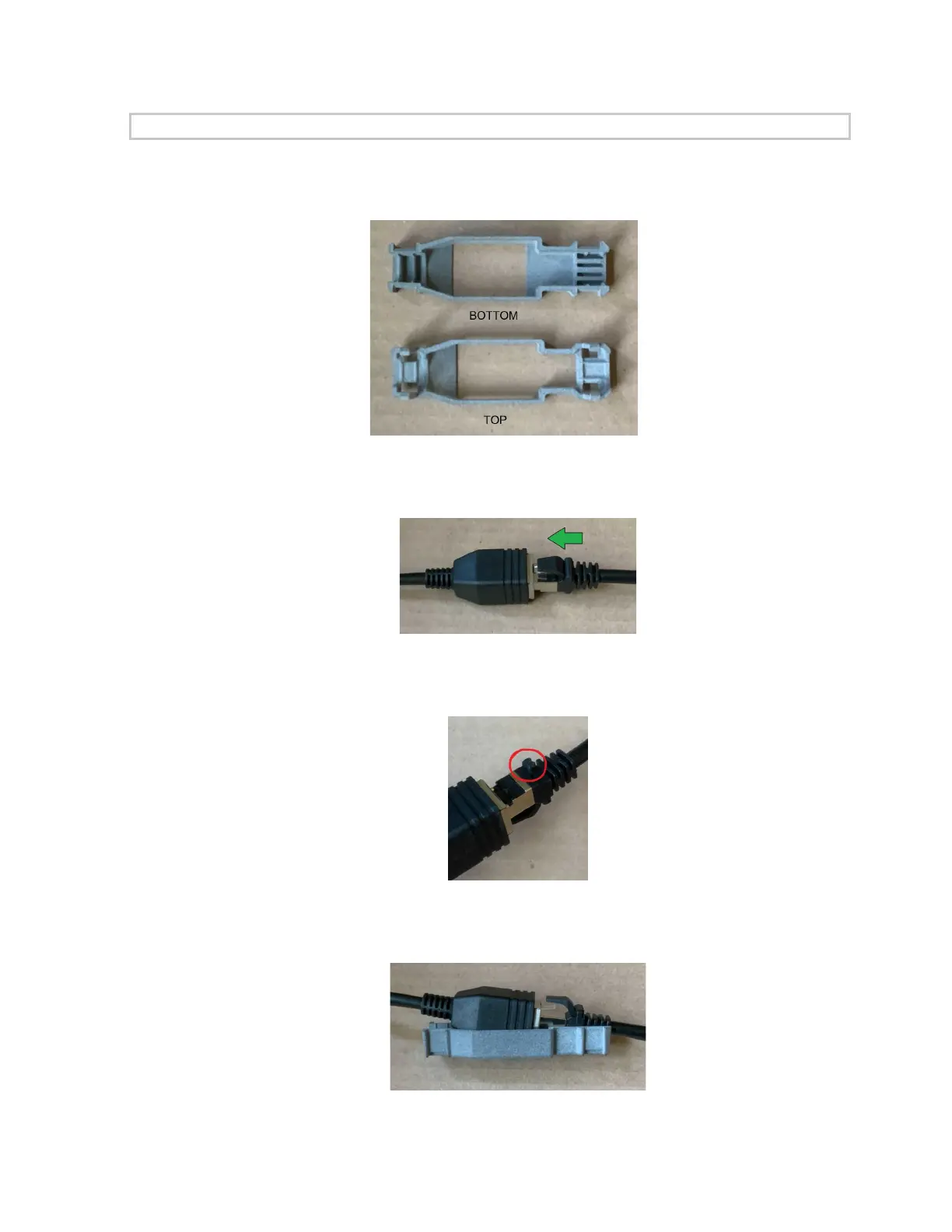

Use the following instructions to secure the camera connectors. Get the top and bottom
pigtail support brackets, as shown in the following image, and wiring harness cloth tape.
1. Plug in the male cable connector to the pigtail connector, making sure it is pushed in as
much as possible.
2. Locate the single tab on the bottom of the cable connector. This will interface with the
wall on the pigtail support bottom bracket.
Angle the tab of the connector into the bottom housing and will applying some light
pressure, push the main pigtail over mold and strain relief into the opposite end.
