Azbil C15

7-9

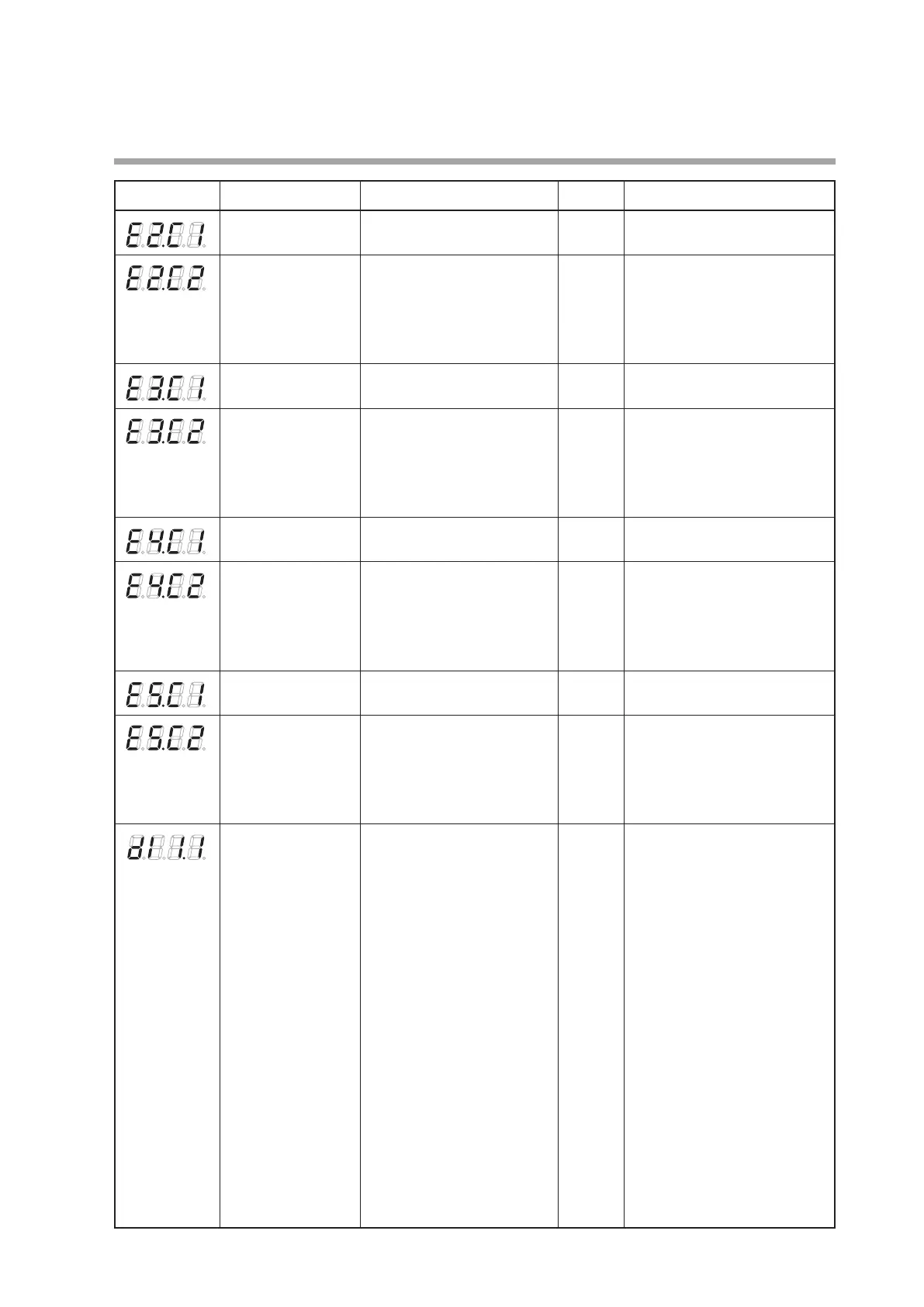

Chapter 7. LIST OF SIMPLE CONFIGURATION DISPLAY ITEMS
Display Item Contents Initial value Notes
Internal event 2
Configuration 1
Same as Internal event 1
configuration 1..
0
Internal event 2
Configuration 2
1st digit: Direct/Reverse
2nd digit: Standby
3rd digit:
Operation
at READY
4th dig
it: Undefined
Same as Internal event 1
configuration 2.
0000
Internal event 3
Configuration 1
Same as Internal event 1
configuration 1..
0
Internal event 3
Configuration 2
1st digit: Direct/Reverse
2nd digit: Standby
3rd digit:
Operation
at READY
4th dig
it: Undefined
Same as Internal event 1
configuration 2.
0000
Internal event 4
Configuration 1
Same as Internal event 1
configuration 1..
0
Internal event 4
Configuration 2
1st digit: Direct/Reverse
2nd digit: Standby
3rd digit:
Operation
at READY
4th dig
it: Undefined
Same as Internal event 1
configuration 2.
0000
Internal event 5
Configuration 1
Same as Internal event 1
configuration 1..
0
Internal event 5
Configuration 2
1st digit: Direct/Reverse
2nd digit: Standby
3rd digit:
Operation
at READY
4th dig
it: Undefined
Same as Internal event 1
configuration 2.
0000
Internal contact 1
Operation type
0: No function
1: LSP group selection (0/+1)
2: LSP group selection (0/+2)
3: LSP group selection (0/+4)
4: Invalid
5: Invalid
6: Invalid
7: RUN/READY selection
8: AUTO/MANUAL selection
9: Invalid
10: AT Stop/Start
11: ST disabled/enabled
12: Control action direct/reverse
selection
(As setting/opposite
operation of setting)
13: SP RAMP enabled/disabled
14: PV Hold (No-hold/Hold)
15: PV maximum value hold
(No-hold/Hold)
16: PV minimum value hold
(No-hold/Hold)
17: Timer Stop/Start
18: Release all DO latches
(Continue/Release)
19: Invalid
20: Invalid
0 For details, refer to the section,
Internal contact operation type
setup (p.5-40).
