Chapter 5. SETTINGS BEFORE STARTING OPERATION

Decimal point position setup
(1) In the operation display mode, keep the [para] key
pressed for 2 s or longer.
>> The unit then enters the parameter setting mode.
rdy
man
ev1 ev2 ev3 ot1 ot2
para
mode
pv
sp
(2) In the parameter setting display mode, keep the [para]
key pressed for 2 s or longer.
>> The display is then changed to the setup setting
display.
rdy
man
ev1 ev2 ev3 ot1 ot2
para
mode
pv
sp

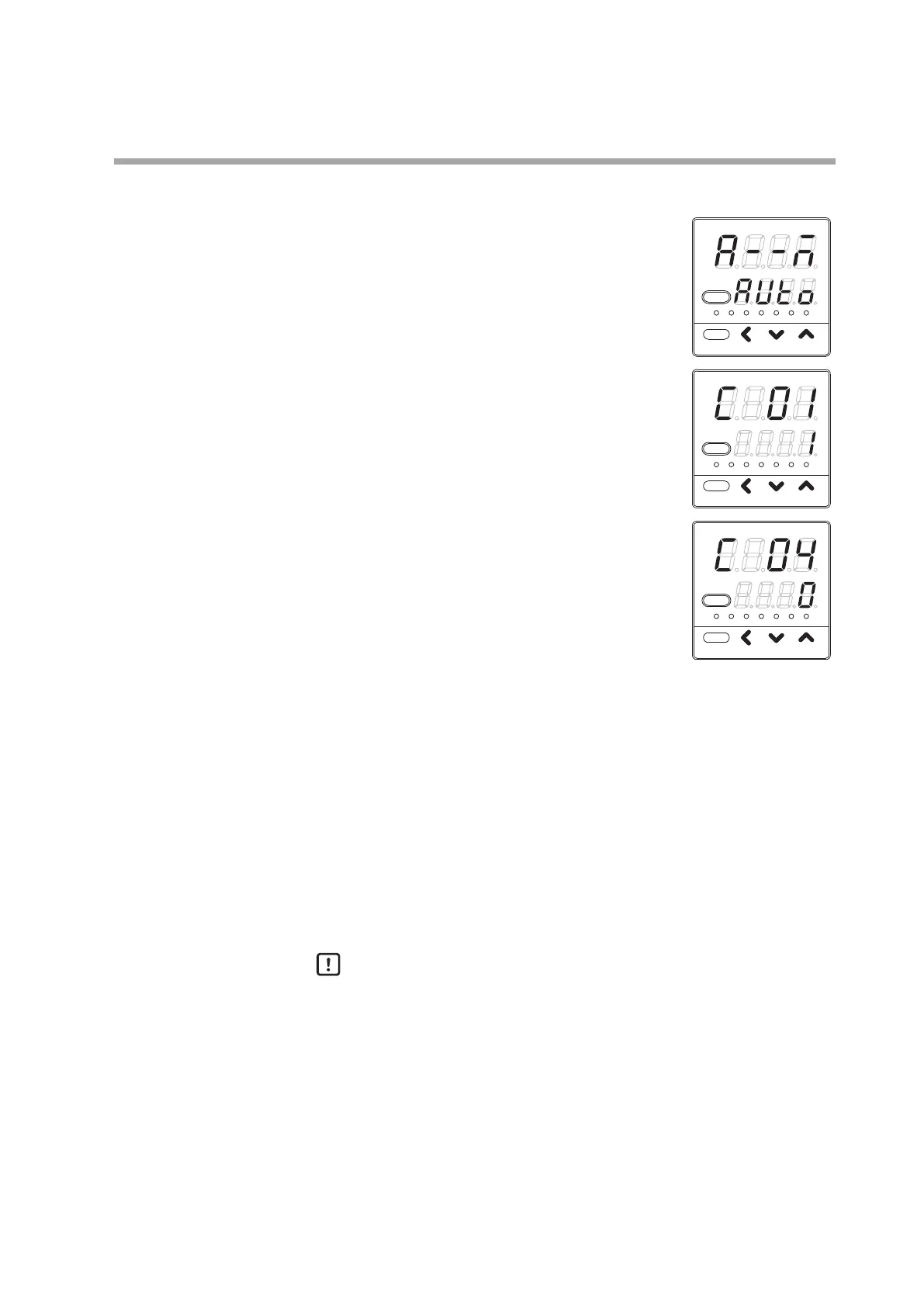

(3) Press the [para] key several times.
>> Display the setup setting [C04:Decimal point
position].
rdy
man
ev1 ev2 ev3 ot1 ot2
para
mode
pv
sp
(4) Press the [<], [
<
], or [
<
] key to set the value you have
selected from the following in [C04].
0: No decimal point
1: 1 digit after decimal point
2: 2 digits after decimal point
3: 3 digits after decimal point
>> When no keys are pressed for 2 s or longer, the flashing of the numeric
value is stopped to set the currently displayed value.
(5) Press the [mode] key.
>> The display is returned to the operation display.
Handling Precautions
[C04: Decimal point position] can be displayed only when the PV input of
the model is “L: DC current or DC voltage input” or
“T: Thermocouple”, “R: RTD”, and the range shown in the PV input range
table on page 5-3 has the decimal point.
