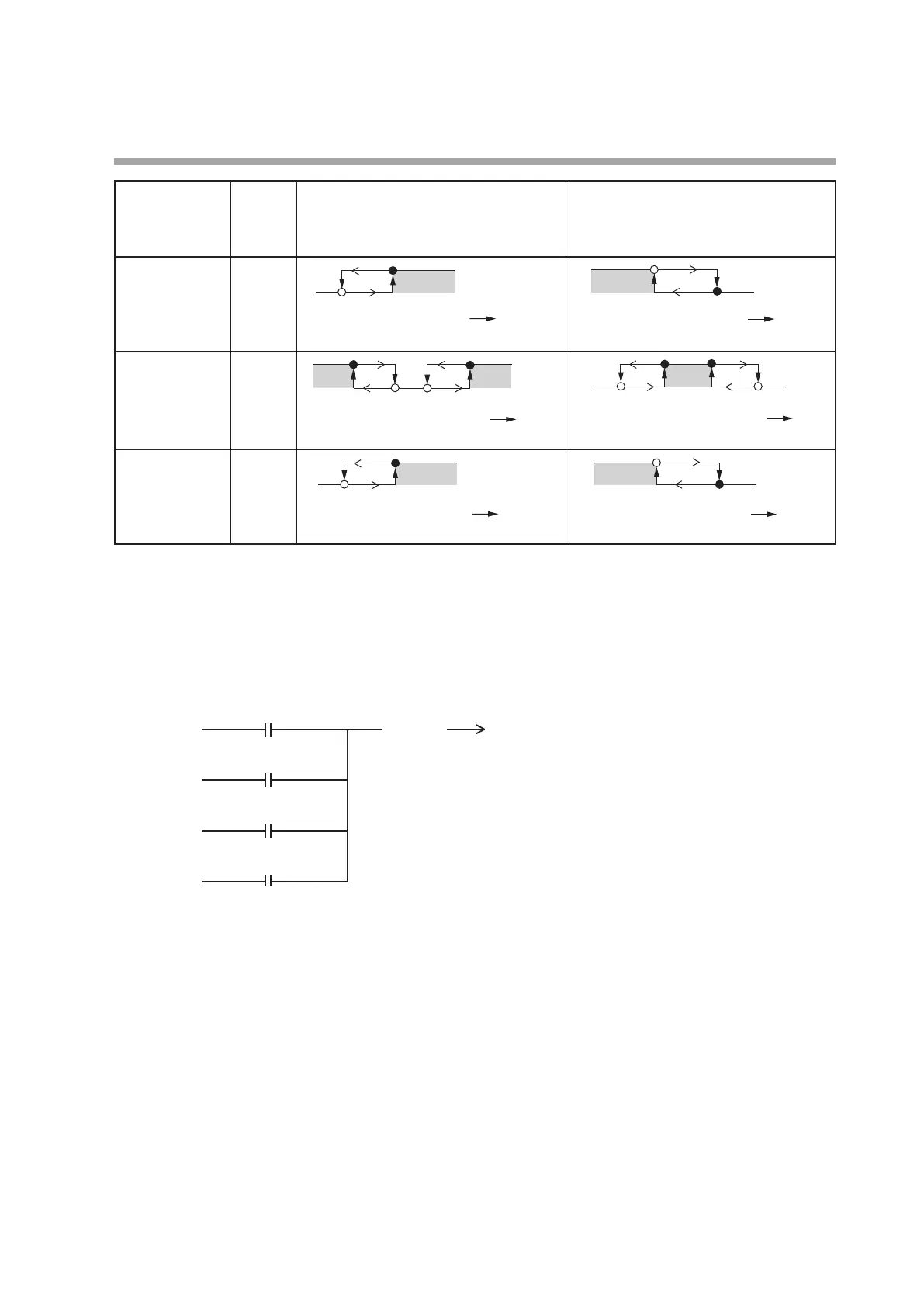

Chapter 5. SETTINGS BEFORE STARTING OPERATION
Operation type Set
value of
operation
type
Direct action
z
shows that the ON/OFF is changed at this value.
 shows that the ON/OFF is changed at a point
that "1U" is added to this value.
Reverse action
z
shows that the ON/OFF is changed at this value.
 shows that the ON/OFF is changed at a point
that "1U" is added to this value.
Heater 1
short-circuit*
17
ONHYS
ON
HYS
Main setting
Main setting
CT1 at output OFF. CT1 at output OFF.
OFF before measuring the CT1 current value OFF before measuring the CT1 current value
Heater 2 burnout/
Over-current*
18
Main setting
Sub-setting
CT2 at output ON. CT2 at output ON.
ON
HYS
ONHYS
ONHYS
HYS
Main setting
Sub-setting
OFF before measuring the CT2 current value OFF before measuring the CT2 current value
Heater 2
short-circuit*
19
ONHYS
ON
HYS
Main setting
Main setting
CT2 at output OFF. CT2 at output OFF.
OFF before measuring the CT2 current value OFF before measuring the CT2 current value
* When the event type is CT1/2 heater burnout/over-current or CT1/2 heater short-circuit, the status becomes that the
event judgment cannot be made from the time of power ON until that CT input current value is measured for the first
time. In this case, the internal event output is OFF for both of direct action and reverse action in the direct/reverse setting.
To avoid that the output becomes OFF at power ON when used in reverse action, set as follows:
(Setting example)
For direct/reverse setting of CT1/2 heater burnout/over-current or CT1/2 short-circuit event, select the direct action, and
set the reverse operation in DO assignment calculation of the event output terminal (event terminal or control output
terminal).
CT event(direct action)
[Reverse]
(DO output)
Normally open(0)
Normally open(0)
Normally open(0)
