5-19
Chapter 5. SETTINGS BEFORE STARTING OPERATION
Operation type Set value of
operation
type
Direct action Reverse action
READY
(status)
24 ON in the READY mode.
OFF in the RUN mode.
OFF in the READY mode.
ON in the RUN mode.
MANUAL
(status)
25 ON in the MANUAL mode.
OFF in the AUTO mode.
OFF in the MANUAL mode.
ON in the AUTO mode.
Invalid 26 Always OFF Always ON
During AT
(Status)
27 ON when AT is executed.
OFF when AT is stopped.
OFF when AT is executed.
ON when AT is stopped.
During SP ramp 28 ON during SP ramp.
OFF when SP ramp is not performed or is
completed.
OFF during SP ramp.
ON when SP ramp is not performed or is
completed.
Control action
(status)
29 ON during direct action (cooling).
OFF during reverse action (heating).
OFF during direct action (cooling).
ON during reverse action (heating).
ST setting standby
(status)
30 ON in the ST setting standby.
OFF in the ST setting completion.
OFF in the ST setting standby.
ON in the ST setting completion.
Invalid 31 Always OFF Always ON
Timer
(status)
32 The direct and reverse action settings are disabled for the timer event.
When using the timer event, it is necessary to set the operation type of the DI allocation
to "Timer Start/Stop". Additionally, when setting the event channel designation of the DI
allocation, multiple timer events are controlled from individual internal contacts (DI).
z Setting items
• ON delay time: A period of time necessary to change the event from OFF to ON after
DI has been changed from OFF to ON.
• OFF delay time: A period of time necessary to change the event from ON to OFF after
DI has been changed from ON to OFF.
z Operation specifications
• The event is turned ON when DI ON continues for ON delay time or longer.
• The event is turned OFF when DI OFF continues for OFF delay time.
• In other cases, the current status is continued.

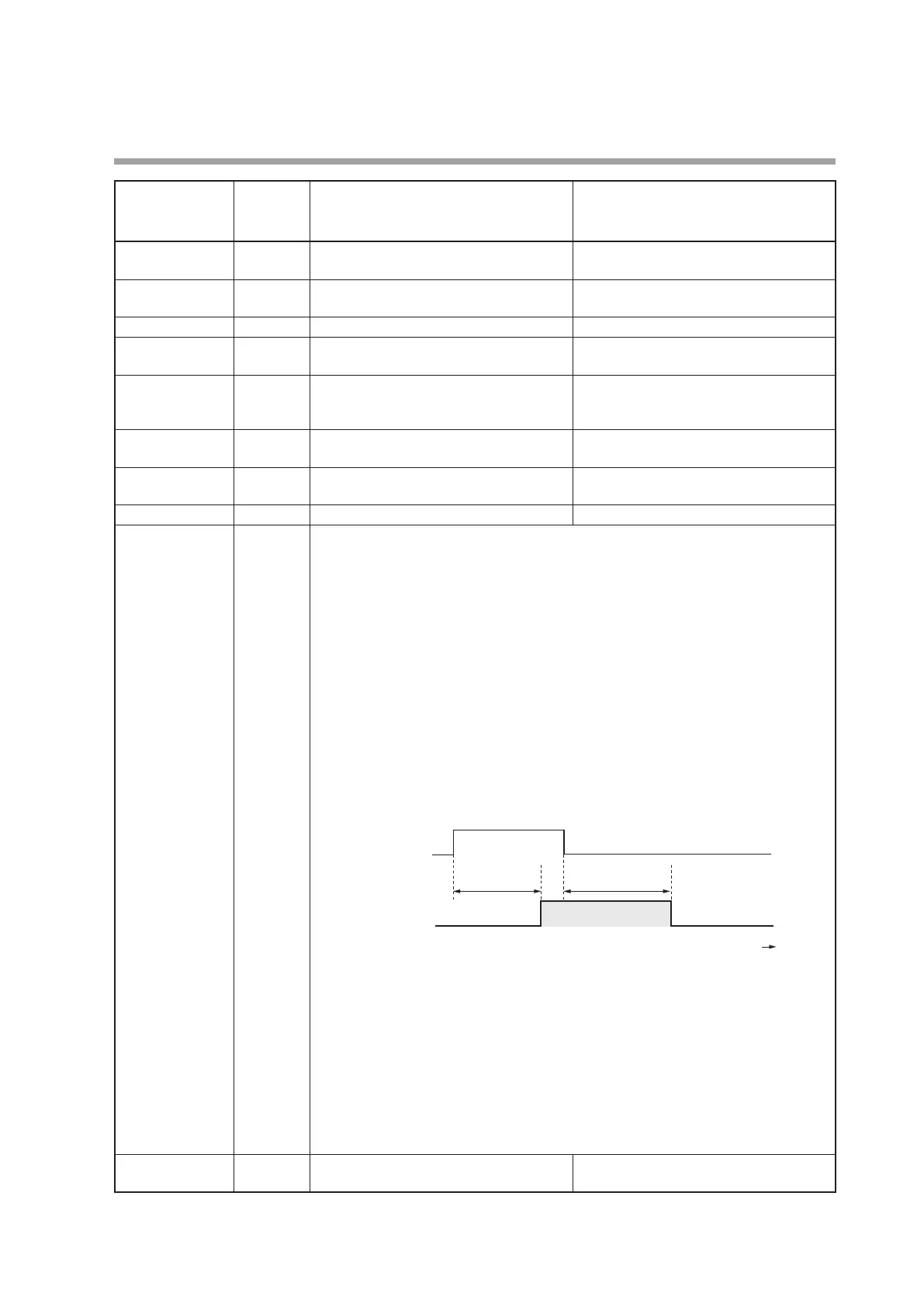

Time
ON
Internal event
ONDI
OFF delayON delay
z CAUTION
When setting the ON delay and OFF delay, it is necessary to put in "High function
configuration".
The default settings of the ON delay and OFF delay before shipment are 0.0s.
The default setting of the event channel designation of the DI allocation before
shipment is "0". In this case, the timer event start/stop can be set for all internal events
from one internal contact (DI).
Additionally, as one or more event channel designation is set, the timer event start/
stop can be set for one internal event specified by one internal contact (DI).
However, when setting the event channel of the DI allocation, it is necessary to put in
"High function configuration".
High and low lmits
of MFB value
33 Invalid in this unit.
ON/OFF status is undetermined.
Invalid in this unit.
ON/OFF status is undetermined.
