Azbil C15 User Manual

5-20
Chapter 5. SETTINGS BEFORE STARTING OPERATION

Event operation type setup

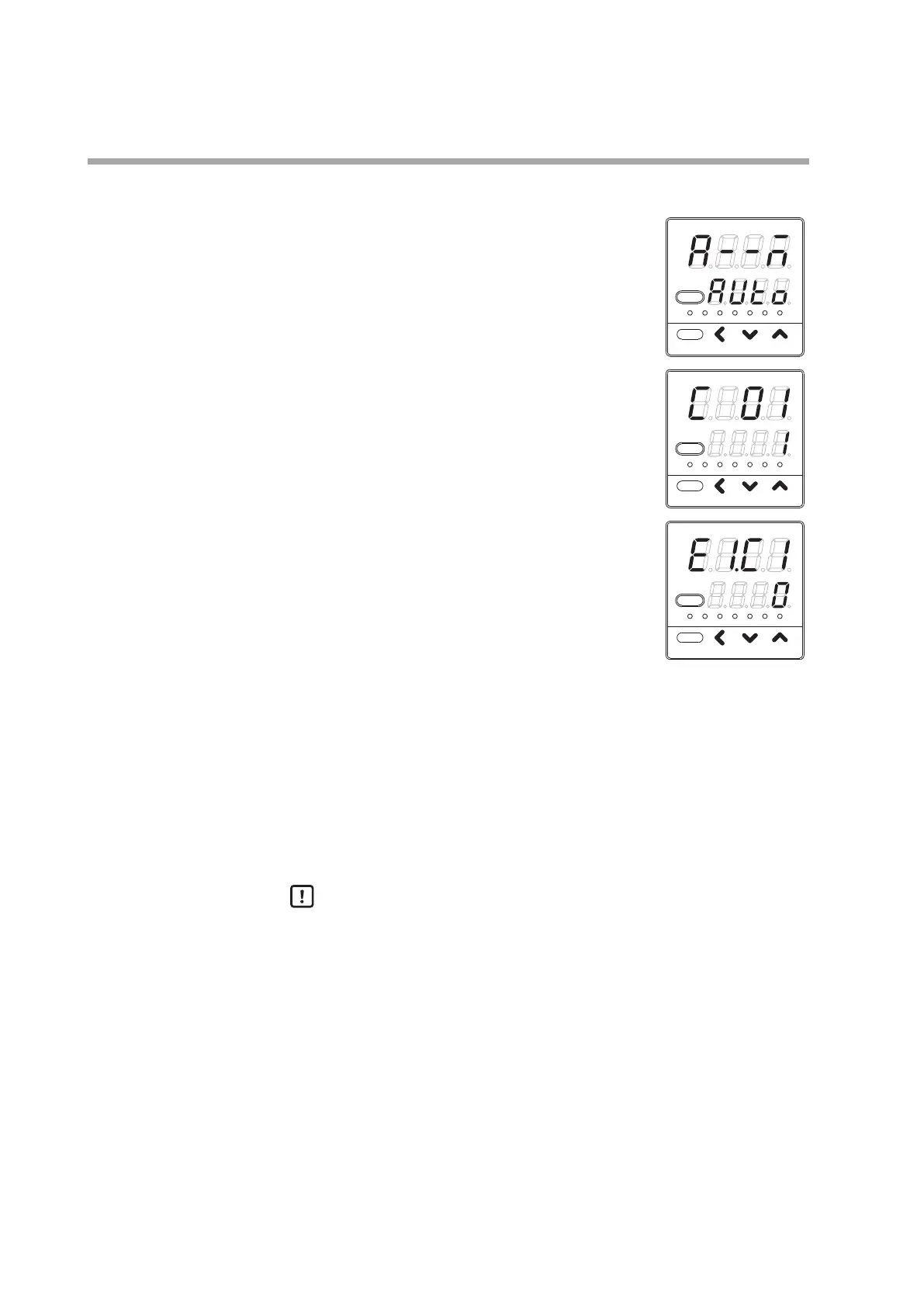

(1) In the operation display mode, keep the [para] key
pressed for 2 s or longer.
>> The unit then enters the parameter setting mode.
rdy
man
ev1 ev2 ev3 ot1 ot2
para
mode
pv
sp
(2) In the parameter setting display mode, keep the [para]
key pressed for 2 s or longer.
>> The display is then changed to the setup setting
display.
rdy
man
ev1 ev2 ev3 ot1 ot2
para
mode
pv
sp
(3) Press the [para] key several times.
>> Display the setup setting [E1.C1: Internal Event 1
configuration].
rdy
man
ev1 ev2 ev3 ot1 ot2
para
mode
pv
sp
(4) Press the [<], [
<
], or [
<
] key to change the set value in
[E1.C1].
Setting range: 0 to 33
>> When no keys are pressed for 2 s or longer, the flashing of the numeric
value is stopped to set the currently displayed value.
(5) Press the [mode] key.
>> The display is returned to the operation display.
Handling Precautions
• The displays of internal event 2 to 5 operation types are [E2.C1], [E3.C1],
[E4.C1], and [E5.C1].
• Five internal events 1 to 5 are provided. However, the number of event
outputs determined by the optional function is 0 to 3 points. In "Simple
configuration", the operation of internal events 1 to 3 are output to event
outputs 1 to 3. To use the operation of the internal events 4 to 5, the
setup mode is changed to "High function configuration", and then [DO
assignment] must be set.
