5-21
Chapter 5. SETTINGS BEFORE STARTING OPERATION
Event Direct/Reverse, standby, and Event state at READY setup

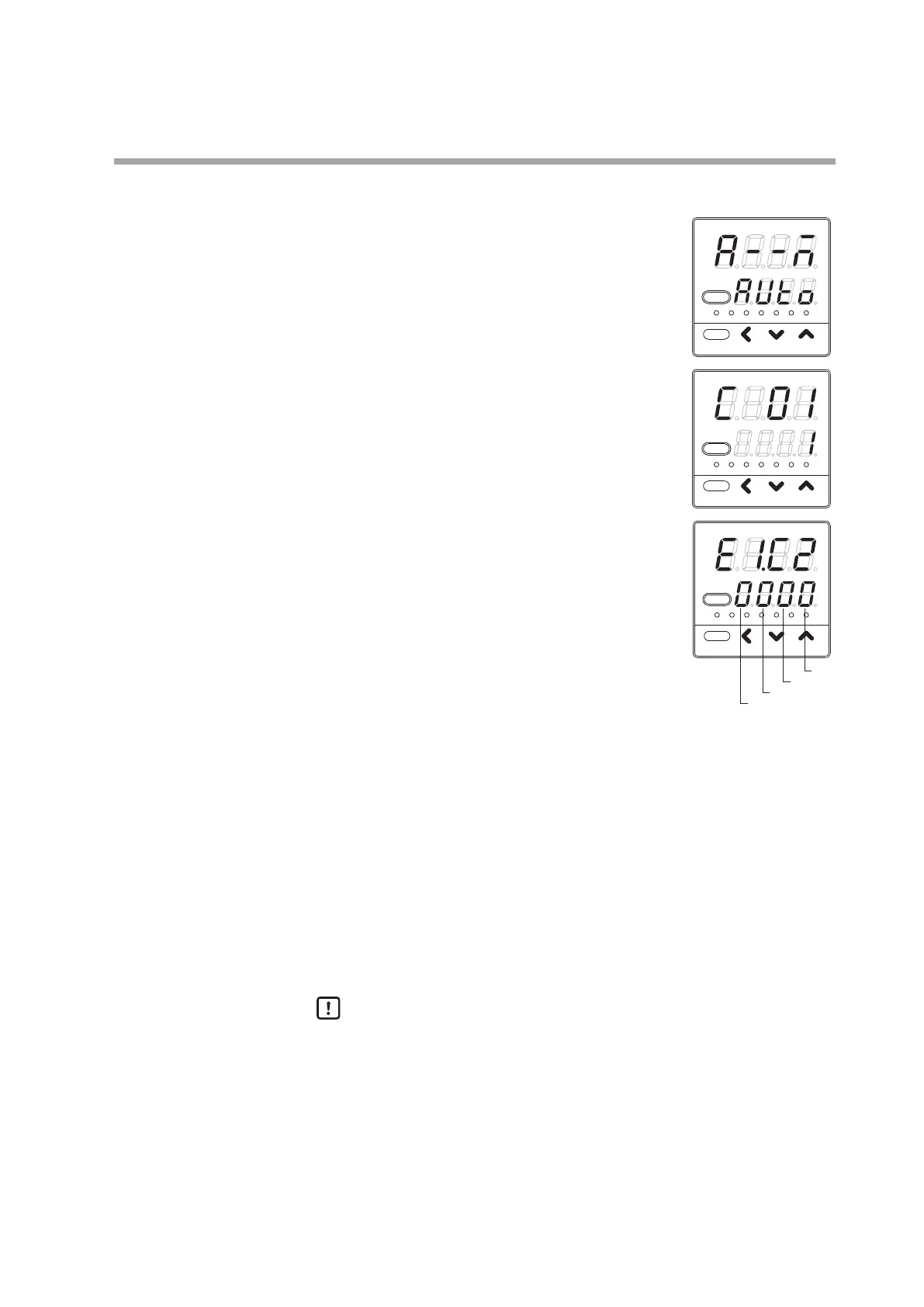

(1) In the operation display mode, keep the [para] key
pressed for 2 s or longer.
>>
The unit then enters the parameter setting mode.
rdy
man
ev1 ev2 ev3 ot1 ot2
para
mode
pv
sp
(2) In the parameter setting display mode, keep the [para]
key pressed for 2 s or longer.
>>
The display is then changed to the setup setting
display.
rdy
man
ev1 ev2 ev3 ot1 ot2
para
mode
pv
sp
(3) Press the [para] key several times.
>>
Display the setup setting [E1.C2:Internal Event 1
Configuration 2].
rdy
man
ev1 ev2 ev3 ot1 ot2
para
mode
pv
sp
1st digit
2nd digit
3rd digit
4th digit
(4) Press the [<], [
], or [
] key to set the value you have
selected from the following in [E1.C1].
1st digit Reverse
0: Not reversed.
1: Reversed.
2nd digit Standby
0: Standby not provided
1: Standby provided
2: Standby + Standby at SP change
3rd digit Event state at READY
0: Continue
1: Forced OFF
4th digit Undefined
>>
When no keys are pressed for 2 s or longer, the flashing of the numeric
value is stopped to set the currently displayed value.
(5) Press the [mode] key.
>>
The display is returned to the operation display.
Handling Precautions
• The standby is a function that disables to turn ON the event even though
the event in operation satisfies the ON conditions (before reverse) when
the instrument power is turned ON or when the mode is changed from
READY to RUN. The event is turned ON when the OFF conditions are
satisfied once, and then the ON conditions are satisfied again.
• The standby + standby at SP change means that the standby is set again if the
SP (SP value or SP group No.) is changed in addition to the normal standby.
• The internal event 2 to 5 direct/reverse, standby, and Event state at
READY displays are [E2.C2], [E3.C2], [E4.C2], and [E5.C2].
• When the internal event operation type is [0: No event], the internal event
direct/reverse is not displayed.
