CAUTION: The analyzer contains strong magnets which may damage other
instruments. KEEP AWAY from products which could be damaged by magnetic
elds (e.g. monitors, computers, heart pacemakers, credit cards).

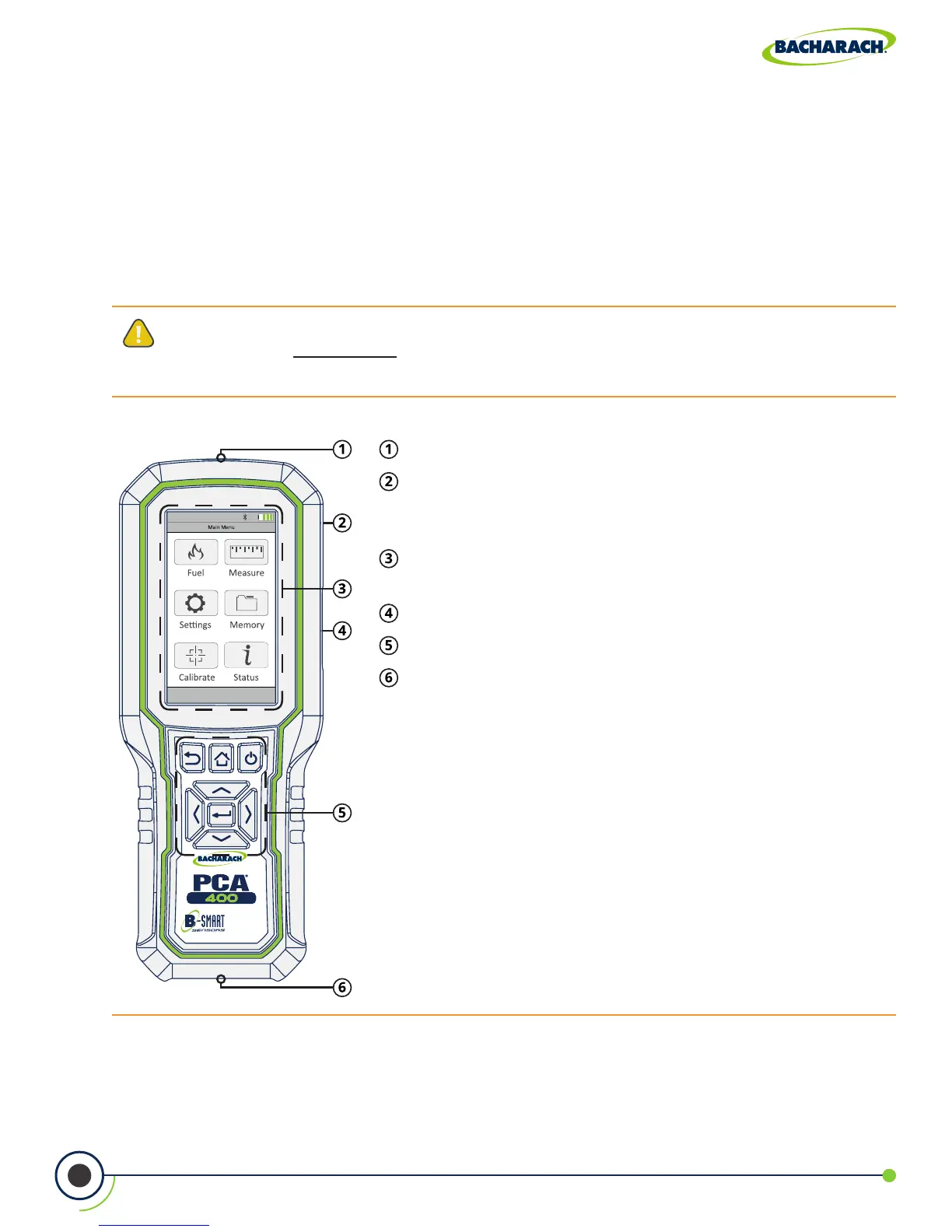

Fig. 2-2: Combustion & Emissions Analyzer
Infrared Printer Interface (top)
Integrated Magnetic Boot (rear) - High impact ABS
plastic with molded-in magnets protects the analyzer
and allows for hands-free use .
LCD Touch Display - 4.3" full color, backlit liquid-crystal
display with resistive touch panel.
Interfaces: USB, T-Air (side)
Tactile Keypad
Instrument Connections (bottom)
2.1 Combustion & Emissions Analyzer
The PCA
®
400 is designed for use in commercial and light industrial applications.
The analyzer is capable of measuring O
2
, CO, NO, NO
2
or SO
2
, stack / ambient
temperatures, and pressure. The PCA
®
400 also calculates CO
2
, NO
x
, combustion
eciency and excess air.
2.1.1 Overview
