Bacharach PCA 400 - Additional Settings

0024-9551 Revision 1
25
PCA
®
400 User Manual
CO (ppm)O
2
(
%
)
0
500
Time (min
)1
0
21
Time (min
)1
Combustion Test
OIL2
Acme Powerplant
Combustion Test
NGAS
Acme Powerplant
T-Air
79.3
°F
T-Stk
374
°F
CO
2
9.5
%
O
2
4.0
%
Eff
82.9
%
CO
140
ppm
EA
21.4
%
Combustion Test
NGAS
Acme Powerplant

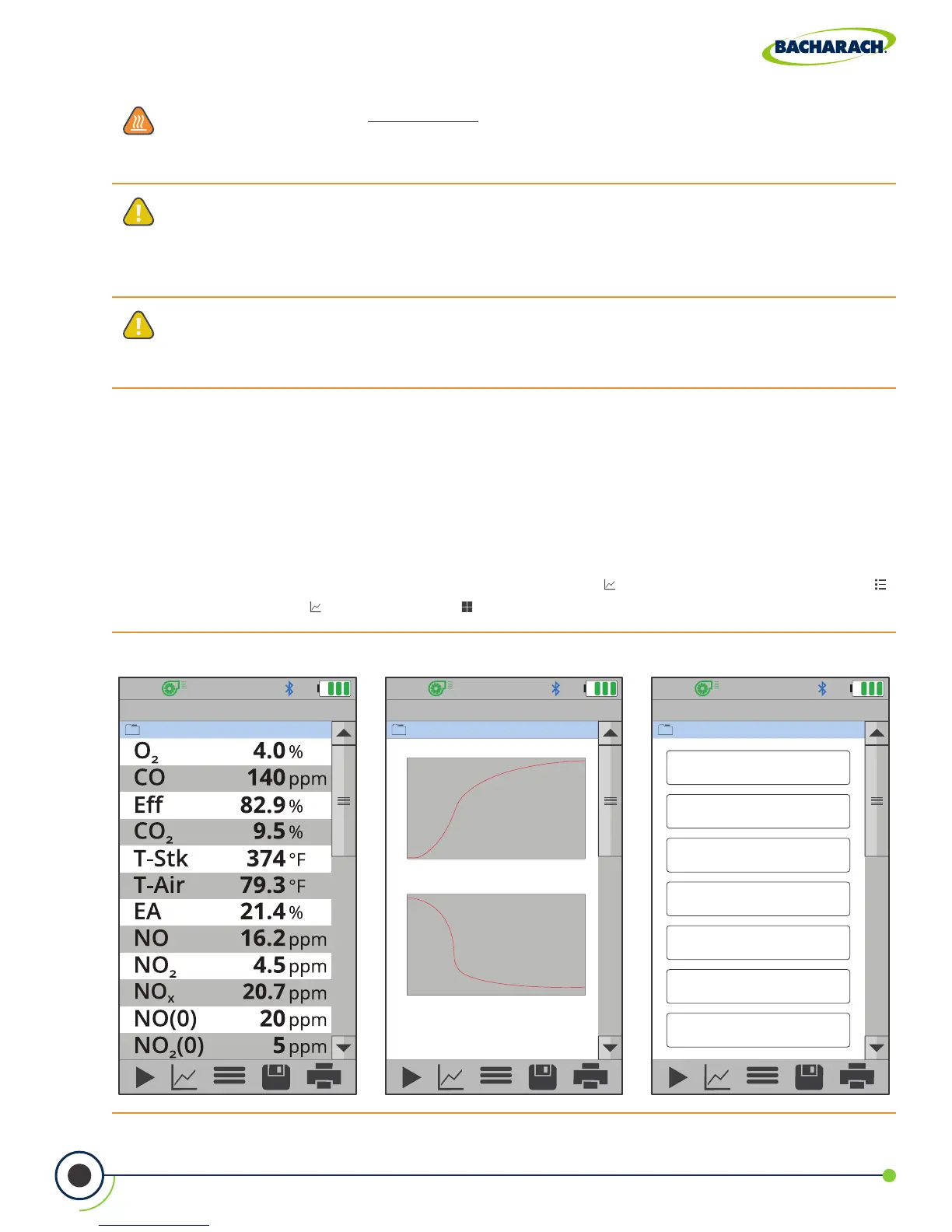

Fig. 3-8: Table / List, Line Graph and Tile Formats
CAUTION: Never disconnect the probe from the instrument until purging is
complete. Otherwise, leftover target gas (for example, CO) may remain in the
probe and cause inaccurate zeroing at power up that could lead to inaccurate gas
measurements afterwards.
CAUTION: The probe and sample line may become dirty during normal use and
should be cleaned regularly to ensure proper function. See Cleaning the Probe
Assembly (Section 5.3) for more information.
CAUTION: The probe MAY BE HOT after analysis and can cause bodily harm and /
or damage to the analyzer. Allow the probe sucient time (about 5-minutes) to cool
before handling or storing in the supplied carrying case.
3.2.3 Additional Settings
Data Display Options
Data can be viewed in list (text), tile and trending formats allowing users to easily analyze
their combustion analysis results. Users can further customize the PCA
®
400 to show all the
parameters in the order they prefer.
f To toggle between Display Options: Display Options ( )  select Table / List Format ( ),
Line Graph Format ( ) or Tile Format ( )
