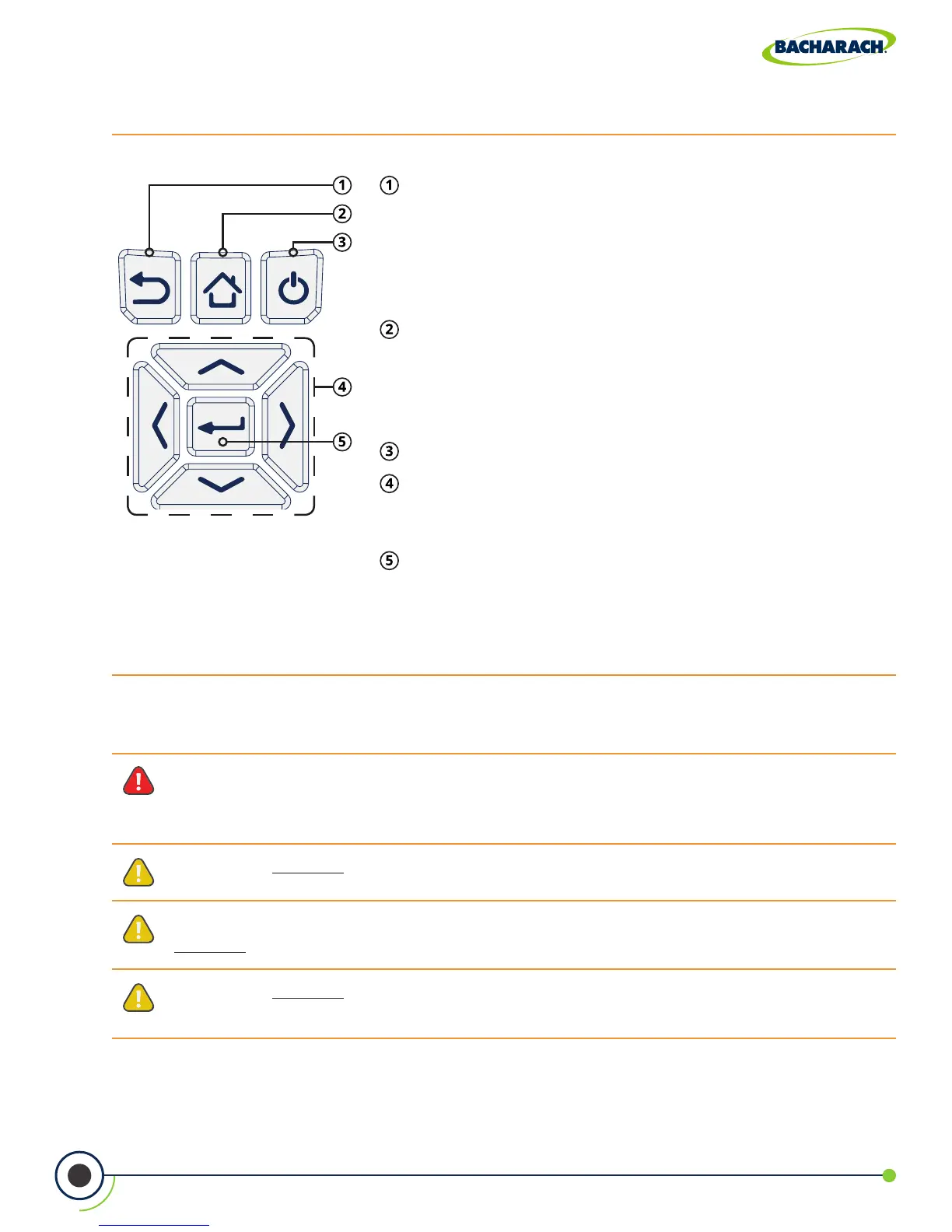

Fig. 2-3: Navigation Keypad
Back Key - Displays the previously viewed screen. In
addition, if changes have been made to one of the
analyzer’s operating parameters (e.g., date, time, O
2
reference, etc.), pressing this button aborts any changes,
restores the old values and displays the previously
viewed screen.
Home Key - Displays the Main Menu. In addition, if
changes have been made to one of the analyzer’s
operating parameters (e.g., date, time, O
2
reference, etc.),
pressing this button aborts any changes, restores the
old values and displays the Main Menu.
Power Key - Turns the analyzer ON and OFF.
Navigation Keys - Move the cursor on the display. When
viewing a directory, use the buttons to open and
close sub-directories.
Enter Key - Selects a highlighted item. In addition,
if changes have been made to one of the analyzer’s
operating parameter (e.g., date, time, O
2
reference, etc.),
pressing this button conrms those changes and saves
them in memory.
CAUTION: DO NOT subject display to excessive shock.
CAUTION: Periodic cleaning with a lightly moistened soft cloth is recommended.
DO NOT wipe display with a dry cloth, as it may scratch the surface.
CAUTION: DO NOT use organic solvents or detergents to clean the display, as they
may cause damage to the screen.
DANGER: Display contains liquid crystal which is poisonous. If liquid crystal comes
in contact with skin, wash immediately with soap and water. If ingested, immediately
contact the local poison control center.
