Bacharach PCA 400 - Replacing the Filter Element

0024-9551 Revision 1
43
PCA
®
400 User Manual
IMPORTANT: When disassembling the Water Trap, care should be taken to ensure
that the o-ring does not dislodge from the Water Trap Chamber.

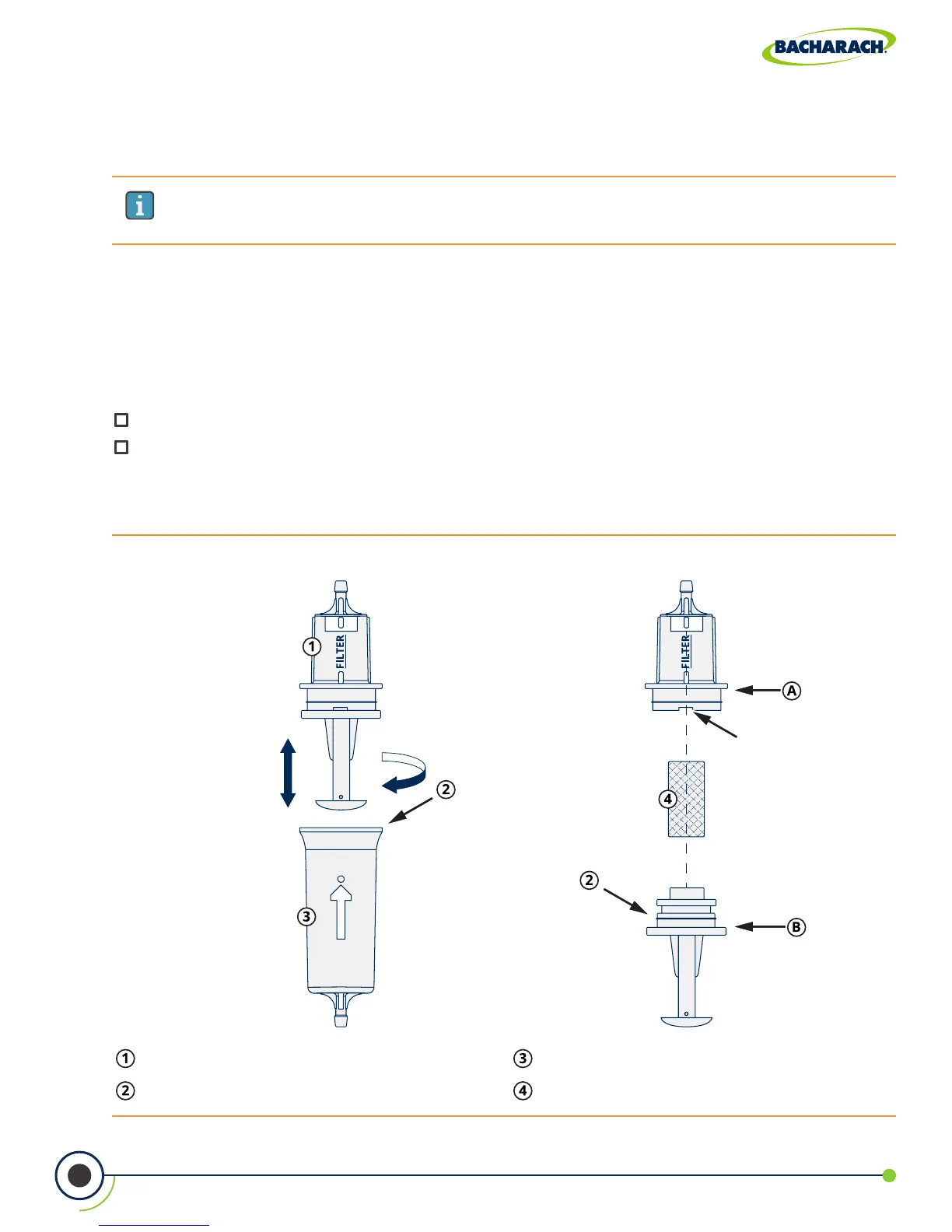

Fig. 5-2: Disassembling the Water Trap / Filter Assembly
Filter Chamber
O-Ring
Water Trap Chamber
Water Trap Filter
Pry apart lter
chamber with a
small at-blade
screwdriver inserted
into notch.
Twist in a
counterclockwise
fashion and pull
apart.
5.2 Replacing the Filter Element
Replace the lter element when it becomes visibly dirty or becomes saturated with water.
Materials / Equipment Required
Before cleaning the probe assembly, obtain the following items:

 Water Trap Filter (P/N: 0007-1644)

 Small Flat-blade Screwdriver
1. Remove Water Trap Chamber
Pull apart the two halves of the Water Trap using a slight twisting motion.
2. Pour Condensate & Reassemble Water Trap
Remove liquid condensate from the reservoir and reassemble the Water Trap by rmly
pressing the bayonet connections into place and twisting in a clockwise fashion.
