Section
3–14
MN1229
Electronic Handwheel Continued
Cable Connection
1. Differential Connections Only
Connect the cable Braided Shield to DBSC control connector X9-13.
Signal Name X9 Connector
Channel A
X9-1 (A)
Channel A
X9-6 (A)
Channel B
X9-2 (B)
Channel B
X9-7 (B)
Channel C
X9-3 C
Channel C
X9-8 C
Encoder Supply +5VDC X9-11
Ground Return X9-13
2. Single Ended Connections Only
Differential inputs are recommended for best noise immunity. If only single
ended encoder signals are available, connect them to A, B, and C
(X9-1, X9-2 and X9-3 respectively).

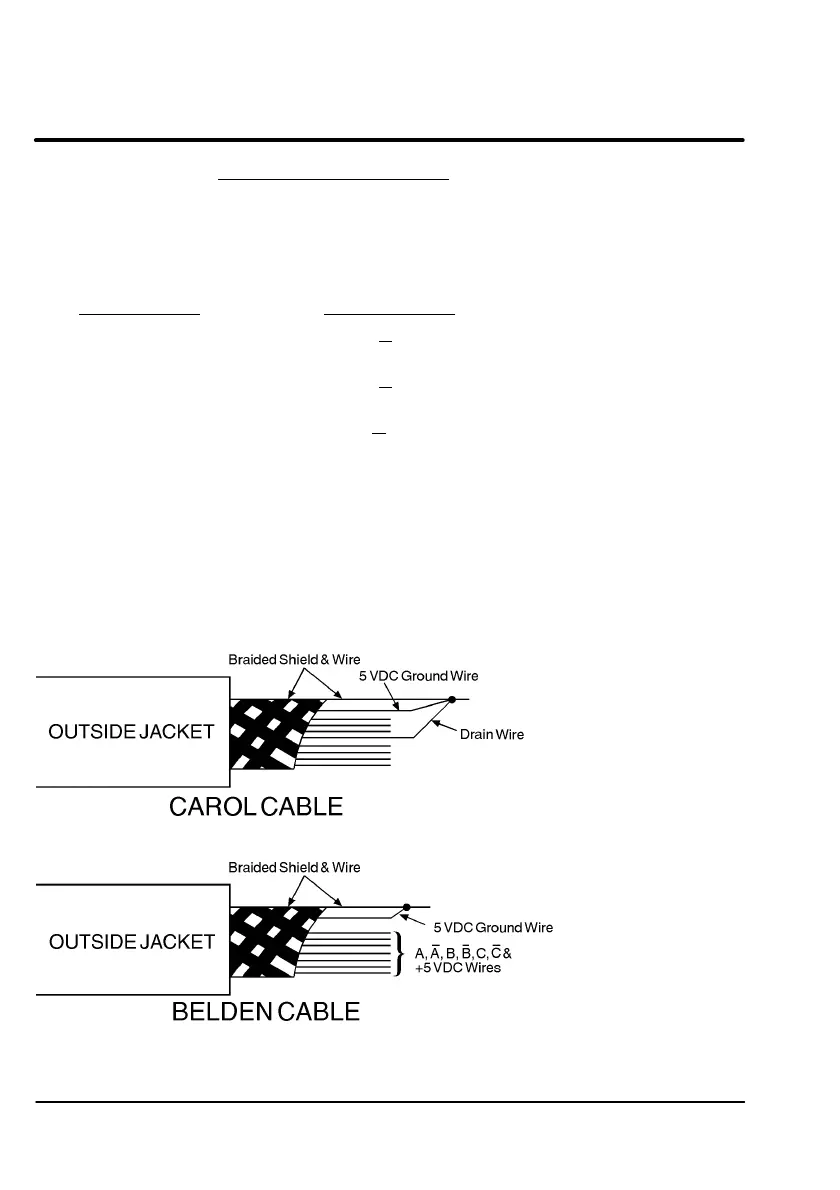

Figure 3-10 Encoder Cables
X9-13
X9-13
Electronic Handwheel Continued
Cable Connection
1. Differential Connections Only
Connect the cable Braided Shield to DBSC control connector X9-13.
Signal Name
Channel A
Channel A
Channel B
Channel B
Channel C
Channel C
Encoder Supply +5VDC
Ground Return
X9 Connector
X9-1 (A)
X9-6 (A)
X9-2 (B)
X9-7 (B)
X9-3 C
X9-8 C
X9-11
X9-13
2. Single Ended Connections Only
Differential inputs are recommended for best noise immunity. If only single
ended encoder signals are available, connect them to A, B, and C
(X9-1, X9-2 and X9-3 respectively).
Figure 3-10 Encoder Cables
Braided Shield & Wire
5 VDC Ground Wire
• # X9-13
OUTSIDE JACKET •• •• Drain Wire
CAROL CABLE
Braided Shield & Wire
OUTSIDE JACKET
BELDEN CABLE
X9-13
5 VDC Ground Wire
IA, A, B,
+5 VDC Wires
3-14 MN1229
